Product description

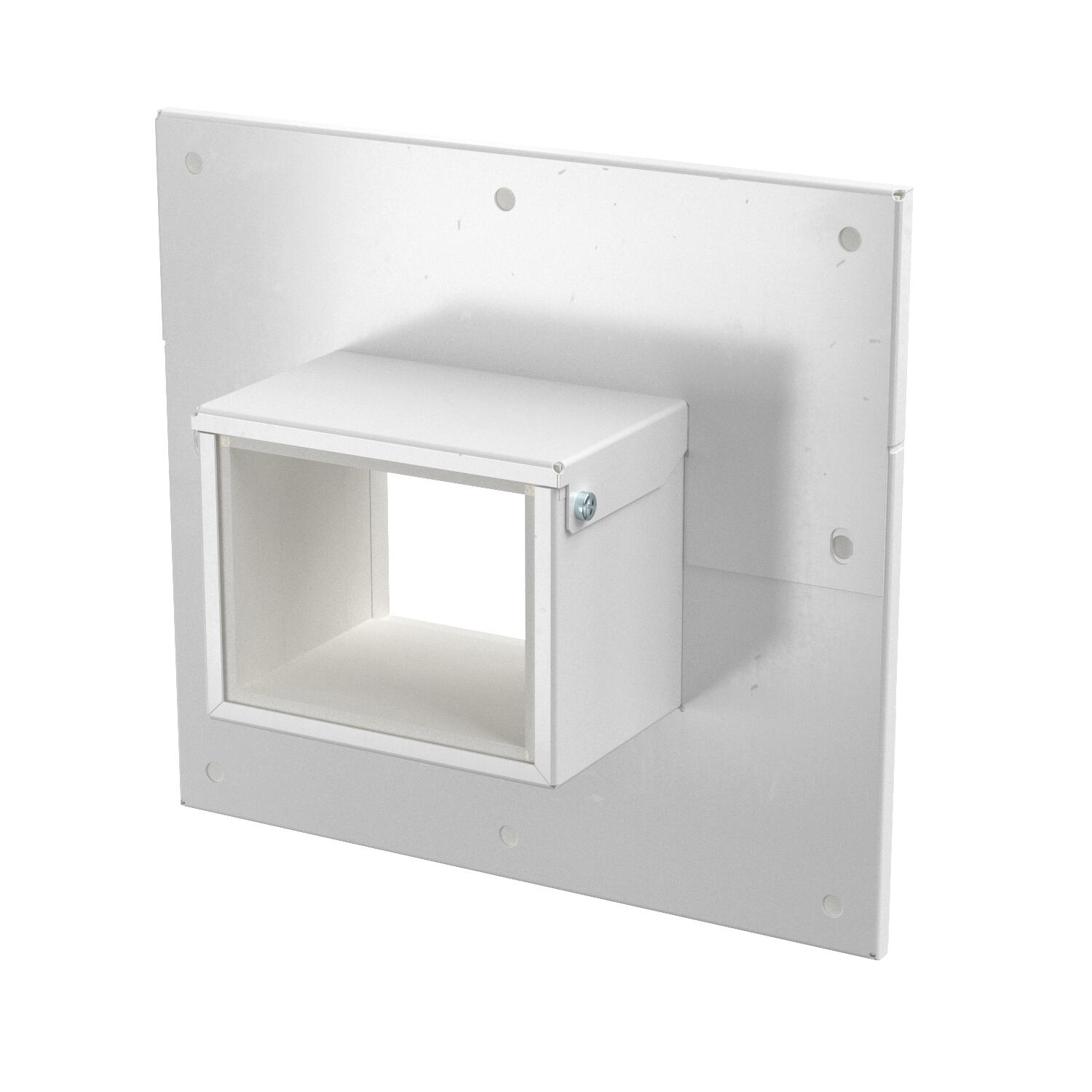

Wall connection collar, 4-sided, with integrated seal for PYROLINE® Rapid PLM installation duct. For mounting in the area of wall and ceiling connections as well as wall penetrations. Can also be used as 3-sided wall connection collar for direct wall or ceiling mounting of the duct.
- Technical data
-
Technical data

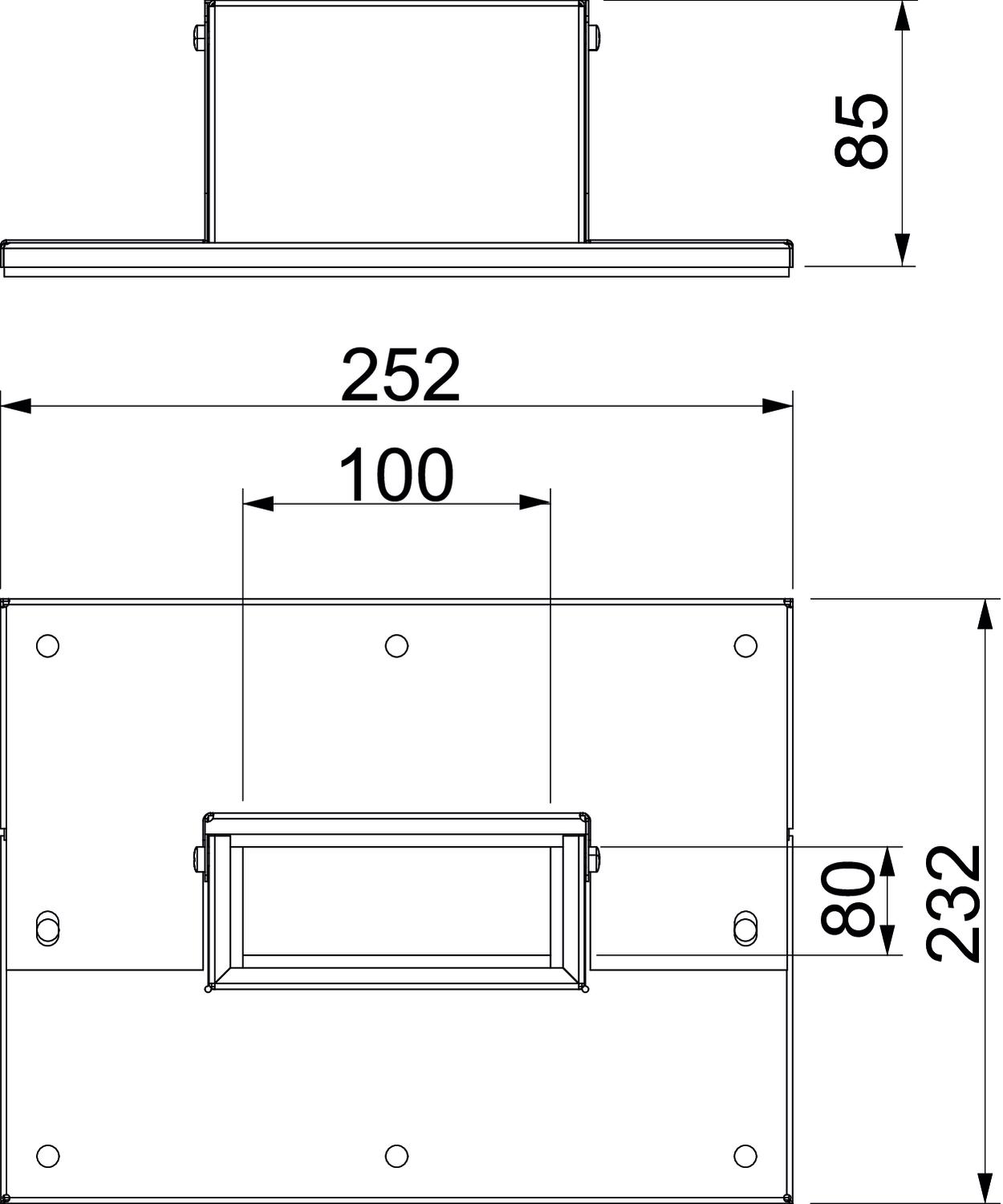

Accessories yes Colour Pure white; RAL 9010 Dimension 85x253x233 Dimension B 252 mm Dimension b 100 mm Dimension d 80 mm Dimension D 232 mm Material Steel Spare part no Surface Powder-coated Type of accessory Wall connection collar - All types
- Downloads
-
Data sheet PLM WC 0810 RW / 7218128 , 0.16MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfDeclaration of conformity PLM WC 0810 RW / 7218128 , 0.11MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdf
