- Product description
-

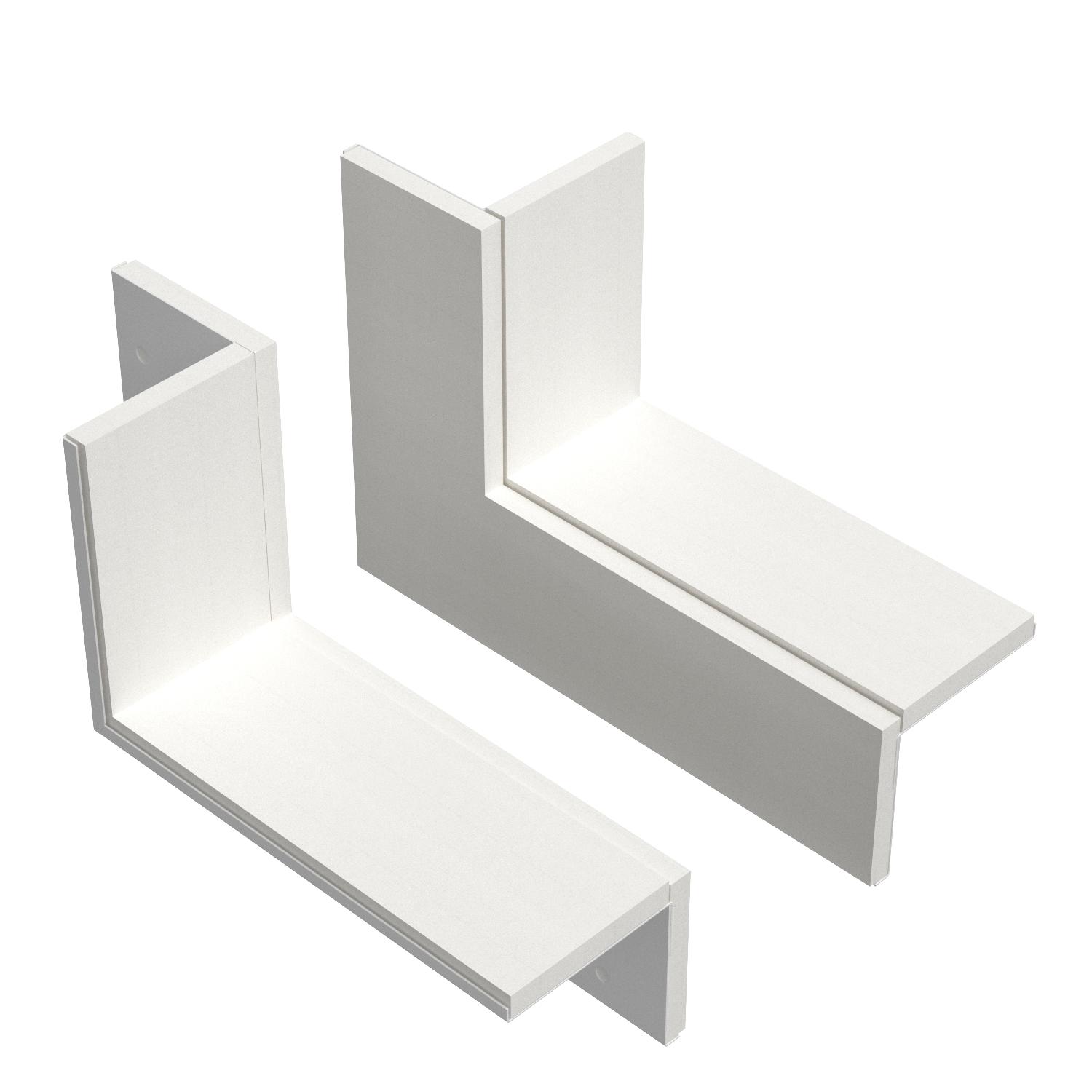

Product descriptionWall connection collar, 2-sided, with integrated seal for PYROLINE® Rapid PLM installation duct. For mounting in the area of wall and ceiling connections as well as wall penetrations in room corners. Set consisting of 2 opposing components, suitable for ceiling or wall mounting of the installation duct.
- Technical data
-
Technical data

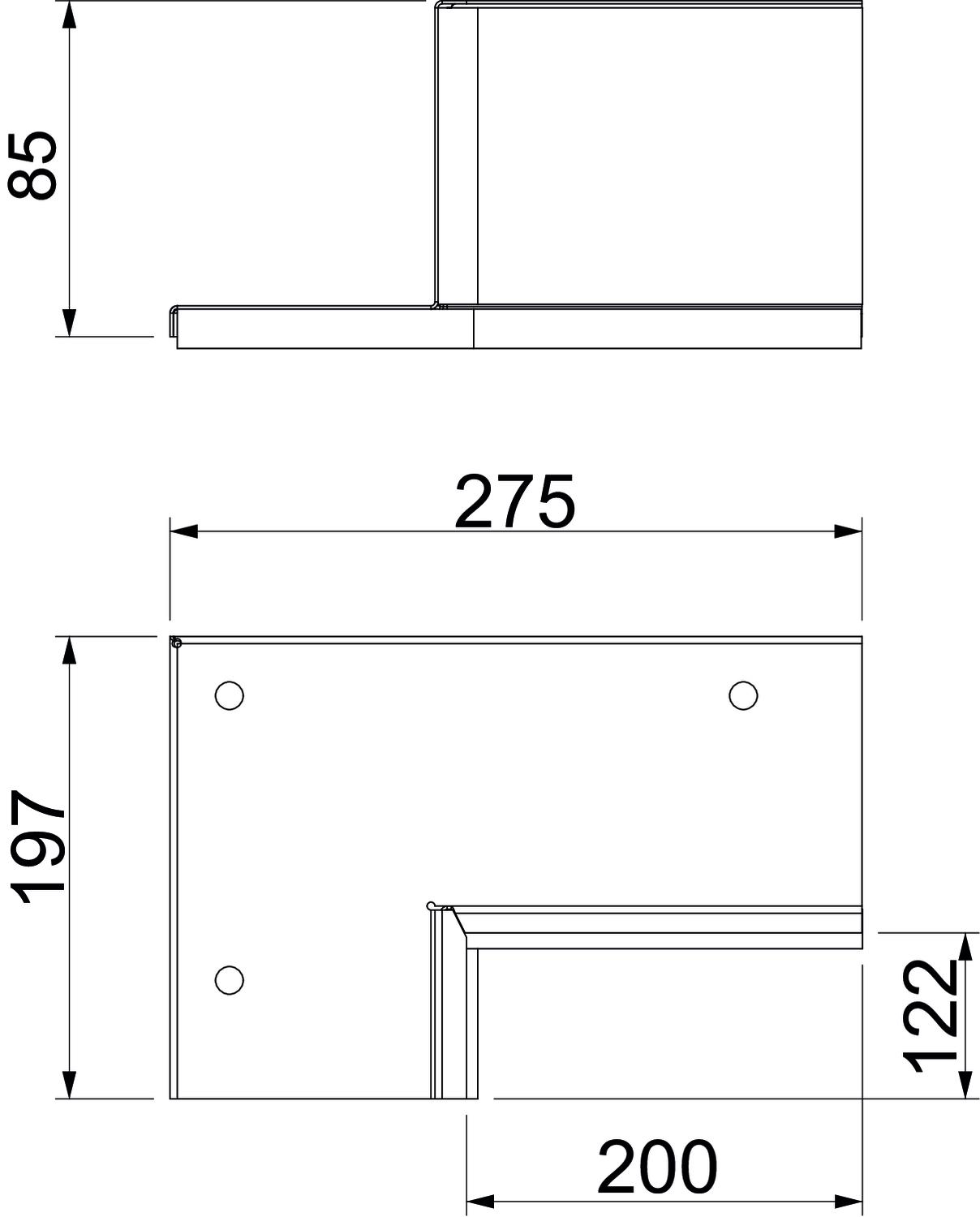

Accessories yes Colour Pure white; RAL 9010 Dimension 85x275x197 Dimension B 275 mm Dimension b 200 mm Dimension d 122 mm Dimension H 197 mm Material Steel Spare part no Surface Powder-coated Type of accessory Wall connection collar - All types
- Downloads
-
Data sheet PLM CC 1220 RW / 7218144 , 0.18MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfEU declaration of conformity PLM CC 1220 RW / 7218144 , 0.11MB , pdfDeclaration of performance PLM CC 1220 RW / 7218144 , 0.78MB , pdfApproval certificate Fire protection ducts PYROLINE® Rapid PLM , 2.15MB , pdf
