Wall end piece, open, plastic 70110 178 | 104 | Pure white; RAL 9010
morepic-1 morepic-2 video-1

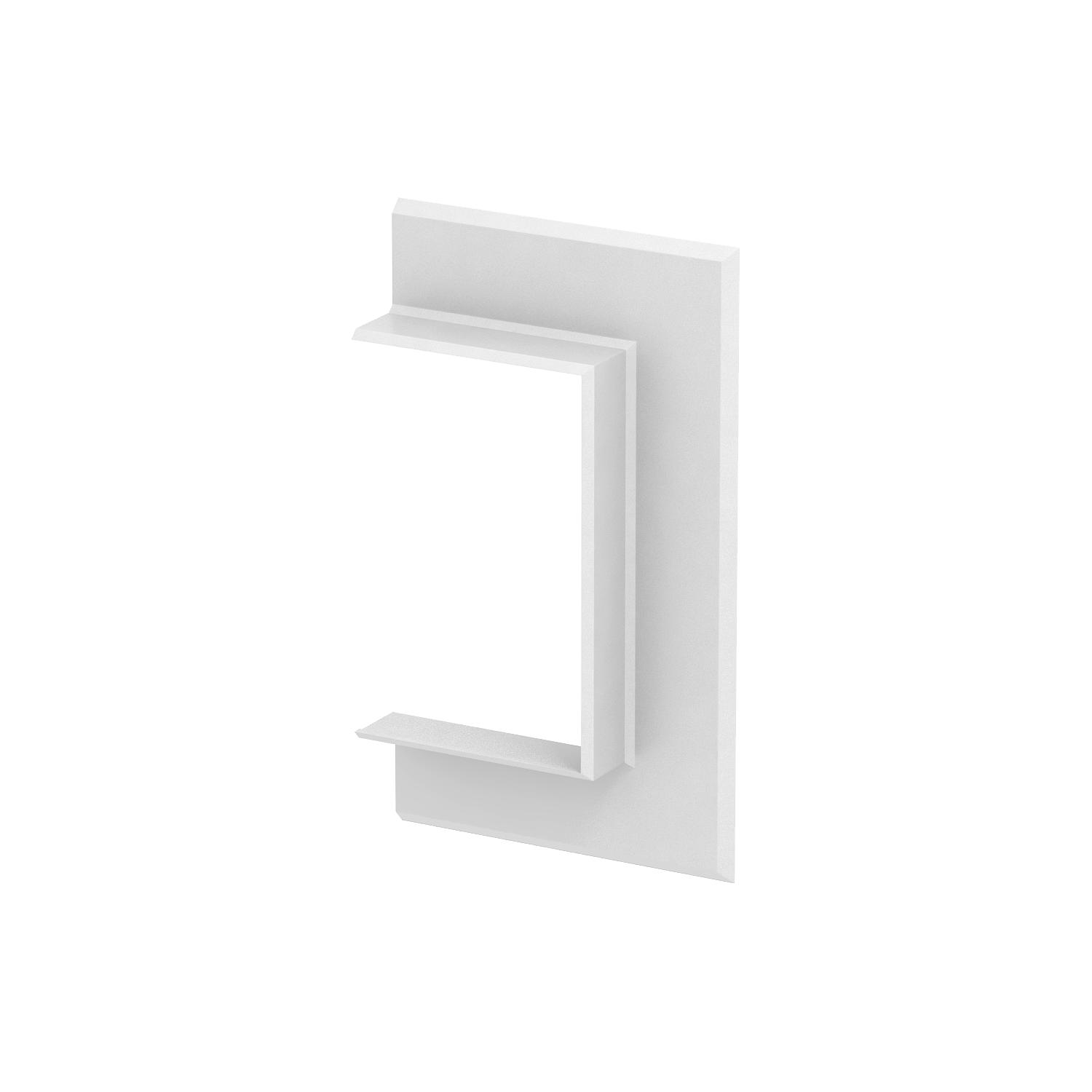

Wall end piece, open, plastic 70110

Item no. 6274810 | EAN 4012195657408

6274810 / G-KWAO70110RW
178 mm
104 mm
Pure white; RAL 9010
Product description
Product description
Wall cover, open, to close wall penetrations during wall mounting.


  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010

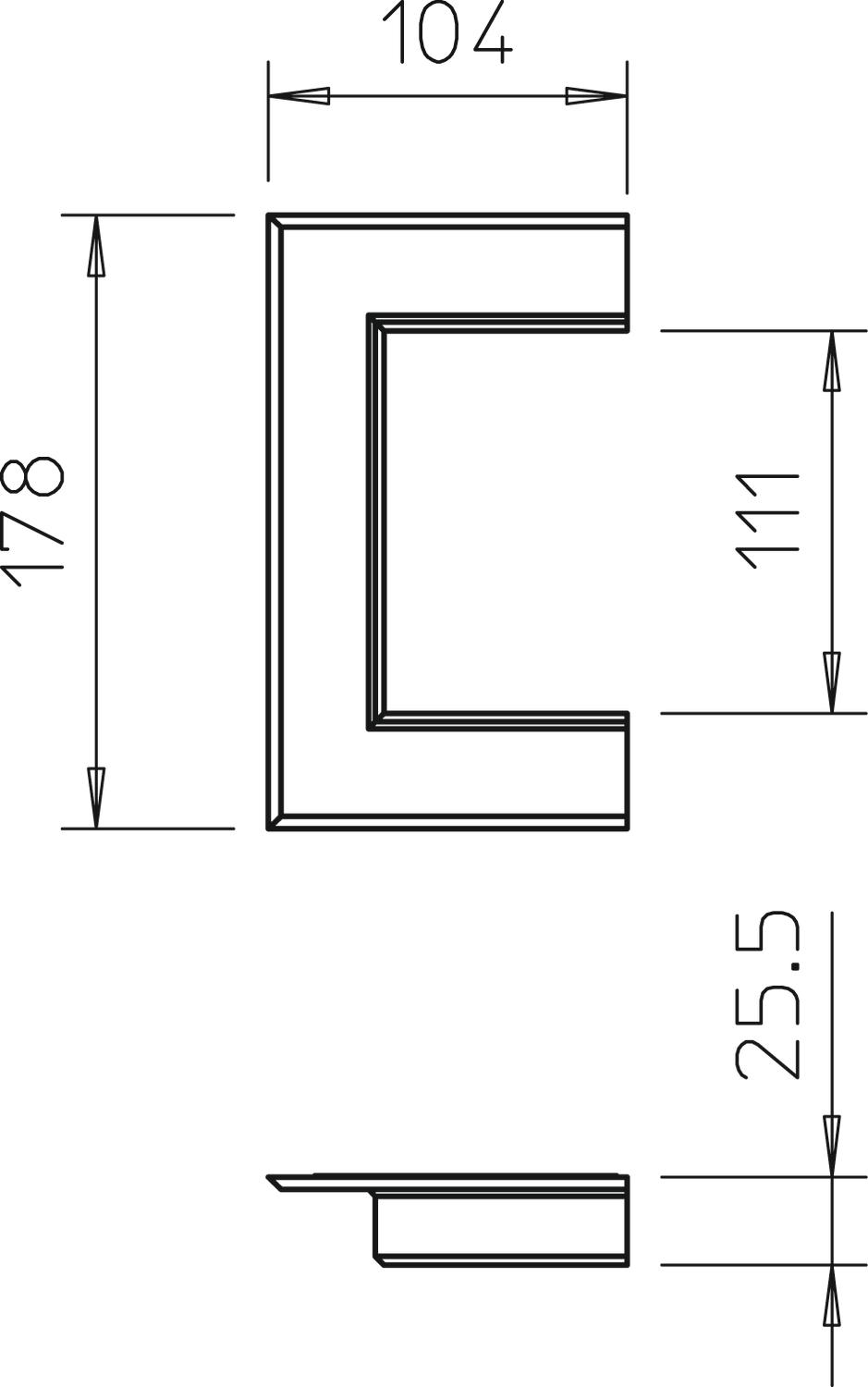

Dimension 104x178x25
Halogen-free yes
Height 104 mm
Length 25 mm
Material Acrylonitrile butadiene styrene
Mounting type of the trunking Wall
Trunking depth 70 mm
Version for Universal
Width 178 mm
All types

All types

Types Width Height Colour Item no. Quantity SSU
G-KWAO70110RW 178 mm 104 mm Pure white; RAL 9010 6274810
20 piece
Downloads

Download

Download

EU declaration of conformity G-KWAO70110RW / 6274810 , 0.10MB , pdf
Download
UK Declaration of Conformity G-KWAO70110RW / 6274810 , 0.14MB , pdf
Download
REACH Declaration of conformity G-KWAO70110RW / 6274810 , 0.12MB , pdf
Download
RoHS Declaration of conformity G-KWAO70110RW / 6274810 , 0.12MB , pdf
Download

No invitation to tender text is available for this product.
