Wall end piece, open, plastic 70210 278 | 104 | Pure white; RAL 9010
morepic-1 morepic-2 video-1

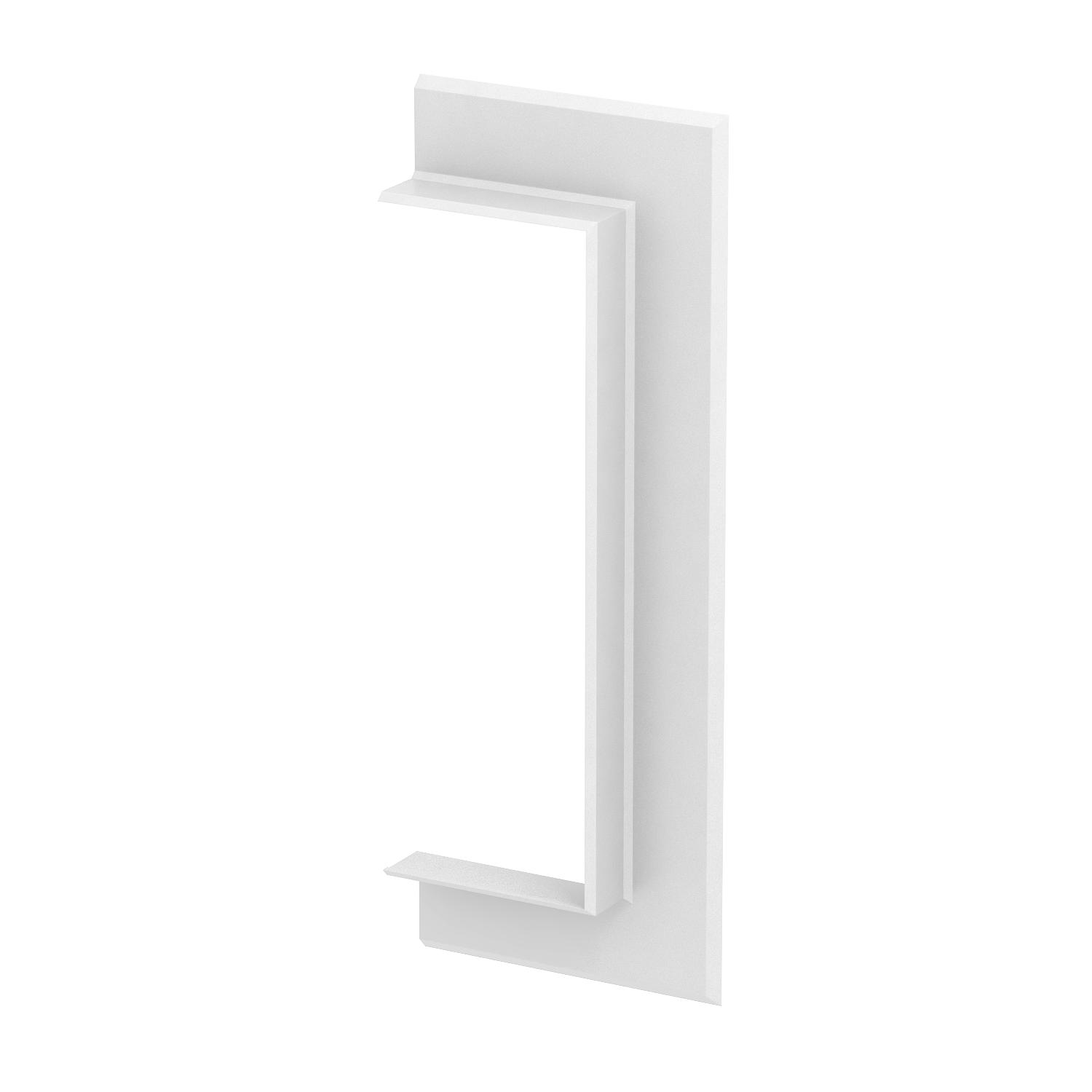

Wall end piece, open, plastic 70210

Item no. 6274840 | EAN 4012195657644

6274840 / G-KWAO70210RW
278 mm
104 mm
Pure white; RAL 9010
Product description
Product description
Wall cover, open, to close wall penetrations during wall mounting.


  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010

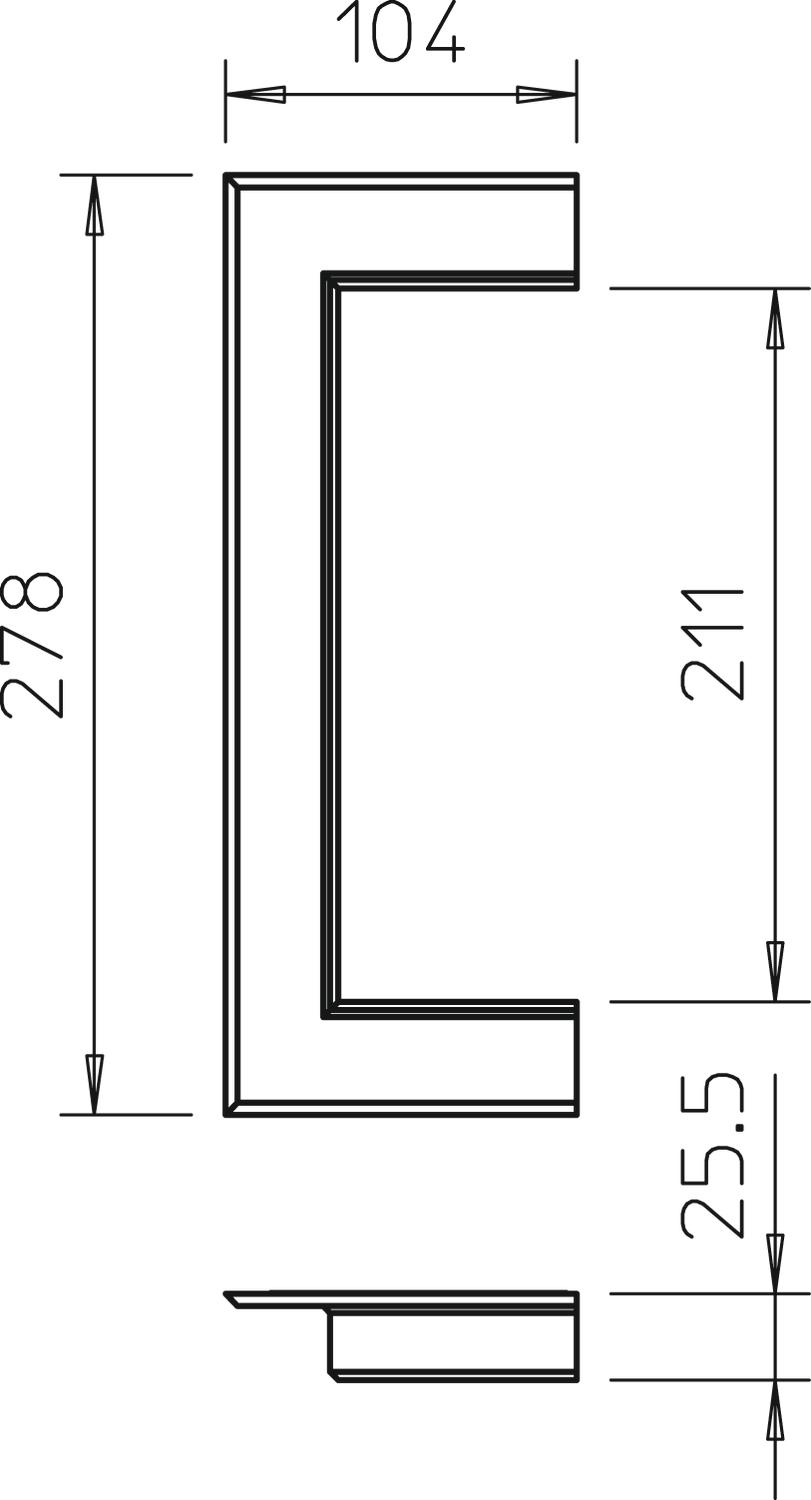

Dimension 104x278x25
Halogen-free yes
Height 104 mm
Length 25 mm
Material Acrylonitrile butadiene styrene
Mounting type of the trunking Wall
Trunking depth 70 mm
Version for Universal
Width 278 mm
All types

All types

Types Width Height Colour Item no. Quantity SSU
G-KWAO70210RW 278 mm 104 mm Pure white; RAL 9010 6274840
20 piece
Downloads

Download

Download

EU declaration of conformity G-KWAO70210RW / 6274840 , 0.10MB , pdf
Download
UK Declaration of Conformity G-KWAO70210RW / 6274840 , 0.14MB , pdf
Download

No invitation to tender text is available for this product.
