Wall end piece, open, plastic 90110 178 | 124 | Pure white; RAL 9010
morepic-1 morepic-2 video-1

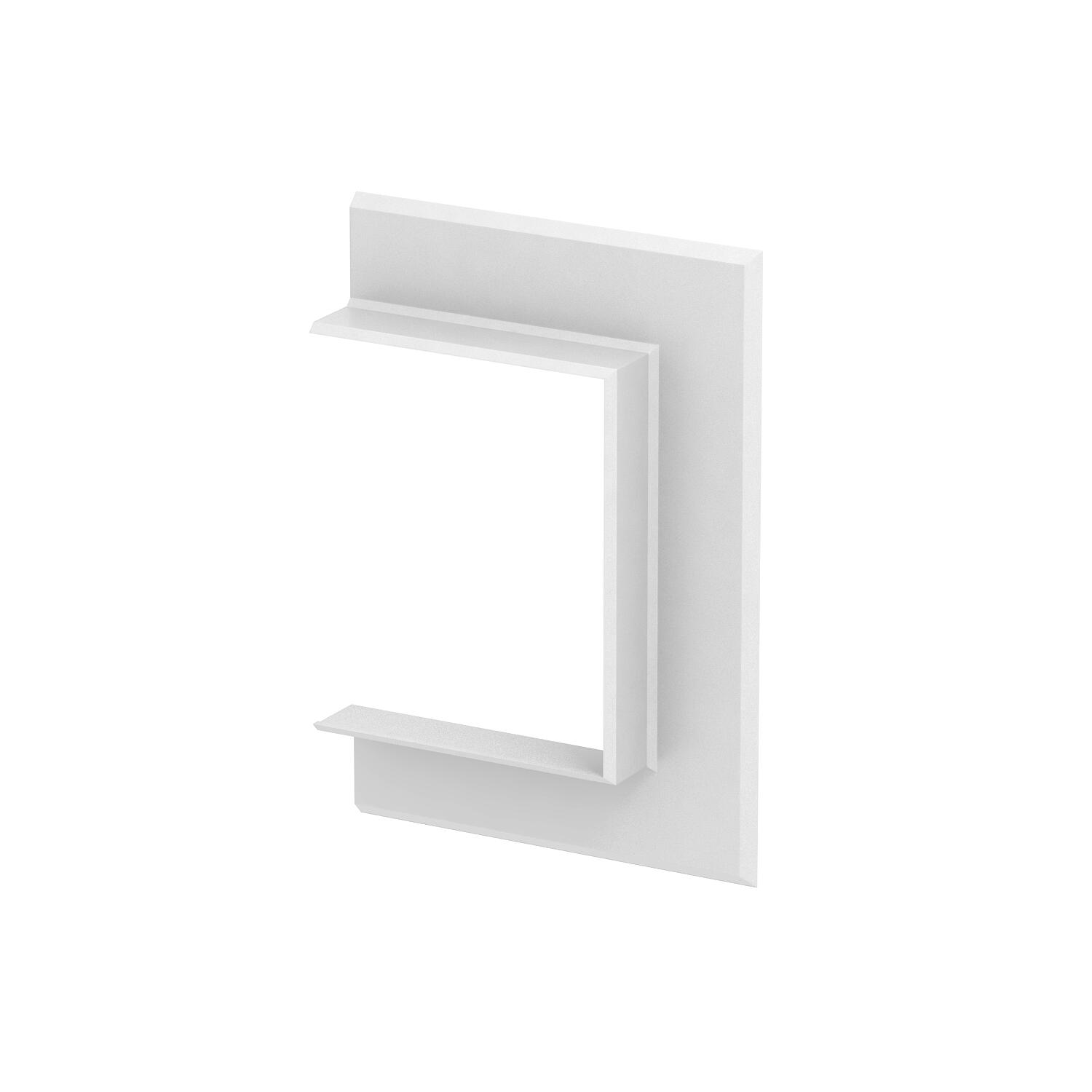

Wall end piece, open, plastic 90110

Item no. 6274910 | EAN 4012195658139

6274910 / G-KWAO90110RW
178 mm
124 mm
Pure white; RAL 9010
Product description
Product description
Wall cover, open, to close wall penetrations during wall mounting.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Pure white; RAL 9010

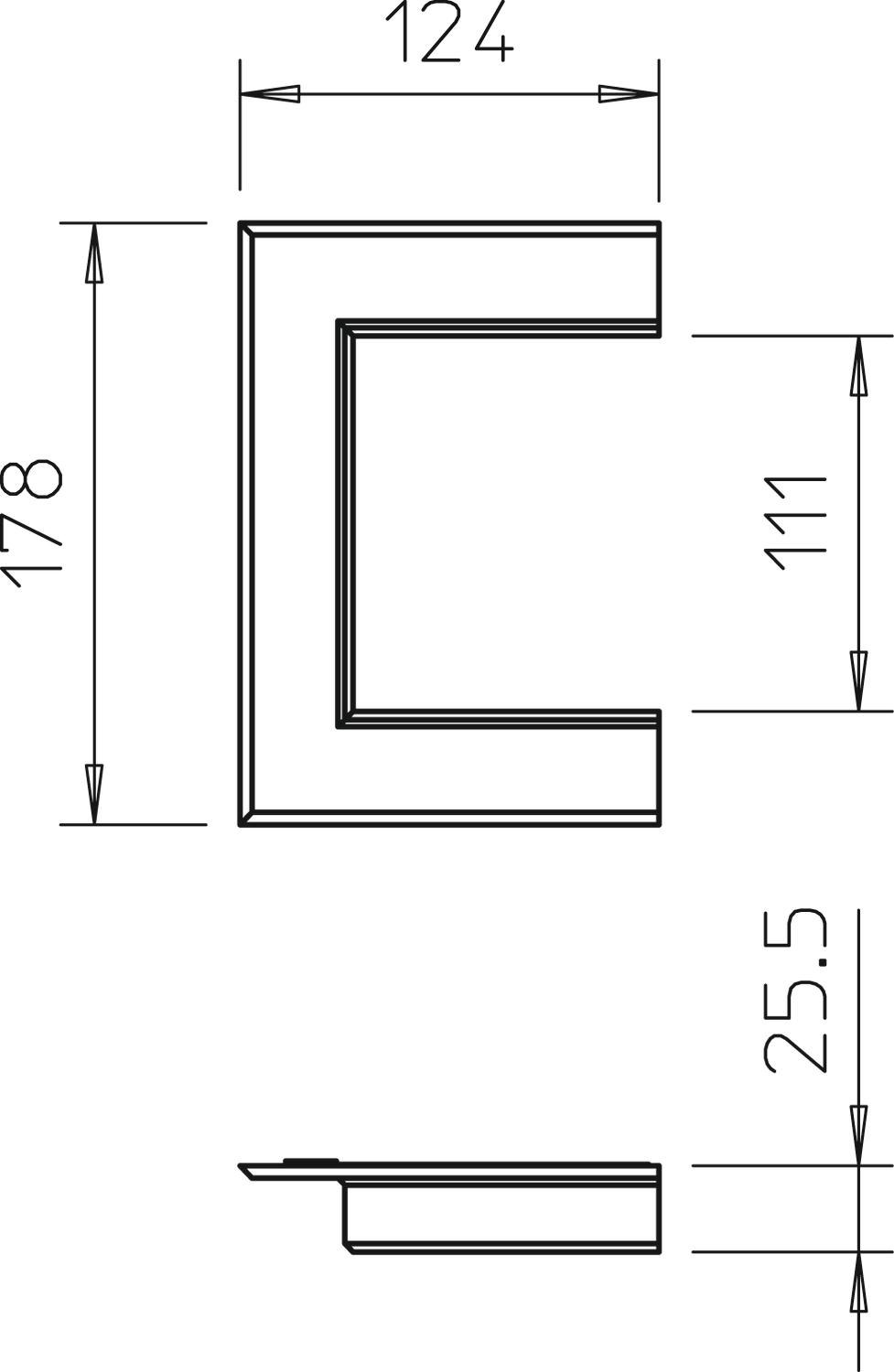

Dimension 124x178x25
Halogen-free yes
Height 124 mm
Length 25 mm
Material Acrylonitrile butadiene styrene
Mounting type of the trunking Wall
Trunking depth 90 mm
Version for Universal
Width 178 mm
All types

All types

Types Width Height Colour Item no. Quantity SSU
G-KWAO90110RW 178 mm 124 mm Pure white; RAL 9010 6274910
20 piece
Downloads

Download

Download

EU declaration of conformity G-KWAO90110RW / 6274910 , 0.10MB , pdf
Download
UK Declaration of Conformity G-KWAO90110RW / 6274910 , 0.14MB , pdf
