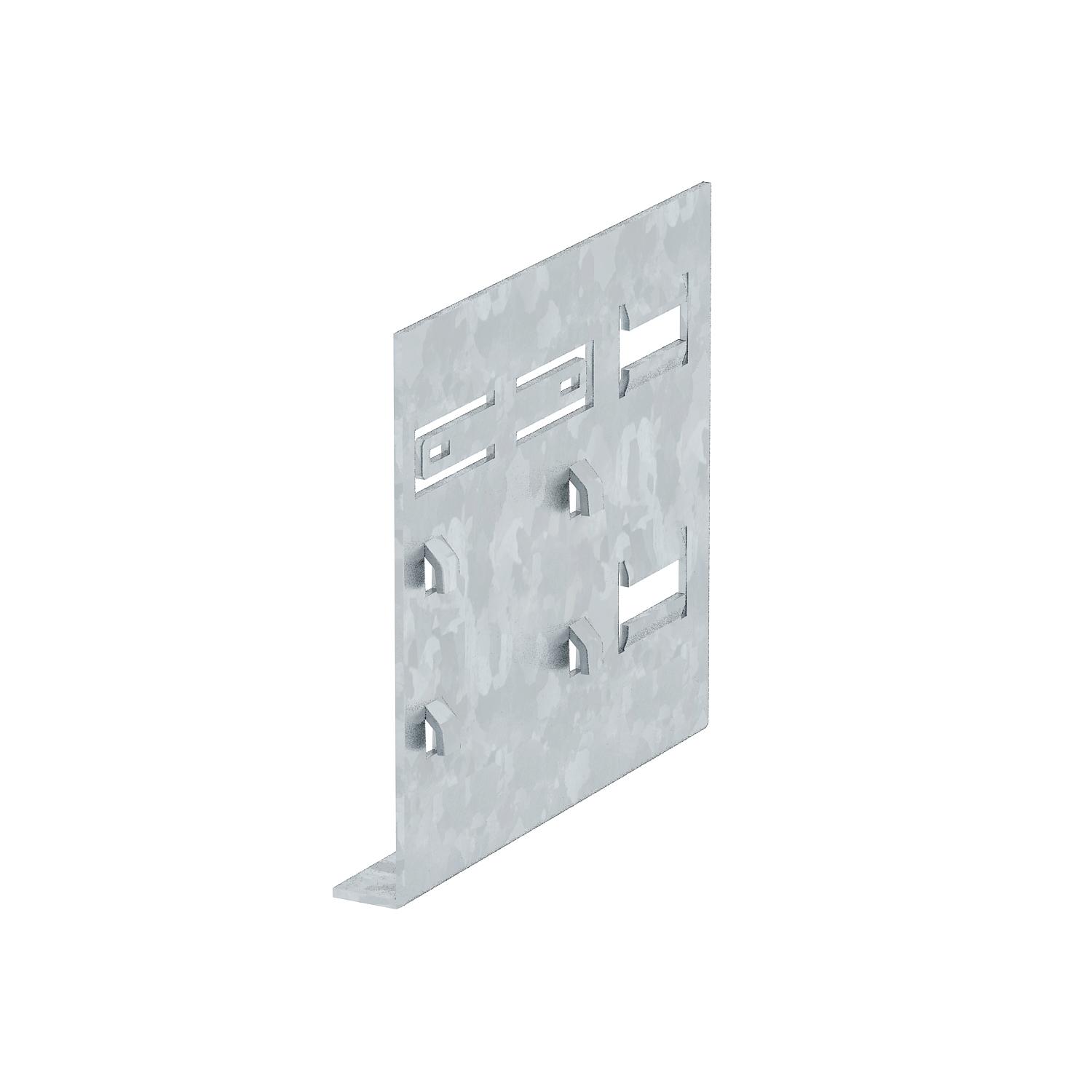

Wall panel adapter KS70130 for GK plastic, trunking width 130 mm
Item no. 6279804 | EAN 4012195680703
- Product description
-
Product description
Wall panel adapter for mounting the GK70130 device installation trunking on fastening panels.
-
- Technical data
-
Technical data

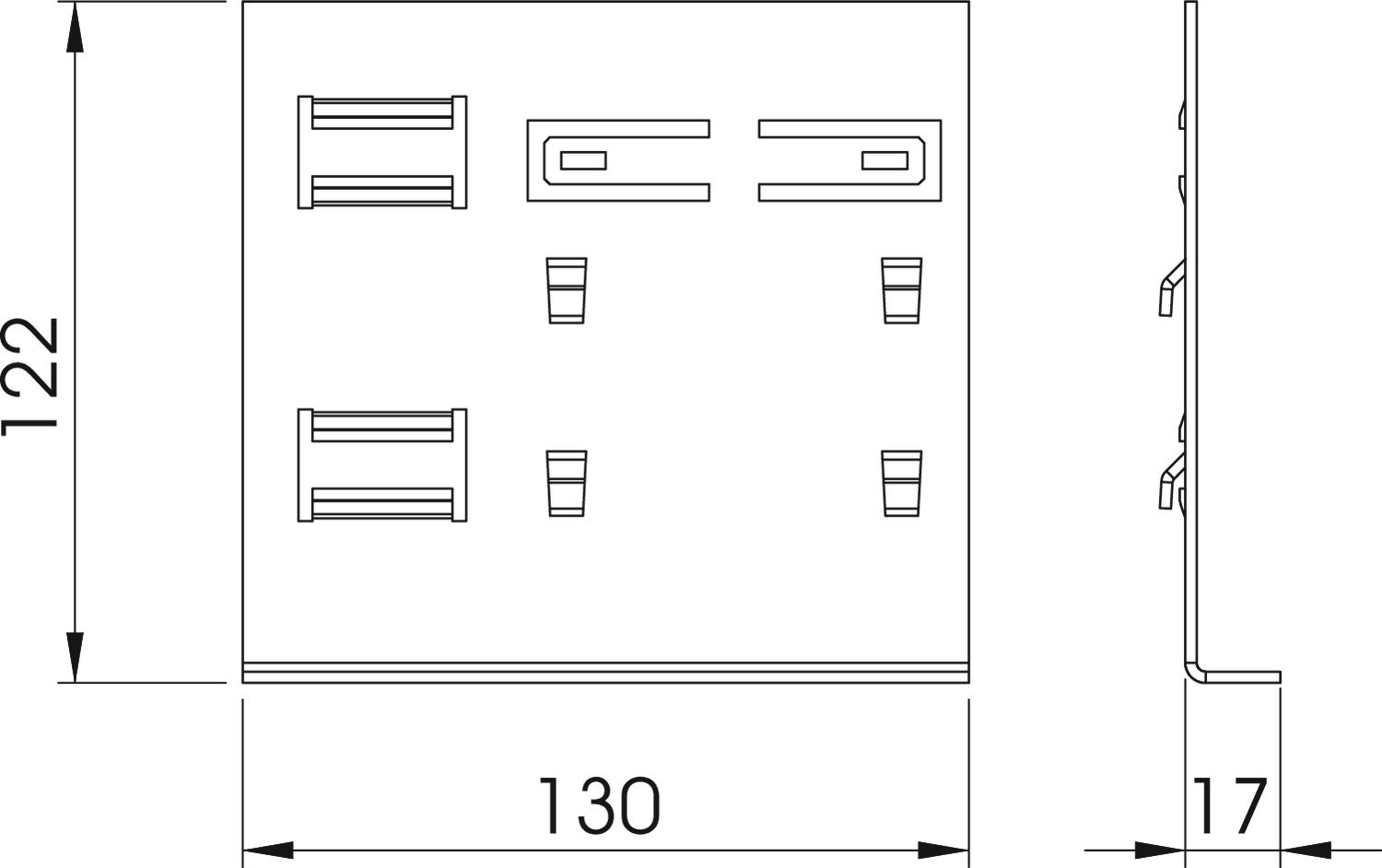

Dimension 128x122x27mm Fastening type Lockable for duct dimension 70x130 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK08 Surface Strip galvanized Version for Wall mounting Dimensions
Height 17 mm Length 130 mm Width 122 mm - All types
- Downloads
-
Data sheet KS70130 / 6279804 , 0.28MB , pdfDeclaration of conformity KS70130 / 6279804 , 0.13MB , pdfREACH Declaration of conformity KS70130 / 6279804 , 0.27MB , pdfRoHS Declaration of conformity KS70130 / 6279804 , 0.28MB , pdfMounting instructions KS wall panel adapter , 0.97MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
