Wall panel adapter KS70170 for GK plastic, trunking width 170 mm
Item no. 6279806 | EAN 4012195680734
- Product description
-
Product description

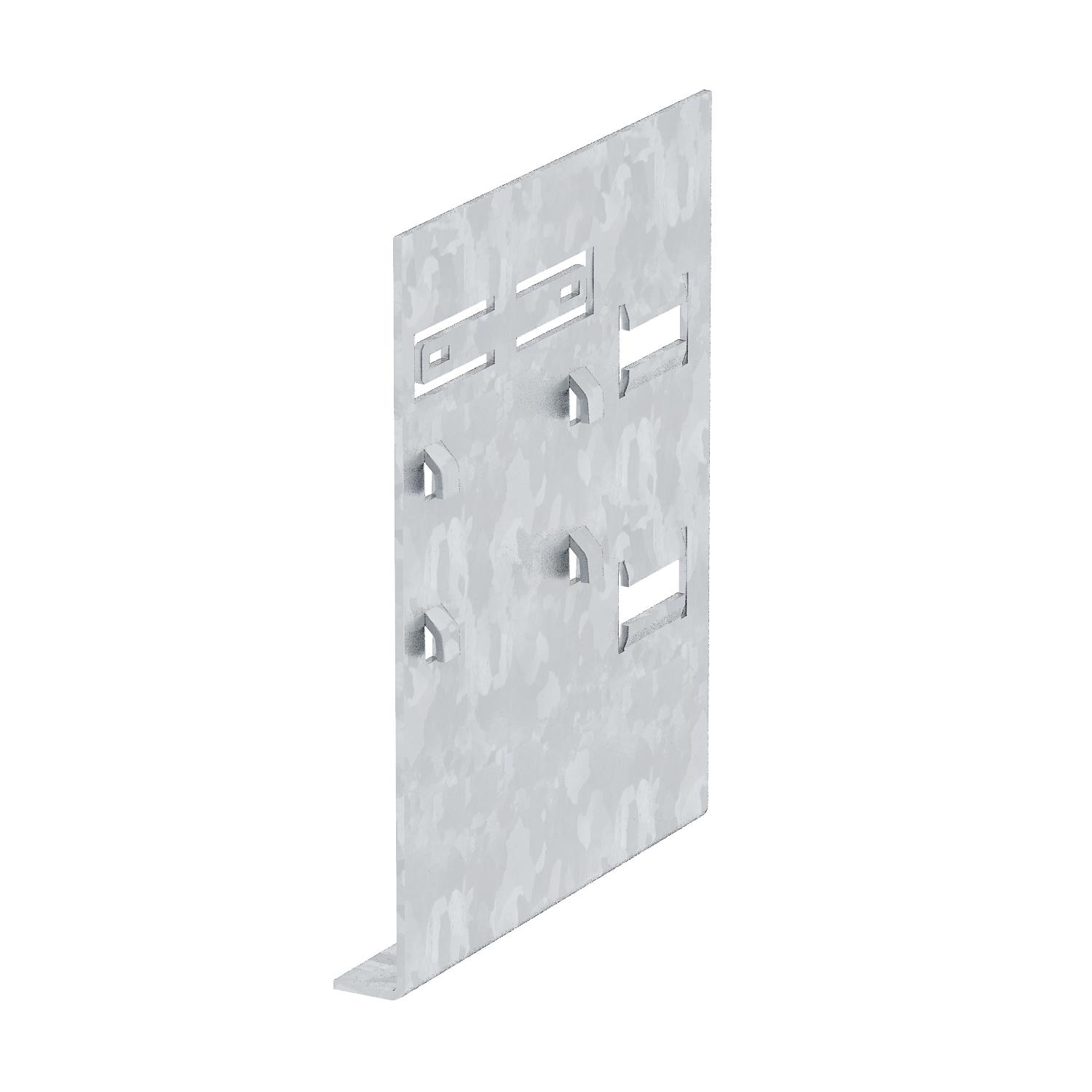

Wall panel adapter for mounting the GK70170 device installation trunking on fastening panels.
-
- Technical data
-
Technical data
Dimension 128x162x27mm Fastening type Lockable for duct dimension 70x170 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP30 Protection rating IK code IK08 Surface Strip galvanized Version for Wall mounting Dimensions

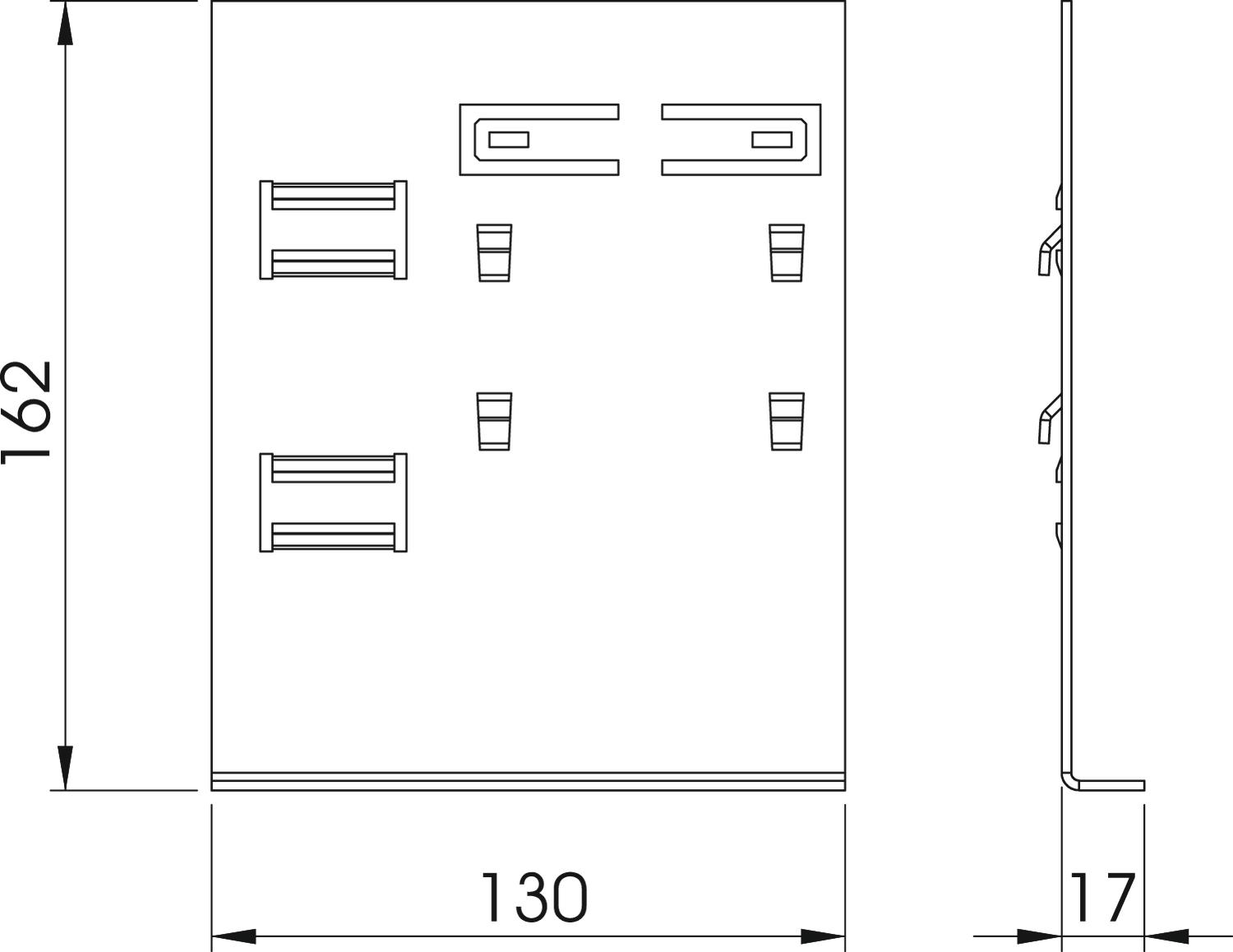

Height 17 mm Length 130 mm Width 162 mm - All types
- Downloads
-
Data sheet KS70170 / 6279806 , 0.24MB , pdfDeclaration of conformity KS70170 / 6279806 , 0.13MB , pdfMounting instructions KS wall panel adapter , 0.97MB , pdfSafety data sheet PVC_Material data , 0.02MB , pdfNo invitation to tender text is available for this product.
