- Product description
-
Product description

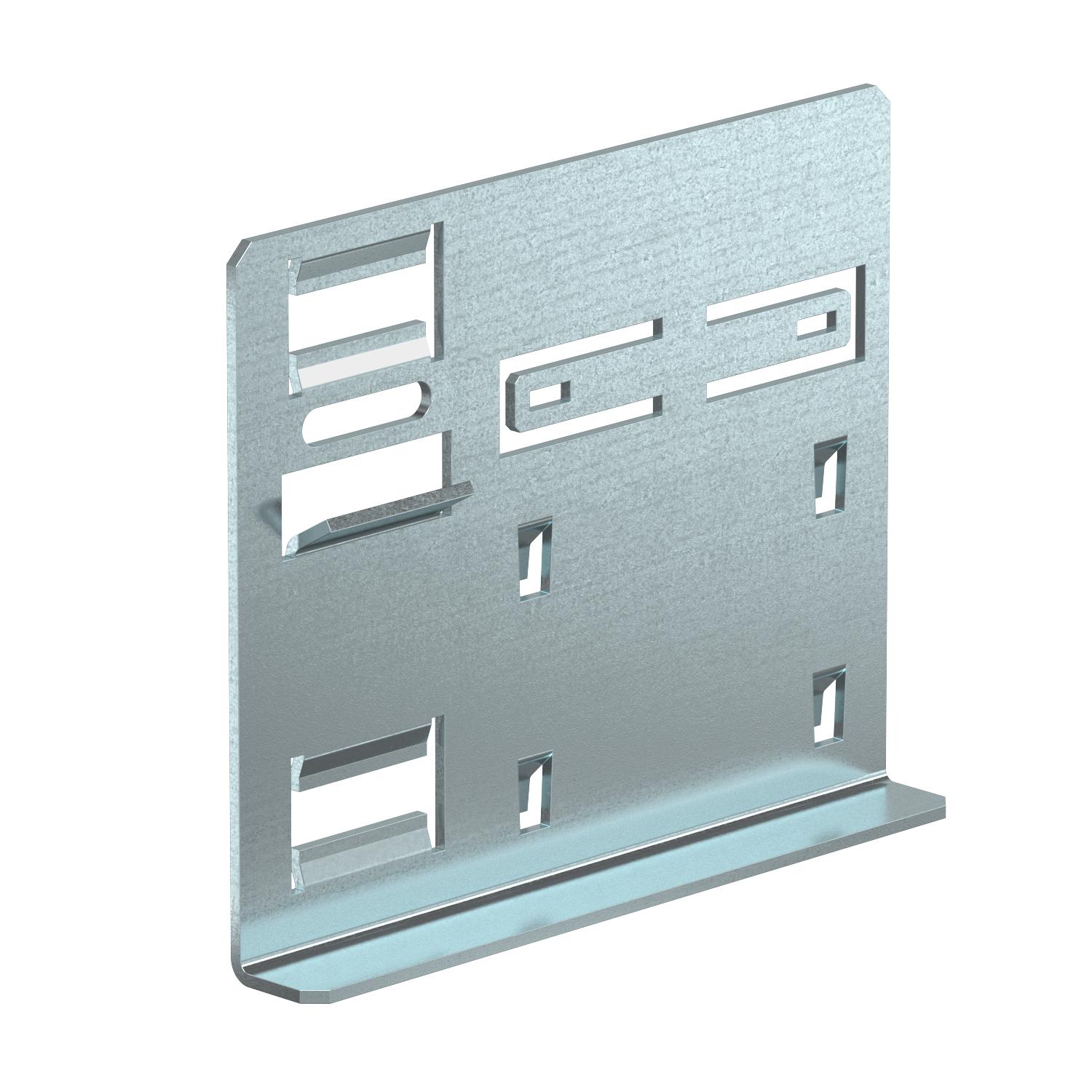

Wall panel adapter to mount the Signa Base (BRK 70110) and Signa Style (BRA 70110) device installation trunking to fastening panels.
- Technical data
-
Technical data

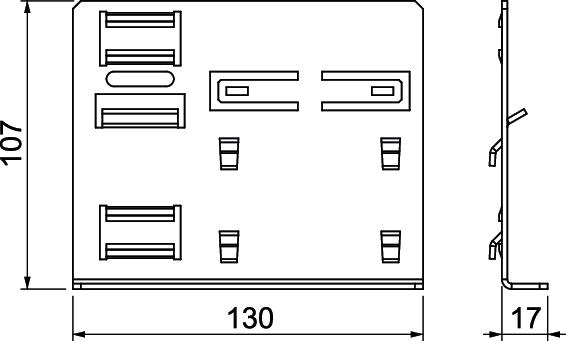

Dimension 130x107x17mm Fastening type Lockable for duct dimension 70x110 Material Steel Surface Strip galvanized Trunking mounting Attach and screw Version for Wall mounting Dimensions
Height 17 mm Length 130 mm Width 107 mm - All types
- Downloads
-
Declaration of conformity KSS70110 / 6133669 , 0.17MB , pdfMounting instructions Wandkonsolenadapter KSS , 8.48MB , pdf
