Wall penetration

Item no. 7403890 | EAN 4012195862130

7403890 / OKB WD 25085
250 mm
Product description

Product description

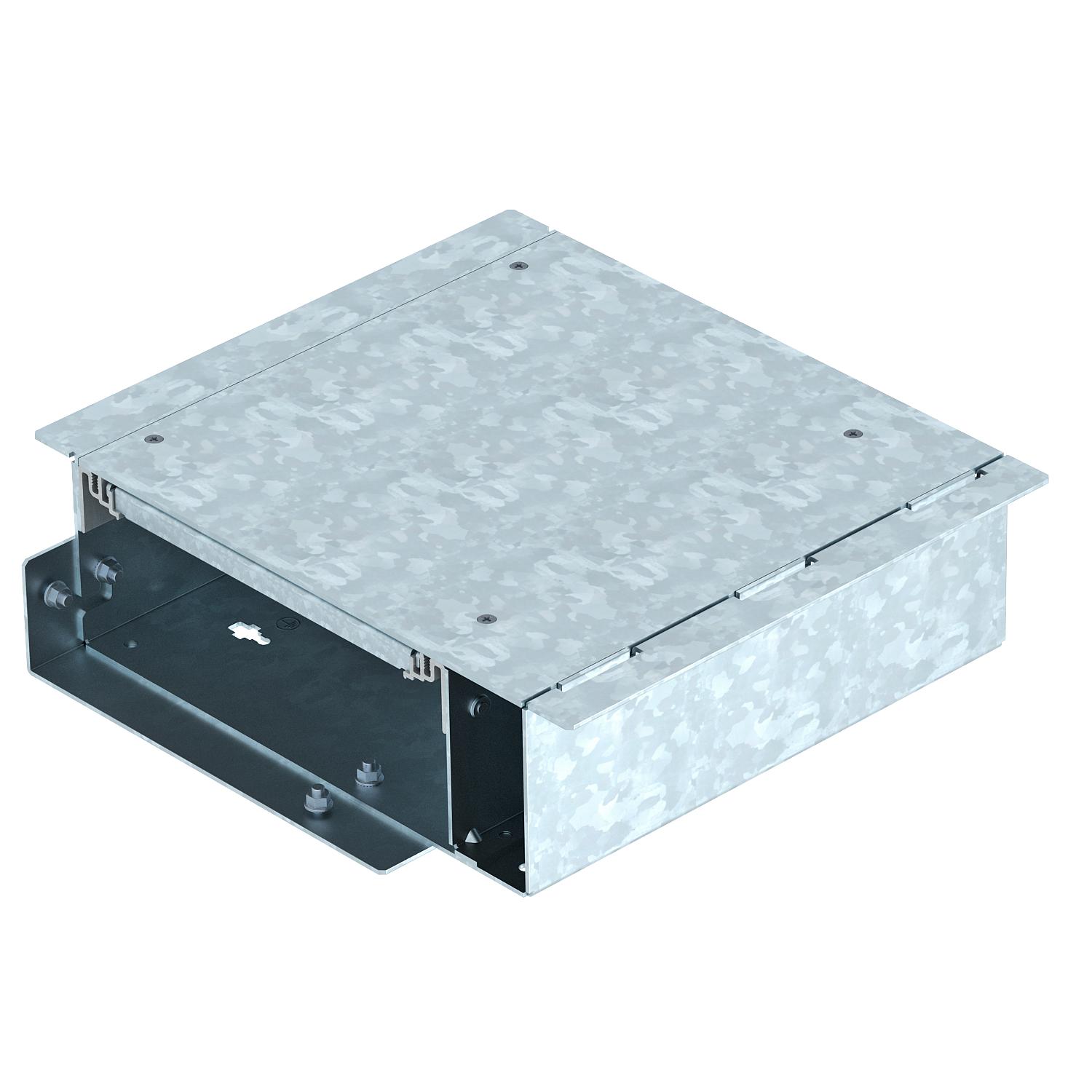

Ready-to-mount trunking unit for passing through a wall, consisting of a trunking base with a blind lid. The scope of delivery contains a lid butt seal and a connector.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cover fastening, locking no
Decouplable yes

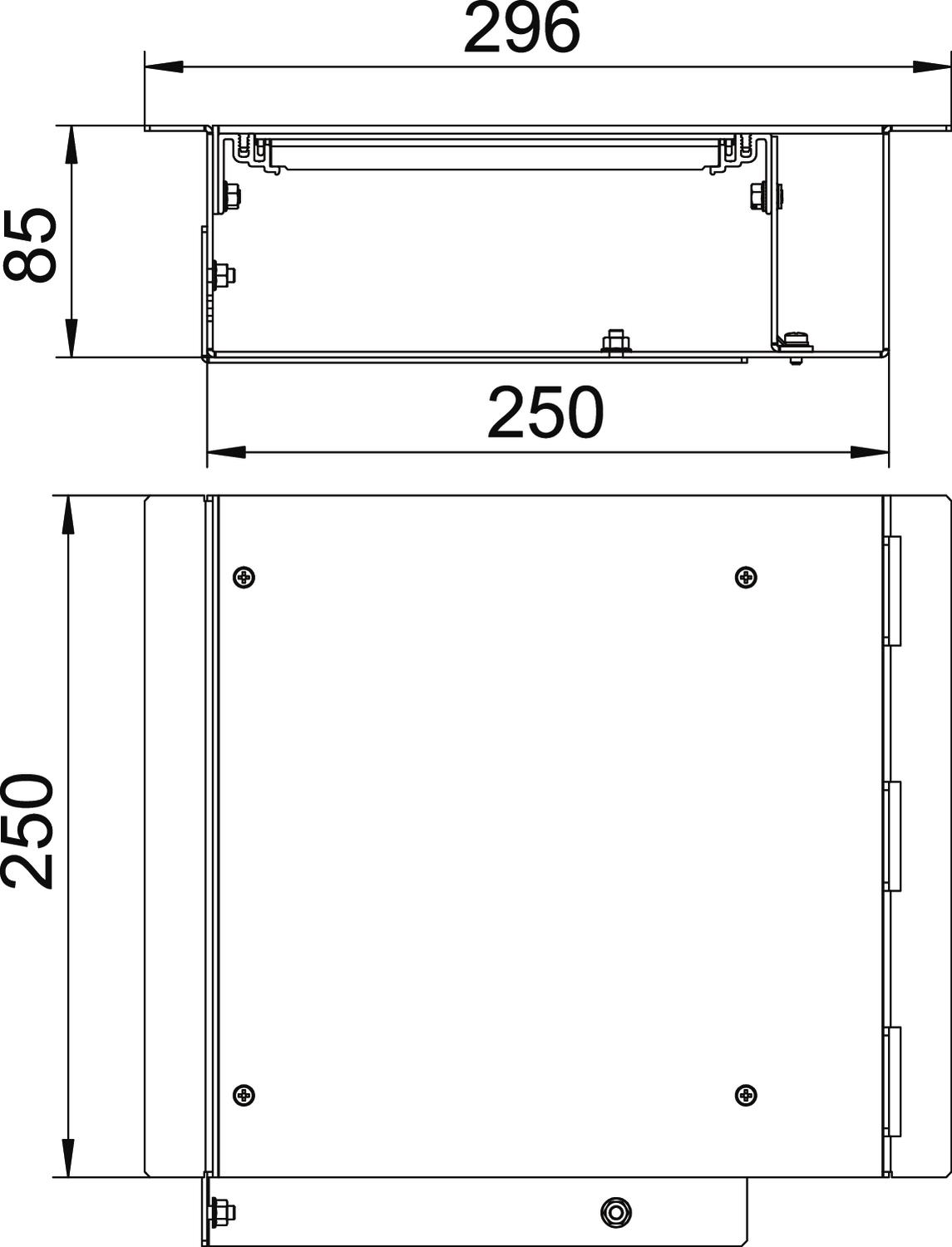

Dimension 250x300x85
Dimension h 85 mm
Floor care Dry
Floor plate yes
Height 93 mm
Length 300 mm
Material Steel
Minimum screed height 93
Mounting opening cover no
Removable cover yes
Seal installation option no
Suitable for expansion joint no
Suitable for flushfloor, open underfloor trunking yes
Suitable for screed-covered underfloor ducts no
Suitable for screed-flush closed underfloor ducts no
Surface Strip galvanized
Width 250 mm
With connection opening no
With equipotential bonding no
With overhang yes
All types

All types

Types Width Item no. Quantity SSU
OKB WD 25085 250 mm 7403890
1 piece
