Washer

Item no. 3402088 | EAN 4012195300076

Item no. / Types

Dimension d min.

Dimension d

Dimension h

Thread

Product description

Product description

Washer according to DIN 125, shape A, for universal use.

Technical data

Technical data

Dimension	M8
Faceted	no
Hardened	no
Hole shape	Round
Material	Steel

Material thickness	1,6 mm
Plate thickness	0,06 in
Surface	Electrogalvanized
Thread	M8

Dimensions

Dimension d	8,4 mm
Dimension d min.	16 mm

Dimension h	1,6 mm

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
WS M4 D09 G	9 mm	4.3 mm	0.8 mm	M4	3402045	piece	100 piece
WS M6 D12 G	12 mm	6.4 mm	1.6 mm	M6	3402061	piece	100 piece
WS M8 D16 G	16 mm	8.4 mm	1.6 mm	M8	3402088	piece	100 piece
WS M10 D20 G	20 mm	10.5 mm	2 mm	M10	3402096	piece	100 piece
WS M12 D24 G	24 mm	13 mm	2.5 mm	M12	3402126	piece	100 piece

Downloads

Data sheet WS M8 D16 G / 3402088 , 0.17MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity WS M8 D16 G / 3402088 , 0.06MB , pdf

Download

REACH Declaration of conformity WS M8 D16 G / 3402088 , 0.12MB , pdf

Download

RoHS Declaration of conformity WS M8 D16 G / 3402088 , 0.12MB , pdf

Download

Product graphic WS M8 D16 G / 3402088, 16.16 kB, jpg

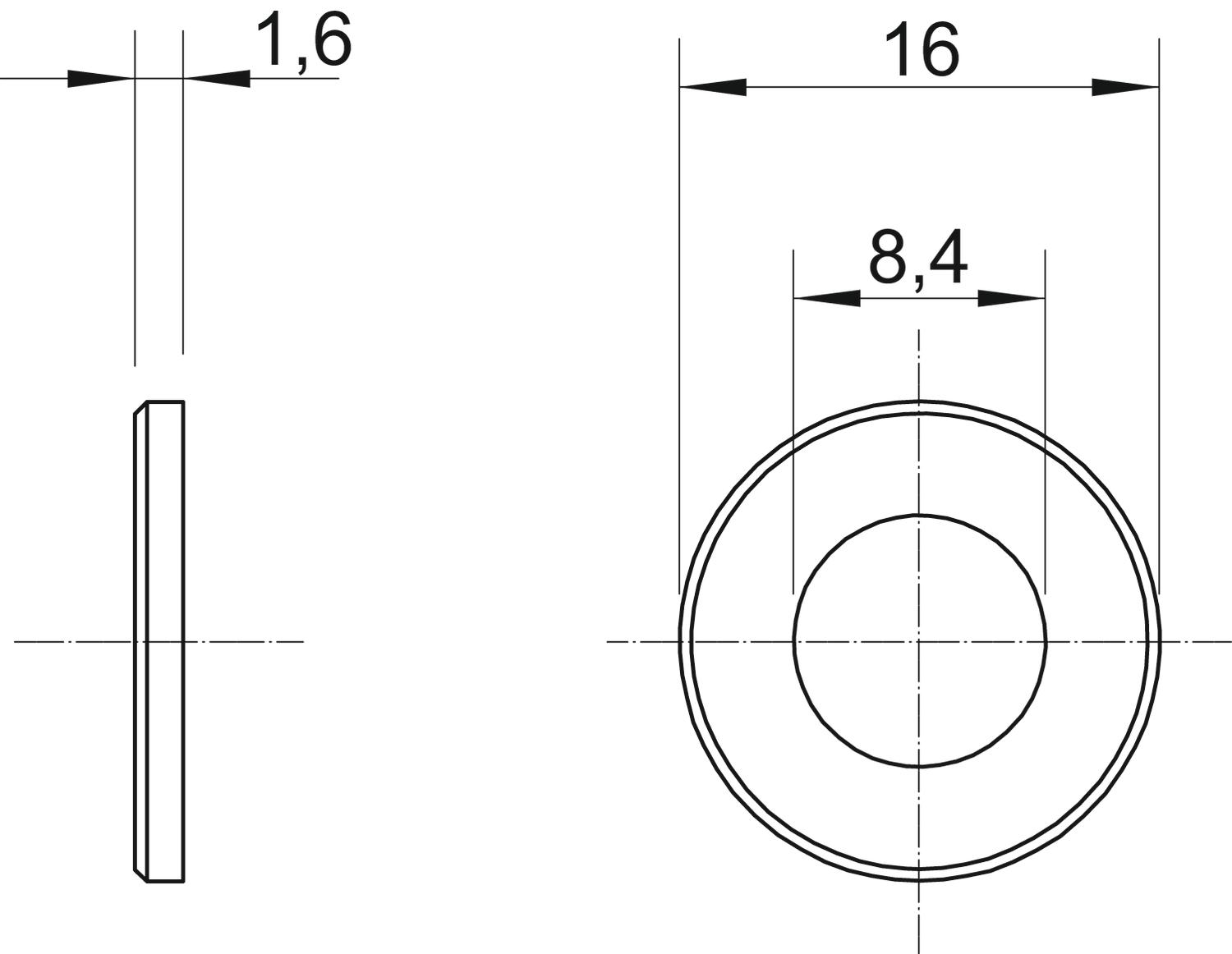

Scale drawing WS M8 D16 G / 3402088, 61.87 kB, jpg
