Washer A2 20 | | 10.5 | 2 | M10
morepic-1 morepic-2

Washer A2

Item no. 3402320 | EAN 4012195300618

Product description
Product description
Washer according to DIN 125, shape A, for universal use.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

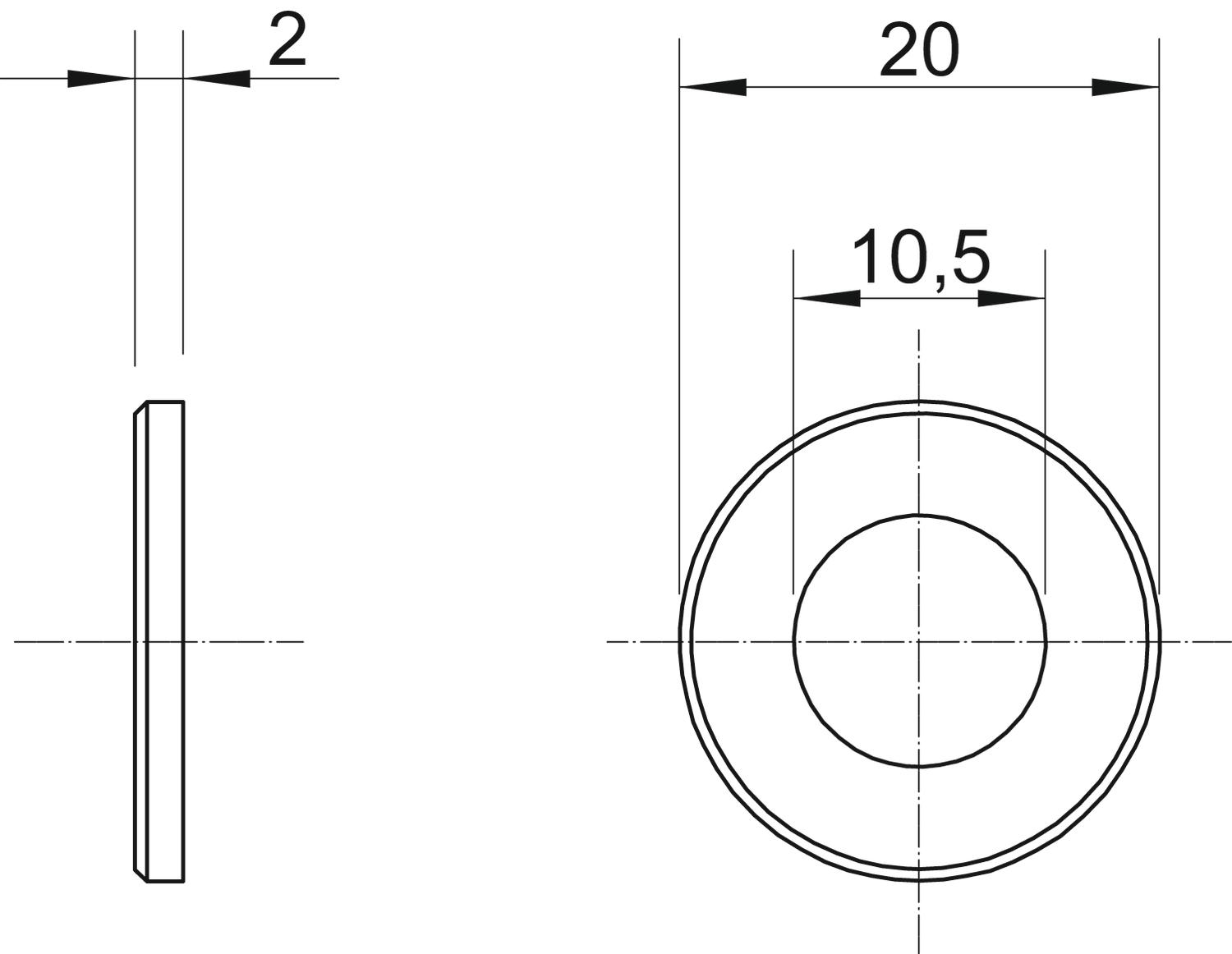

Diameter 20 mm
Dimension M10
Dimension d 10,5 mm
Dimension d min. 20 mm
Dimension h 2 mm
External diameter 20 mm
Faceted no
Hole diameter 10,5 mm
Hole shape Round
Inner diameter 10,5 mm
Material Stainless steel
Material thickness 2 mm
Plate thickness 0,08 in
Surface Bright, treated
Thread M10
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no. Quantity SSU
WS M6 D12 A2 12 mm 6.4 mm 1.6 mm M6 3402304
1000 piece
WS M8 D16 A2 16 mm 8.4 mm 1.6 mm M8 3402312
100 piece
WS M10 D20 A2 20 mm 10.5 mm 2 mm M10 3402320
100 piece
WS M12 D24 A2 24 mm 13 mm 2.5 mm M12 3402339
100 piece
Downloads

Download

Download

EU declaration of conformity WS M10 D20 A2 / 3402320 , 0.06MB , pdf
Download
REACH Declaration of conformity WS M10 D20 A2 / 3402320 , 0.12MB , pdf
Download
RoHS Declaration of conformity WS M10 D20 A2 / 3402320 , 0.12MB , pdf
Download

WS M10 D20 A2 / 3402320
