Washer A4 12 | | 6.4 | 1.6 | M6

morepic-1

morepic-2

Washer A4

Item no. 3402306 | EAN 4012195909415

Item no. / Types

Dimension d min.

Dimension d

Dimension h

Thread

Product description

Product description

Washer according to DIN 125, shape A, for universal use.

Technical data

Technical data

Diameter	12 mm
Dimension	M6
Dimension d	6,4 mm
Dimension d min.	12 mm
Dimension h	1,6 mm
External diameter	12 mm
Faceted	no

Hole diameter	6,4 mm
Hole shape	Round
Inner diameter	6,4 mm
Material	Stainless steel
Material thickness	1,6 mm
Surface	Bright, treated
Thread	M6

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
WS M6 D12 A4	12 mm	6.4 mm	1.6 mm	M6	3402306	piece	1000 piece
WS M8 D16 A4	16 mm	8.4 mm	1.6 mm	M8	3402314	piece	100 piece
WS M10 D20 A4	20 mm	10.5 mm	2 mm	M10	3402322	piece	100 piece
WS M12 D24 A4	24 mm	13 mm	2.5 mm	M12	3402345	piece	100 piece

Downloads

Data sheet WS M6 D12 A4 / 3402306 , 0.16MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity WS M6 D12 A4 / 3402306 , 0.06MB , pdf

Download

Product graphic WS M6 D12 A4 / 3402306, 14.98 kB, jpg

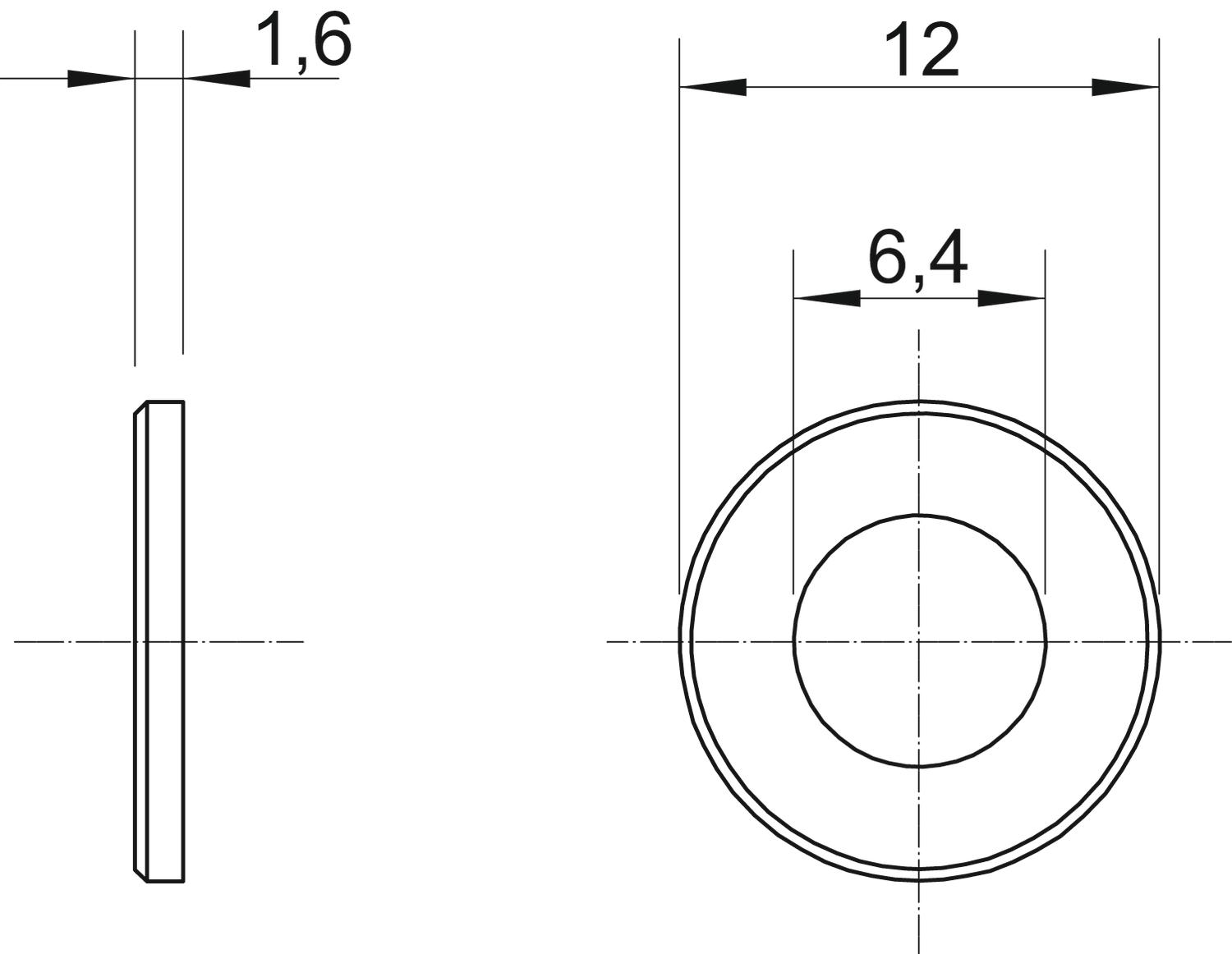

Scale drawing WS M6 D12 A4 / 3402306, 61.64 kB, jpg

WS M6 D12 A4 / 3402306

3402306_KSTP1.stp, 9.66 kB
