Washer A4 16 | | 8.4 | 1.6 | M8
morepic-1 morepic-2

Washer A4

Item no. 3402314 | EAN 4012195909477

Product description
Product description
Washer according to DIN 125, shape A, for universal use.
  • Communautés Européennes, EC declaration of conformity according to EC directives

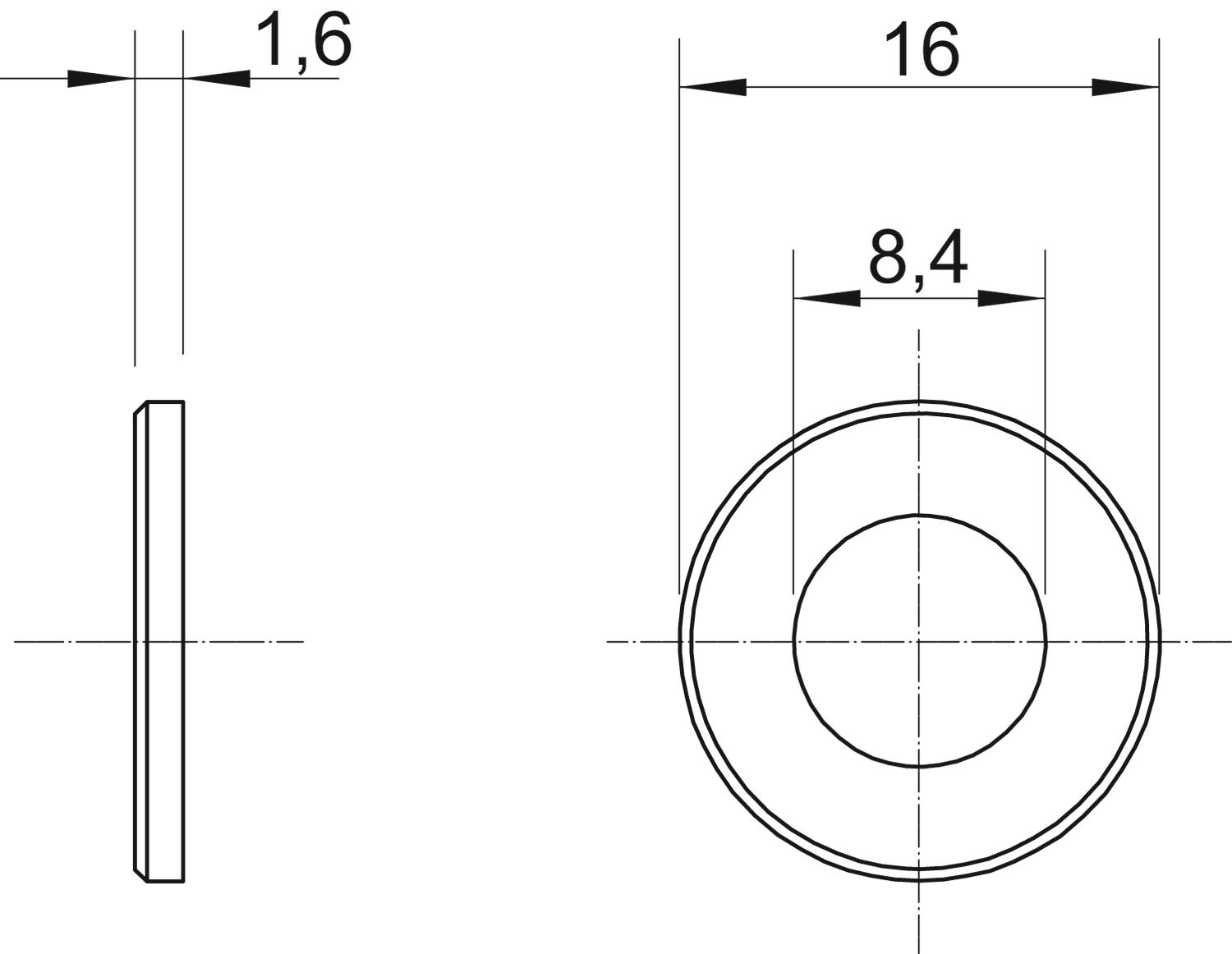

Technical data

Technical data

Diameter 16 mm
Dimension M8
Dimension d 8,4 mm
Dimension d min. 16 mm
Dimension h 1,6 mm
External diameter 16 mm
Faceted no
Hole diameter 8,4 mm
Hole shape Round
Inner diameter 8,4 mm
Material Stainless steel
Material thickness 1,6 mm
Surface Bright, treated
Thread M8
All types

All types

Types Dimension d min. Dimension d Dimension h Thread Item no. Quantity SSU
WS M6 D12 A4 12 mm 6.4 mm 1.6 mm M6 3402306
1000 piece
WS M8 D16 A4 16 mm 8.4 mm 1.6 mm M8 3402314
100 piece
WS M10 D20 A4 20 mm 10.5 mm 2 mm M10 3402322
100 piece
WS M12 D24 A4 24 mm 13 mm 2.5 mm M12 3402345
100 piece
Downloads

Download

Download

EU declaration of conformity WS M8 D16 A4 / 3402314 , 0.06MB , pdf
Download

WS M8 D16 A4 / 3402314
