Washer A4 24 | | 13 | 2.5 | M12

morepic-1

morepic-2

Washer A4

Item no. 3402345 | EAN 4012195894780

Item no. / Types

Dimension d min.

Dimension d

Dimension h

Thread

Product description

Product description

Washer according to DIN 125, shape A, for universal use.

Technical data

Technical data

Diameter	24 mm
Dimension	M12
Dimension d	13 mm
Dimension d min.	24 mm
Dimension h	2,5 mm
External diameter	24 mm
Faceted	no

Hole diameter	13 mm
Hole shape	Round
Inner diameter	13 mm
Material	Stainless steel
Material thickness	2,5 mm
Surface	Bright, treated
Thread	M12

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
WS M6 D12 A4	12 mm	6.4 mm	1.6 mm	M6	3402306	piece	1000 piece
WS M8 D16 A4	16 mm	8.4 mm	1.6 mm	M8	3402314	piece	100 piece
WS M10 D20 A4	20 mm	10.5 mm	2 mm	M10	3402322	piece	100 piece
WS M12 D24 A4	24 mm	13 mm	2.5 mm	M12	3402345	piece	100 piece

Downloads

Data sheet WS M12 D24 A4 / 3402345 , 0.16MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity WS M12 D24 A4 / 3402345 , 0.06MB , pdf

Download

Product graphic WS M12 D24 A4 / 3402345, 14.98 kB, jpg

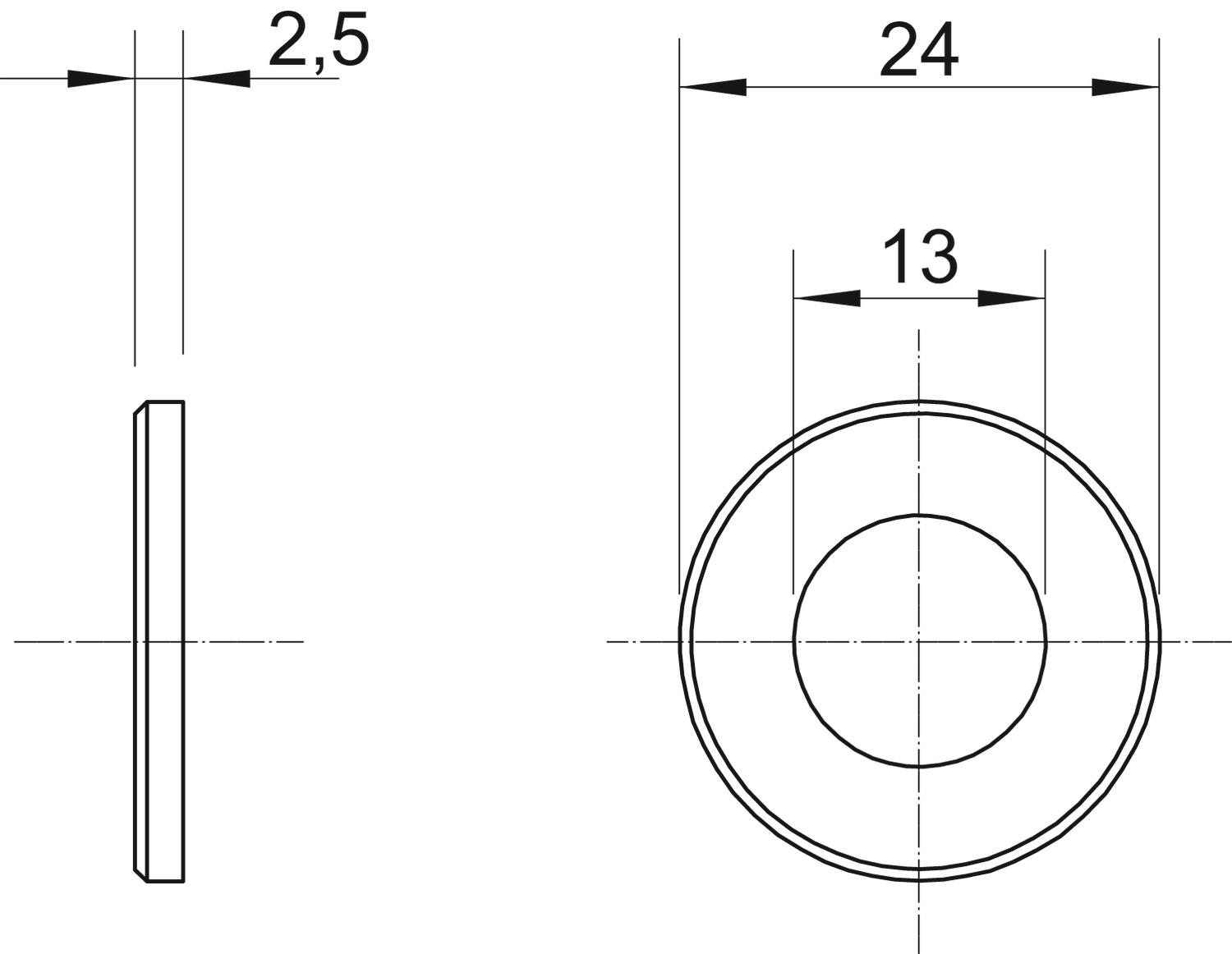

Scale drawing WS M12 D24 A4 / 3402345, 61.64 kB, jpg

WS M12 D24 A4 / 3402345

3402345_KSTP1.stp, 9.66 kB
