Washer A5 12 | | 6.4 | 1.6 | M6

morepic-1

morepic-2

Washer A5

Item no. 3402308 | EAN 4012195909422

Item no. / Types

Dimension d min.

Dimension d

Dimension h	1.6 mm

Thread

Product description

Product description

Washer according to DIN 125, shape A, for universal use.

Technical data

Technical data

Diameter	12 mm
Dimension	M6
External diameter	12 mm
Faceted	no
Hole diameter	6,4 mm

Hole shape	Round
Inner diameter	6,4 mm
Material	Stainless steel
Material thickness	1,6 mm
Thread	M6

Dimensions

Dimension d	6,4 mm
Dimension d min.	12 mm

Dimension h	1,6 mm

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
WS M6 D12 A5	12 mm	6.4 mm	1.6 mm	M6	3402308	piece	100 piece
WS M8 D16 A5	16 mm	8.4 mm	1.6 mm	M8	3402316	piece	100 piece

Downloads

Data sheet WS M6 D12 A5 / 3402308 , 0.19MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity WS M6 D12 A5 / 3402308 , 0.06MB , pdf

Download

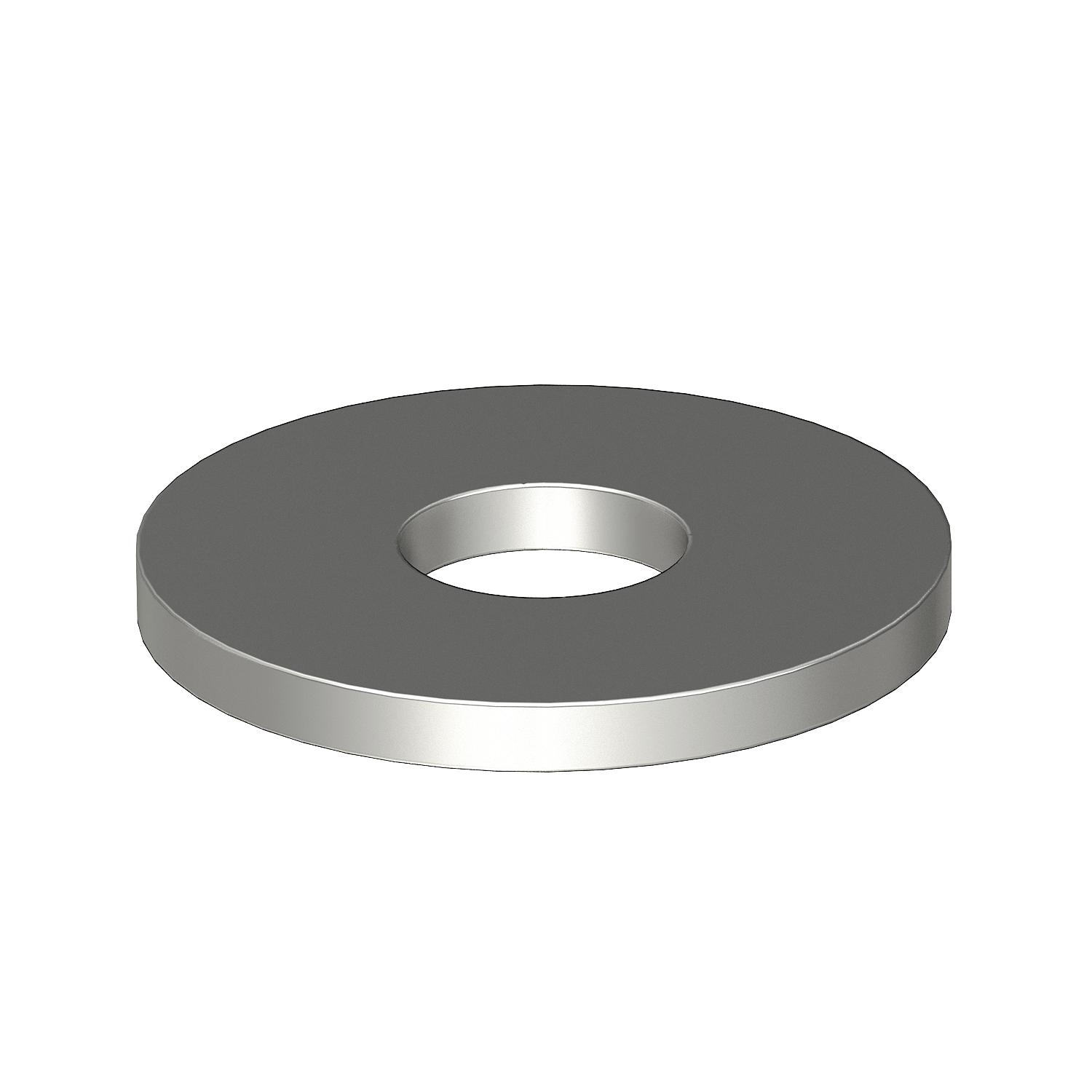

Product graphic WS M6 D12 A5 / 3402308, 46.91 kB, jpg

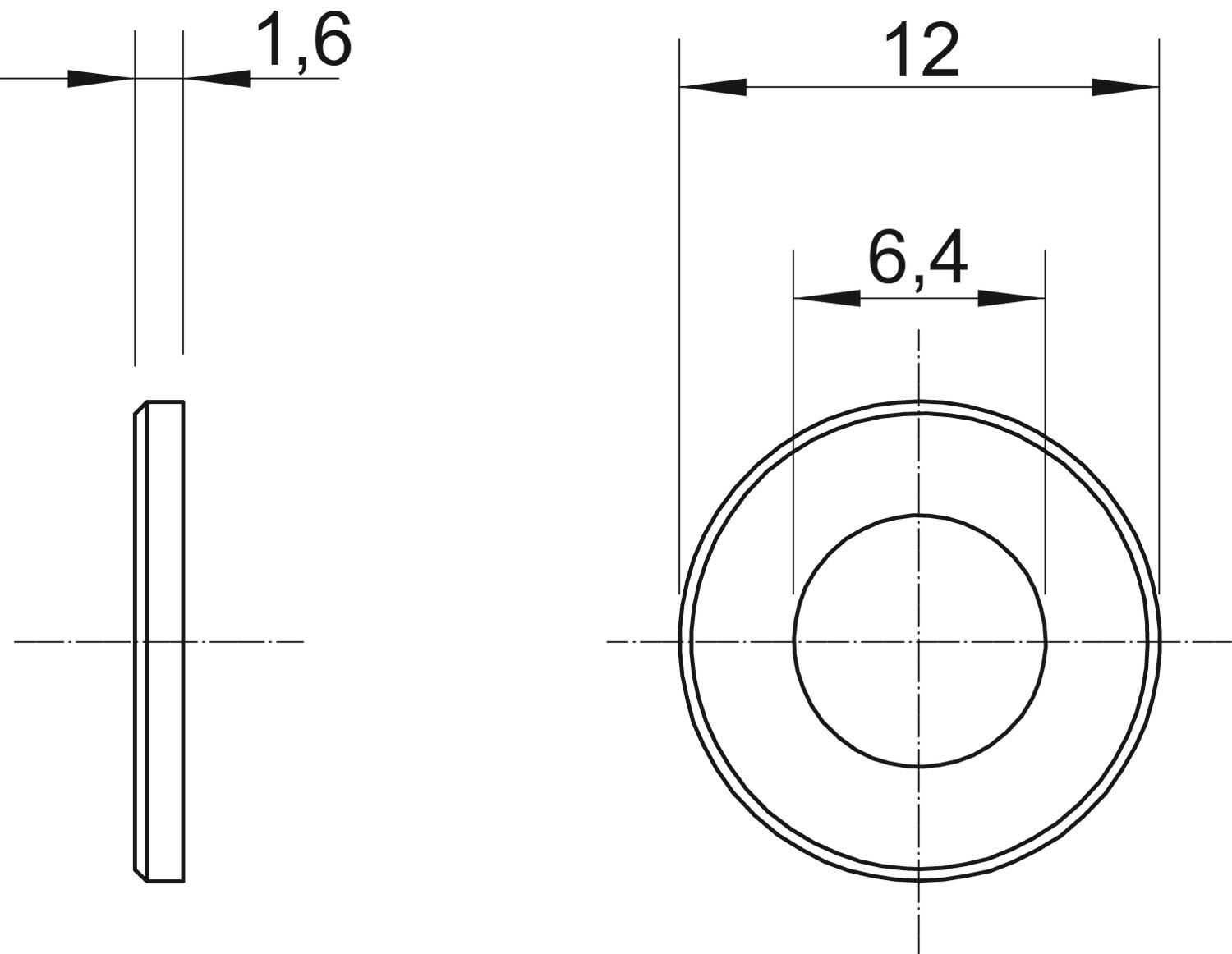

Scale drawing WS M6 D12 A5 / 3402308, 61.64 kB, jpg

WS M6 D12 A5 / 3402308
