Washer F 12 | 12 | 6.6 | 1.6 | M6
morepic-1 morepic-2

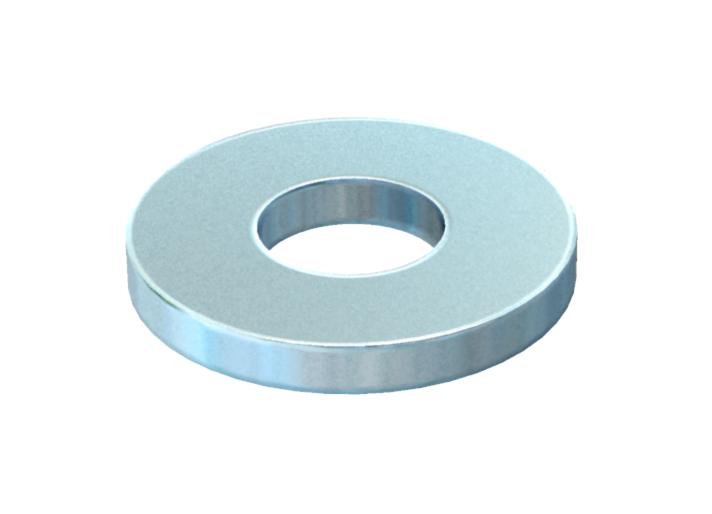

Washer F

Item no. 3402444 | EAN 4012195300731

Product description

Product description

Washer for universal use.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Diameter 12 mm
Dimension M6
External diameter 12 mm
Hole diameter 6,4 mm
Hole shape Round
Inner diameter 6,4 mm
Material Steel
Material thickness 1,6 mm
Plate thickness 0,06 in
Surface Hot galvanized
Thread M6

Dimensions

Dimension d 6,6 mm
Dimension d max. 12 mm
Dimension d min. 12 mm
Dimension h 1,6 mm
All types

All types

Types Dimension d min. Dimension d max. Dimension d Dimension h Thread Item no. Quantity SSU
966 M6 F 12 mm 12 mm 6.6 mm 1.6 mm M6 3402444
100 piece
966 M8 F 16 mm 16 mm 9 mm 1.6 mm M8 3402452
100 piece
966 M10 F 20 mm 20 mm 11 mm 2 mm M10 3402460
100 piece
966 M12 F 24 mm 24 mm 13.5 mm 2.5 mm M12 3402479
100 piece
