Washer ISO 7093 28 | | 8.5 | 2.5 | M8

morepic-1

morepic-2

Washer ISO 7093

Item no. 3402215 | EAN 4012195300373

Item no. / Types

Dimension d min.	28 mm

Dimension d

Dimension h	2.5 mm

Thread

Product description

Product description

Washer of large outer diameter for universal use.

Technical data

Technical data

CO₂ Fußabdruck (GWP) Cradle-to-Gate	7,322 kg CO₂e / 1 Stück
Dimension	M8
Dimension d	8,5 mm
Dimension d min.	28 mm
Dimension h	2,5 mm
Faceted	no

Hole shape	Round
Material	Steel
Material thickness	2,5 mm
Plate thickness	0,1 in
Surface	Electrogalvanized
Thread	M8

All types

All types

Types	Dimension d min.	Dimension d	Dimension h	Thread	Item no.	Quantity	SSU
WS M6 D28 G	28 mm	6.5 mm	2.5 mm	M6	3402207	piece	100 piece
WS M8 D28 G	28 mm	8.5 mm	2.5 mm	M8	3402215	piece	100 piece
WS M10 D28 G	28 mm	11 mm	2.5 mm	M10	3402223	piece	100 piece

Downloads

Data sheet WS M8 D28 G / 3402215 , 0.10MB , pdf

Guide Fire protection in electrical engineering – A guide to fireproof building installations , 2.10MB , pdf

Brochure Zwischendeckeninstallationen , 2.70MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity WS M8 D28 G / 3402215 , 0.06MB , pdf

Download

REACH Declaration of conformity WS M8 D28 G / 3402215 , 0.12MB , pdf

Download

RoHS Declaration of conformity WS M8 D28 G / 3402215 , 0.12MB , pdf

Download

Product graphic WS M8 D28 G / 3402215, 12.59 kB, jpg

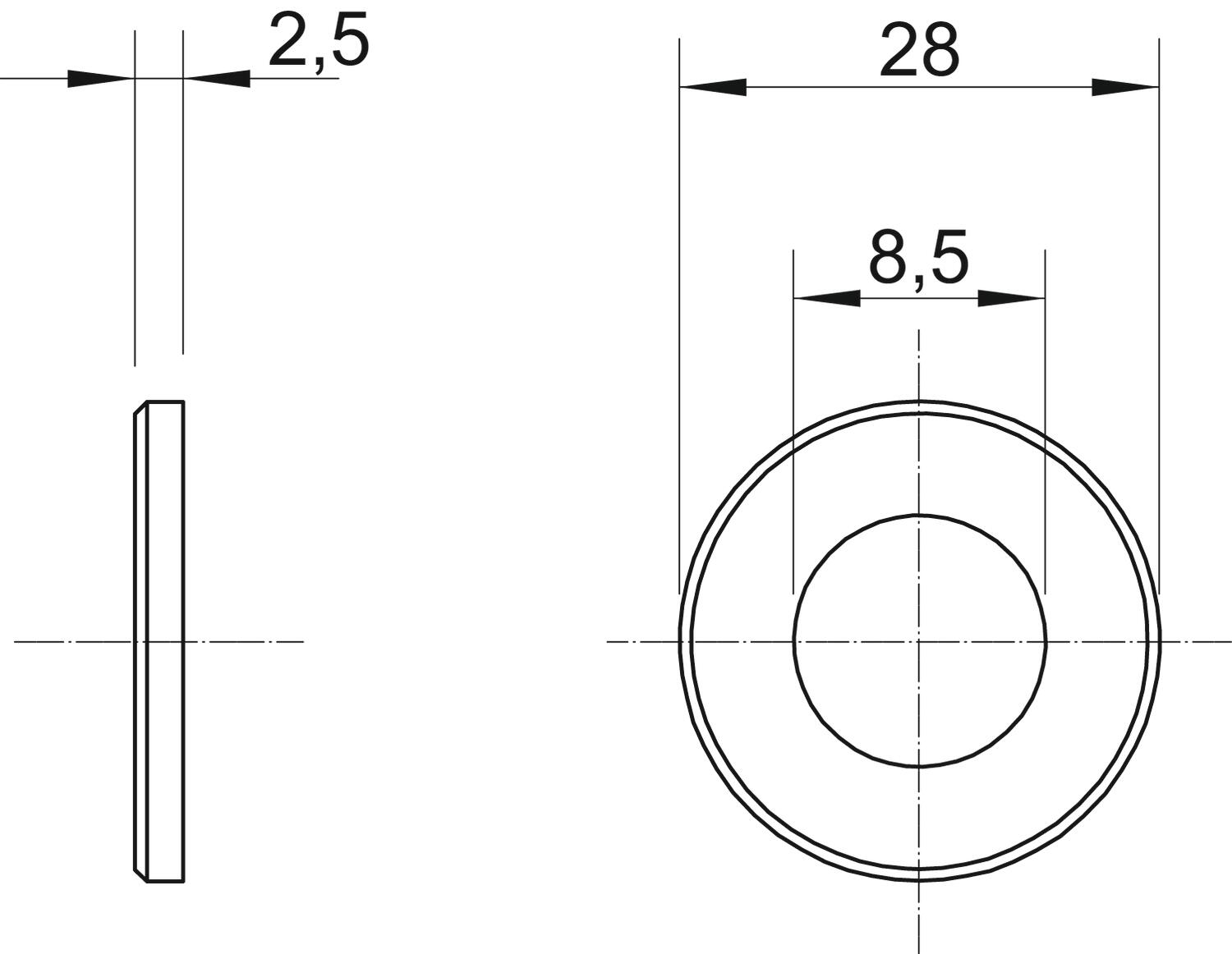

Scale drawing WS M8 D28 G / 3402215, 62.80 kB, jpg

WS M8 D28 G / 3402215
