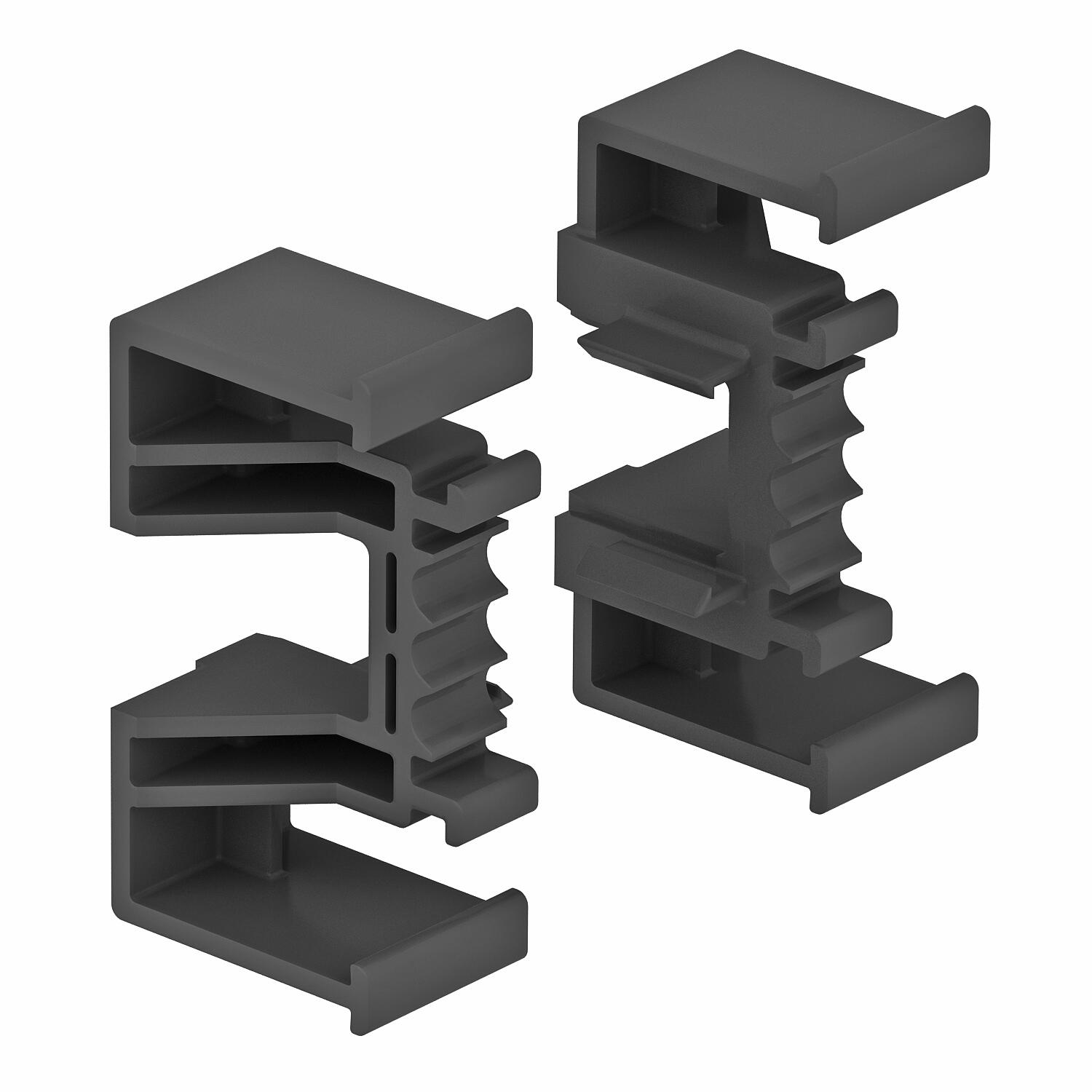

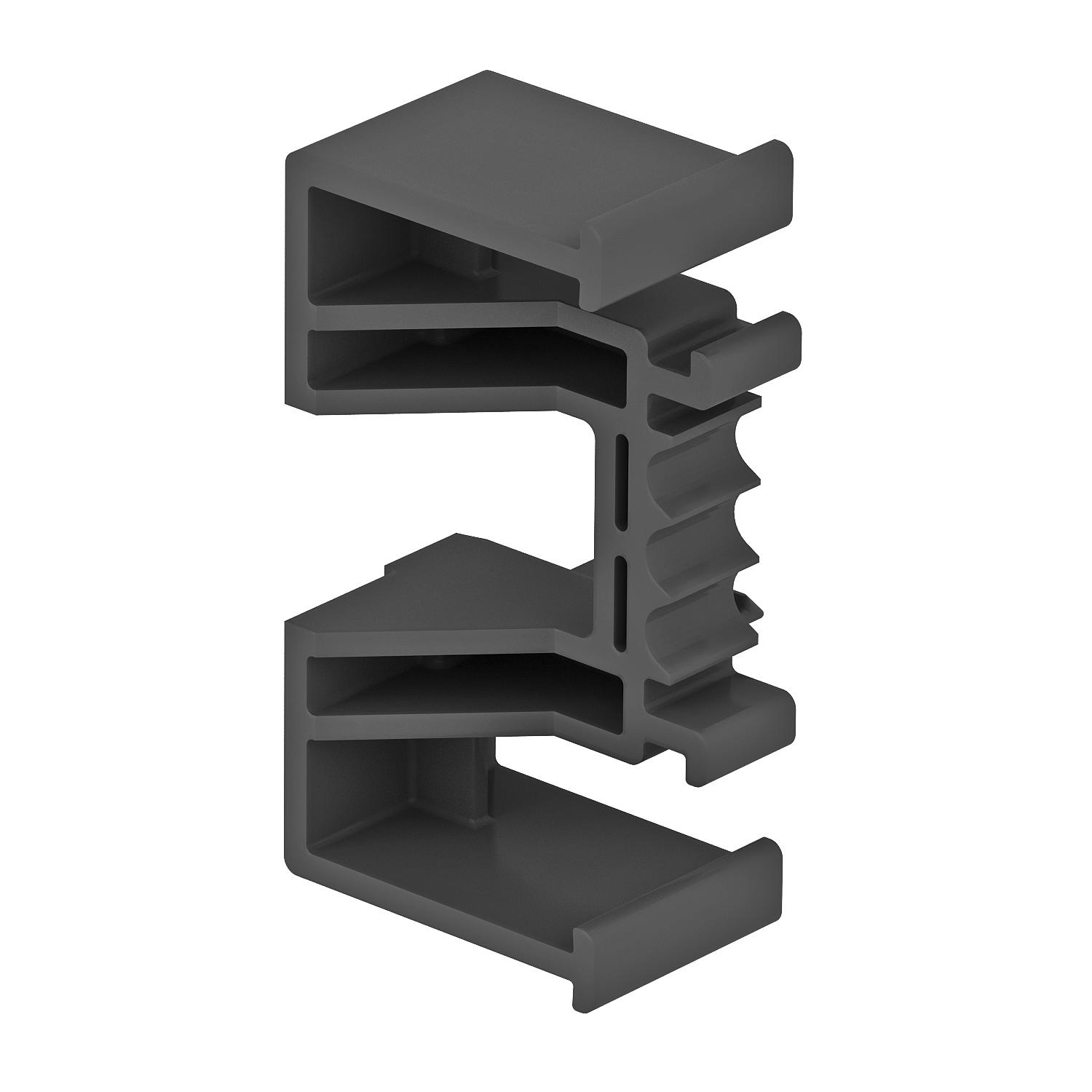

WDK adapter, device installation for 71GD series
Item no. 6024070 | EAN 4012195787235
- Product description
-
Product descriptionAdapter for the installation of accessory mounting boxes of the 71GD... series in WDK wall and ceiling trunking. The use of accessory mounting boxes, type 71GD8 and 71GD9, permit standardised installation of Modul 45 devices. Devices can be installed in the trunking heights 110, 130 and 150 mm. Combined with device covers of the AR45-... series, finished cover sections of the OT GE ... series can cover the switching and connection devices.
-
- Technical data
-
Technical data

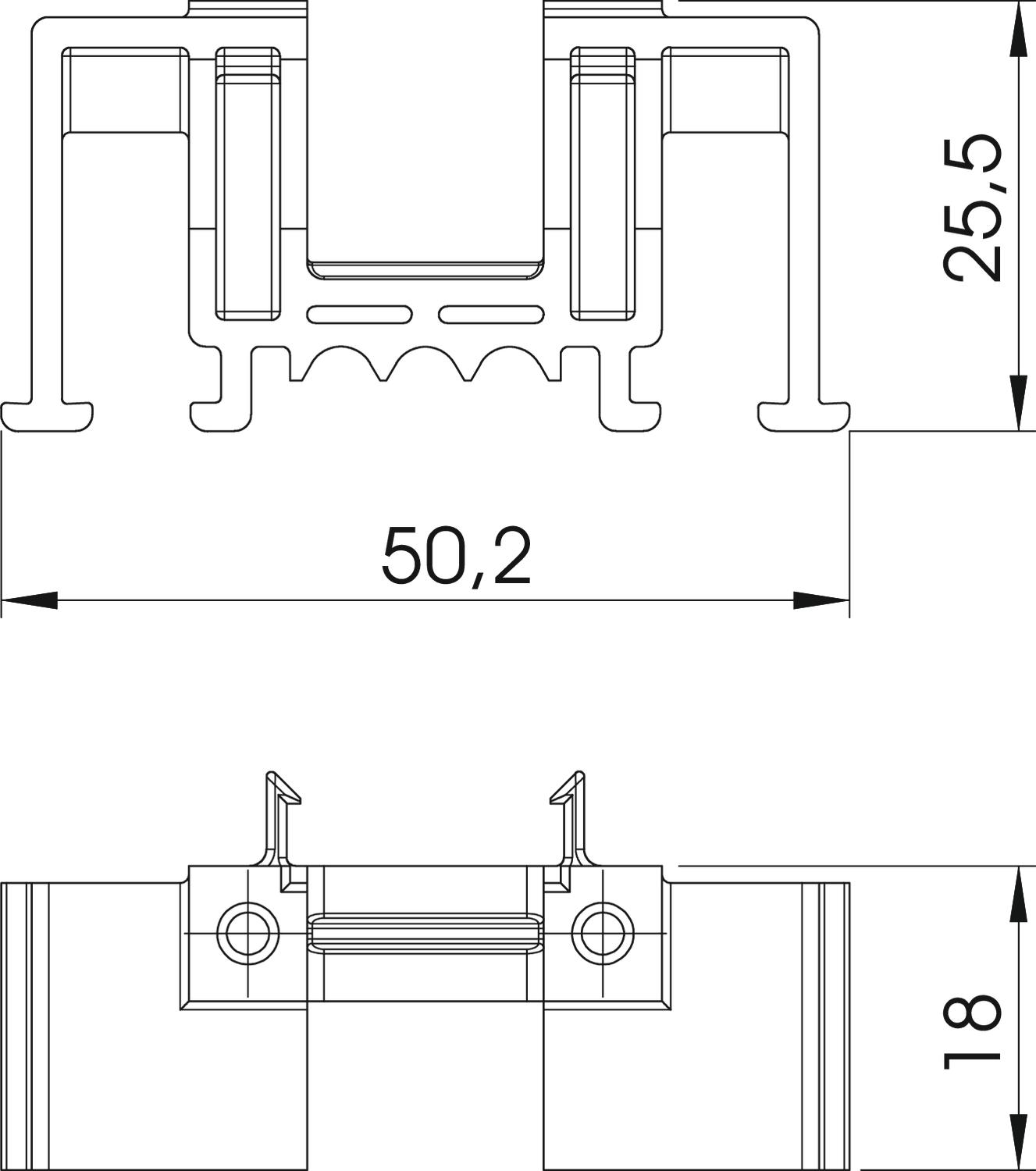

Accessories yes Dimension 47x17x25mm Halogen-free no Material Polyamide Spare part no - All types
- Downloads
-
Data sheet MA45WDK / 6024070 , 0.09MB , pdfCatalogue cable routing systems , 2.10MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity MA45WDK / 6024070 , 0.13MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfNo invitation to tender text is available for this product.
