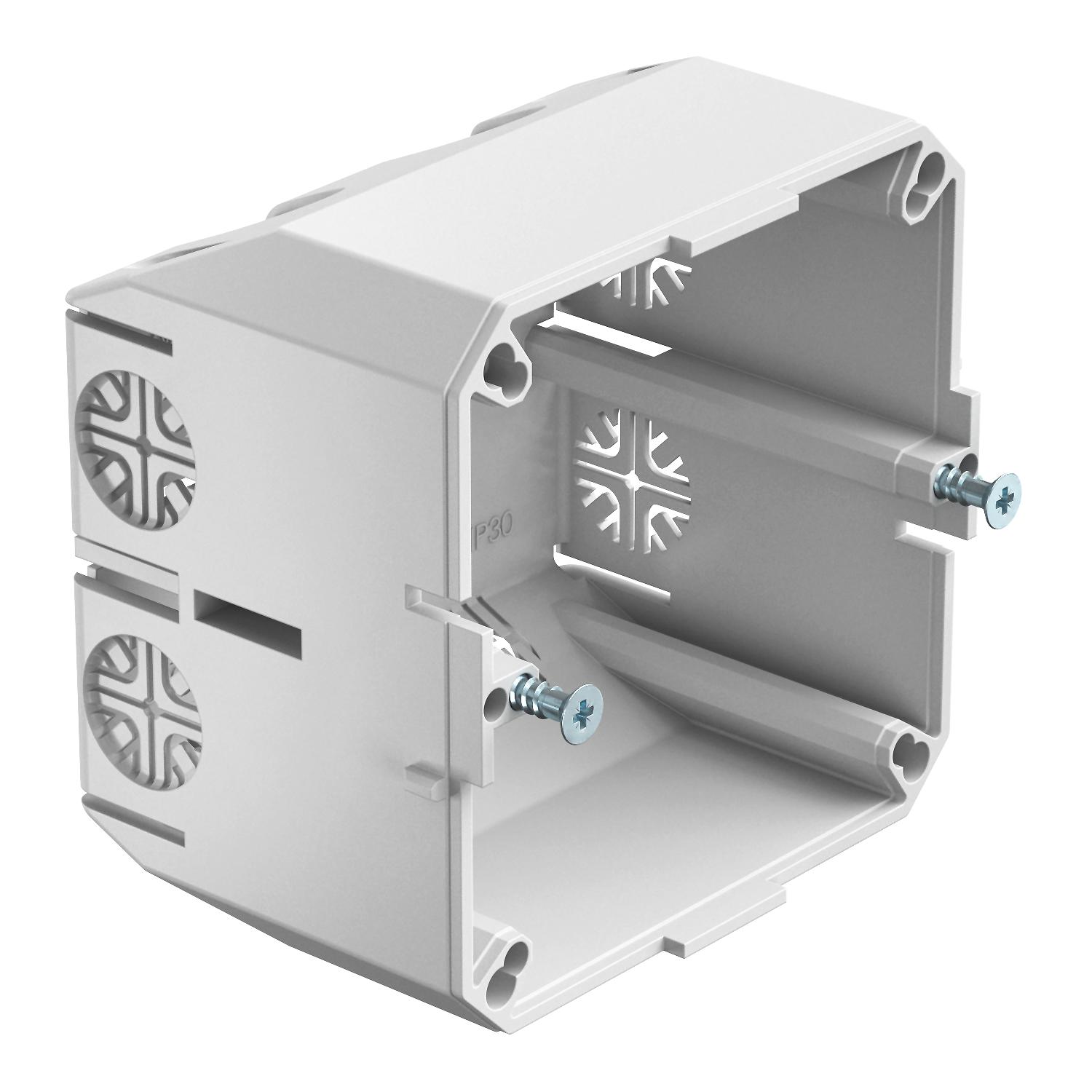

WDK device socket, type 2390
Item no. 6023207 | EAN 4012196024919
- Product description
-
Product descriptionAccessory mounting box for the installation of devices with support rings and support clamps in WDK cable routing trunking of 60 mm trunking height. The device socket is placed on the floor connectors and fastened in the centre with a bolt.
Single underfloor box
-
- Technical data
-
Technical data

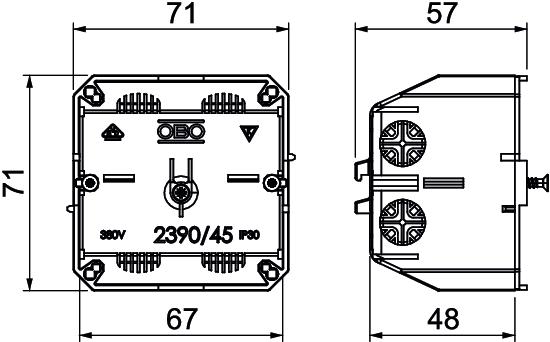

Colour Light grey; RAL 7035 CO₂ Footprint (GWP) Cradle-to-Gate 0,223 kg CO₂e / 1 Piece Halogen-free no Height 56,6 mm Length 75 mm Material Polyvinylchloride Number of units 1 Strain relief option no Version for Open Width 71 mm With connection compartment no - All types
- Downloads
-
Data sheet 2390 / 6023207 , 0.17MB , pdfCatalogue Cable routing systems , 17.62MB , pdfEU declaration of conformity 2390 / 6023207 , 0.13MB , pdfMounting instructions Mounting instructions Mounting aid WDK , 0.07MB , pdfMounting instructions Geräteeinbaudose 2390 , 4.43MB , pdfNo invitation to tender text is available for this product.
