- Product description
-
Product description

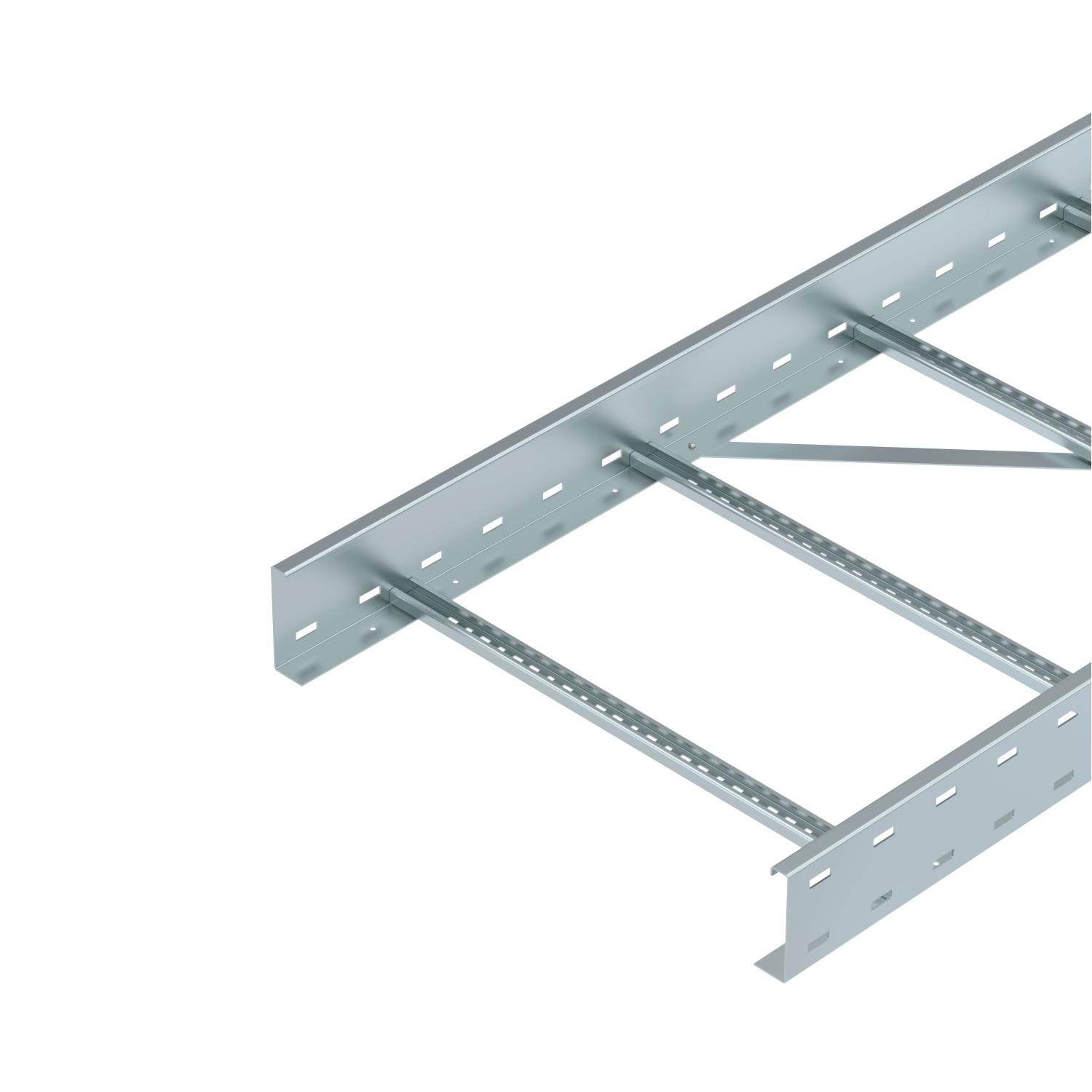

Wide span cable ladder with perforated side rails of side height of 110 mm. Fastening of cables with clamp clip, type 2056.

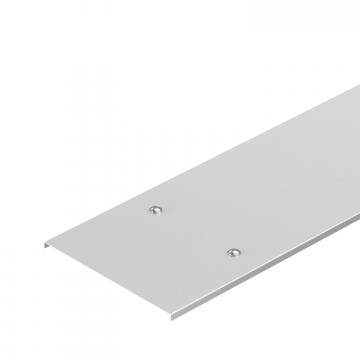

Magnetic shield insulation without cover 10 dB, with cover 15 dB.
- Technical data
-
Technical data
Dimension 110x600x6000 Dimension 110 x 600 Maintain electrical functions no Material Steel Rail thickness 2 mm Rustproof steel, pickled no Side perforation yes Side rail version Profile (open) Surface Strip galvanized Usable cross-section 56600 mm² Usable cross-section 566 cm² Version of the rungs Profile unperforated Wide-span version yes Dimensions
Dimension B 600 mm Dimension L 6000 mm Height 110 mm Length 6000 ft Length 6000 mm Rung slot dimension 17,00 Width 600 mm Loads
Support spacing 3.0 m 2,9 kN/m Support spacing 3.5 m 2,48 kN/m Support spacing 4.0 m 2,1 kN/m Support spacing 4.5 m 1,78 kN/m Support spacing 5.0 m 1,5 kN/m Support spacing 6.0 m 1 kN/m Support spacing 7.0 m 0,7 kN/m Technical data

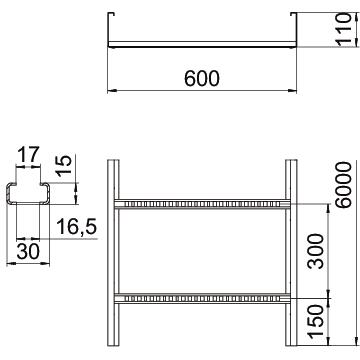

Load diagram, wide span cable ladder, type WKLG 110
- Permitted cable tray/ladder load in kN/m without man load
- Support width in m
- Rail bend in mm at permitted kN/m
- Load scheme during testing
- Load curve with cable tray/ladder width in mm
- Strut bend curve according to support width
- All types
- Downloads
-
Data sheet WKLG 1160 FS / 6311024 , 0.31MB , pdfDeclaration of conformity WKLG 1160 FS / 6311024 , 0.17MB , pdfREACH Declaration of conformity WKLG 1160 FS / 6311024 , 0.12MB , pdfRoHS Declaration of conformity WKLG 1160 FS / 6311024 , 0.12MB , pdfSustainability report Sustainability report, cable support systems , 2.00MB , pdf
