Wire cable clamp A4

Item no. 5302188 | EAN 4012195901389

Item no. / Types

for cable diameter, min.

Product description

Product description

Wire cable clamp for fastening steel wire tensioning ropes.

Technical data

Technical data

Dimension	10mm
Dimension A	42 mm
Dimension B	11 mm
Dimension C	8 mm

for cable diameter, min.	10 mm
Material	Stainless steel
Surface	Bright, treated
Version for	Not insulated

All types

All types

Types	for cable diameter, min.	Item no.	Quantity	SSU
947 3 A4	3 mm	5302170	piece	25 piece
947 5 A4	5 mm	5302174	piece	25 piece
947 6 A4	6 mm	5302178	piece	25 piece
947 8 A4	8 mm	5302182	piece	10 piece
947 10 A4	10 mm	5302188	piece	10 piece

Downloads

Data sheet 947 10 A4 / 5302188 , 0.21MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity EU declaration of conformity ,

Download

EU declaration of conformity EU declaration of conformity ,

Download

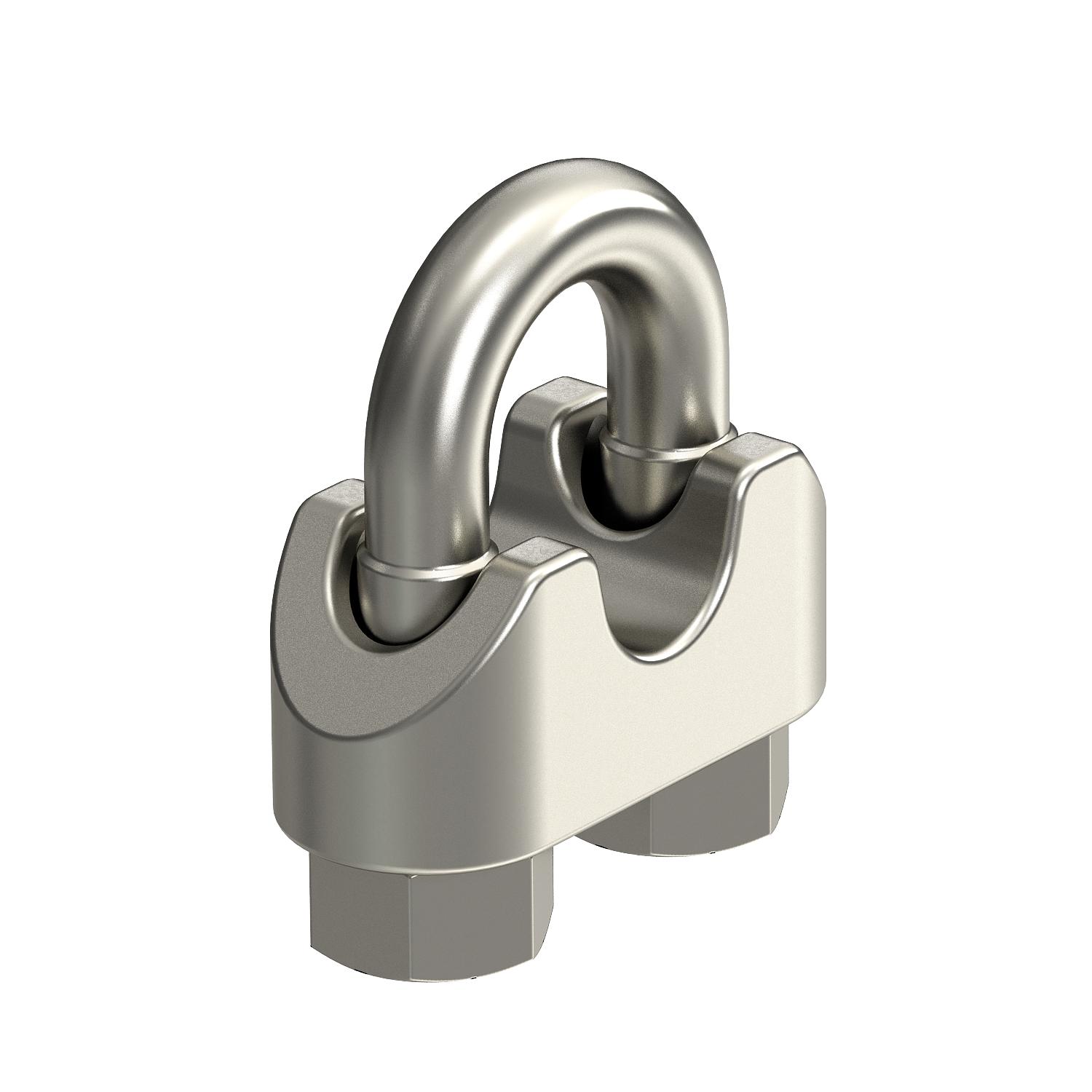

Product graphic 947 10 A4 / 5302188, 82.03 kB, jpg

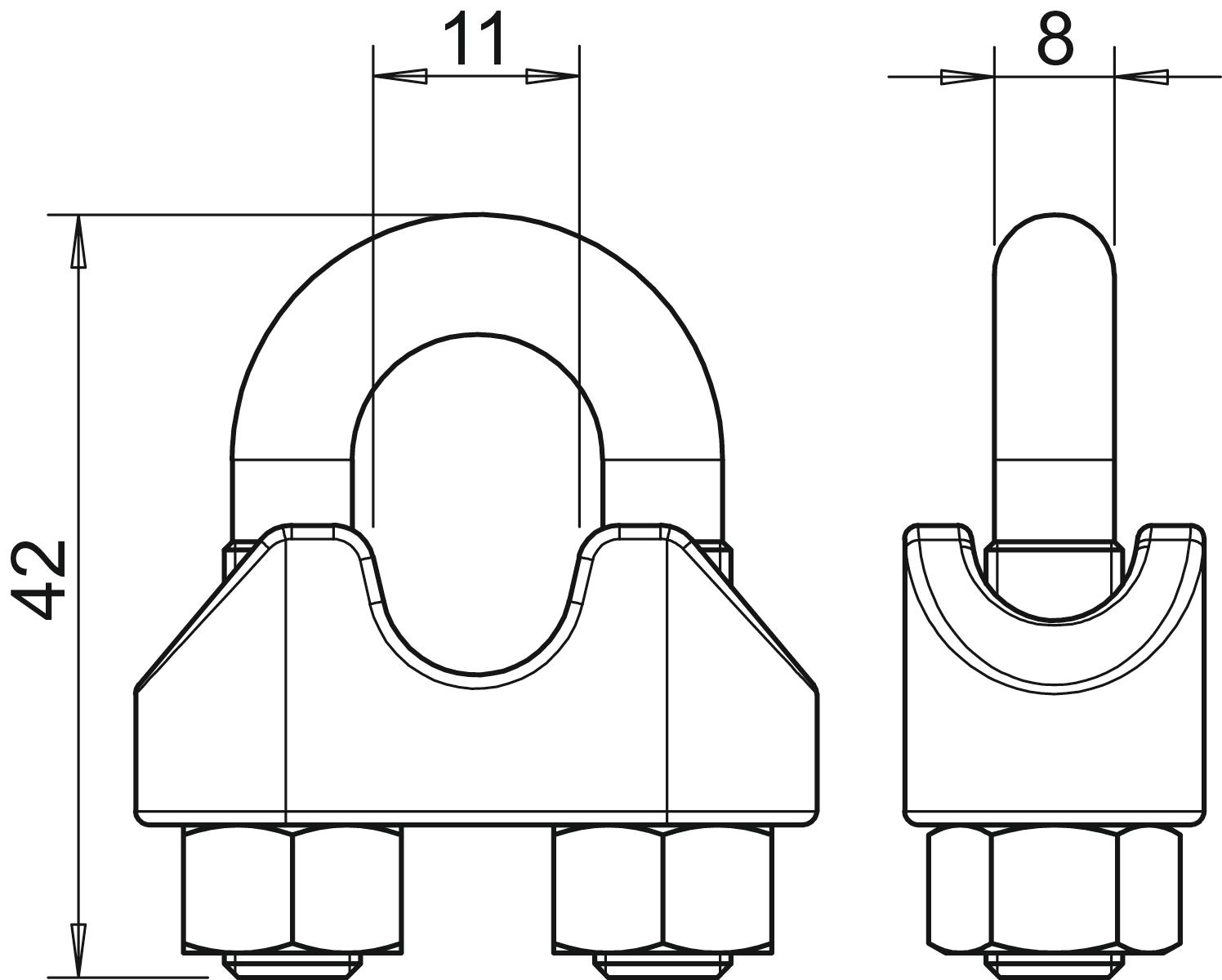

Scale drawing 947 10 A4 / 5302188, 87.52 kB, jpg

947 10 A4 / 5302188
