Wire cable clamp G 3 |

morepic-1

morepic-2

Wire cable clamp G

Item no. 5302021 | EAN 4012195414551

Item no. / Types

for cable diameter, min.

Product description

Product description

Wire cable clamp for fastening steel wire tensioning ropes.

Technical data

Technical data

Dimension	3mm
Dimension A	20 mm
Dimension B	4 mm
Dimension C	4 mm

for cable diameter, min.	3 mm
Material	Steel
Surface	Electrogalvanized
Version for	Not insulated

All types

All types

Types	for cable diameter, min.	Item no.	Quantity	SSU
947 3 G	3 mm	5302021	piece	25 piece
947 5 G	5 mm	5302056	piece	25 piece
947 6 G	6 mm	5302064	piece	25 piece
947 8 G	8 mm	5302080	piece	10 piece
947 10 G	10 mm	5302102	piece	10 piece

Downloads

Data sheet 947 3 G / 5302021 , 0.15MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity Declaration of conformity ,

Download

Declaration of conformity Declaration of conformity ,

Download

REACH Declaration of conformity 947 3 G / 5302021 , 0.12MB , pdf

Download

RoHS Declaration of conformity 947 3 G / 5302021 , 0.12MB , pdf

Download

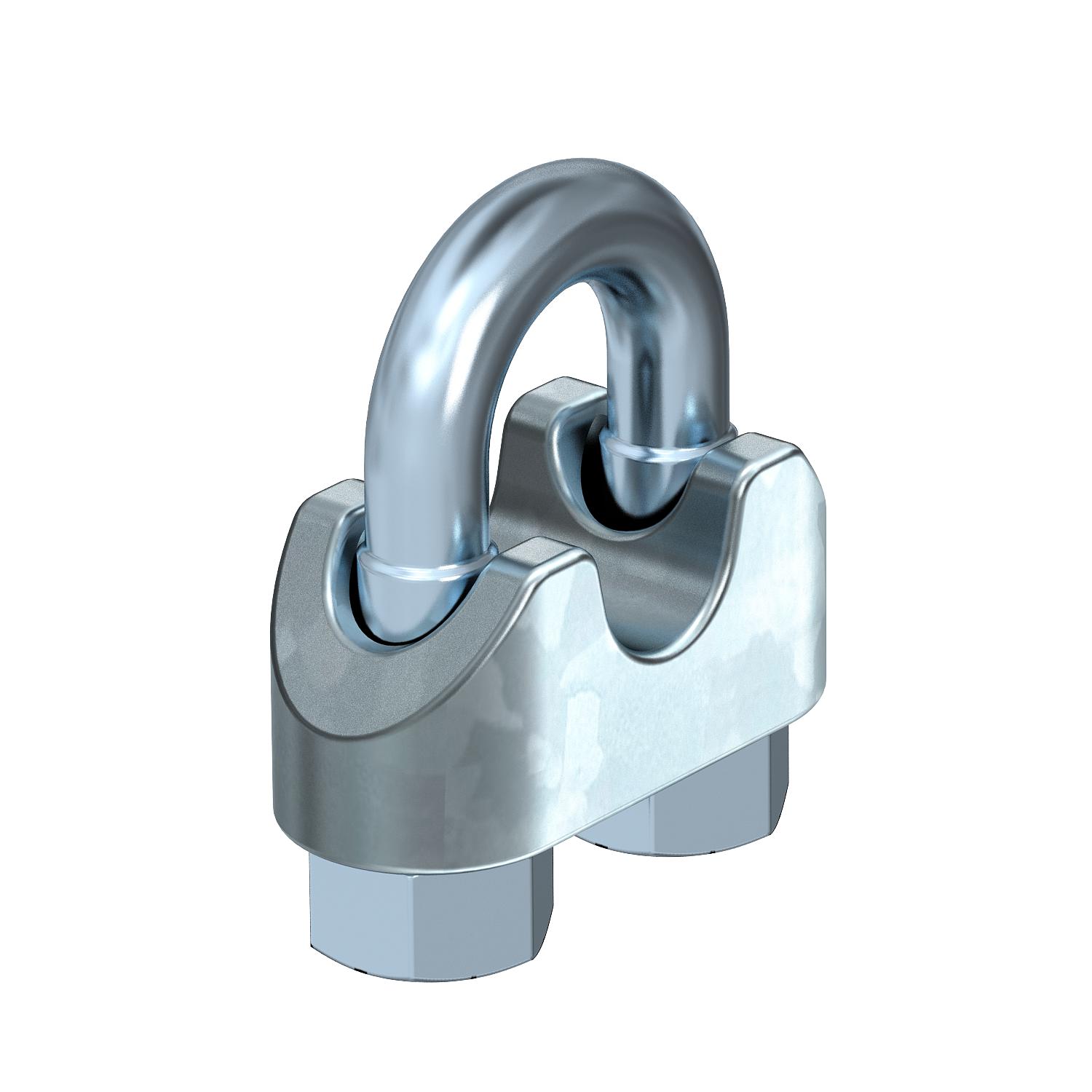

Product graphic 947 3 G / 5302021, 82.11 kB, jpg

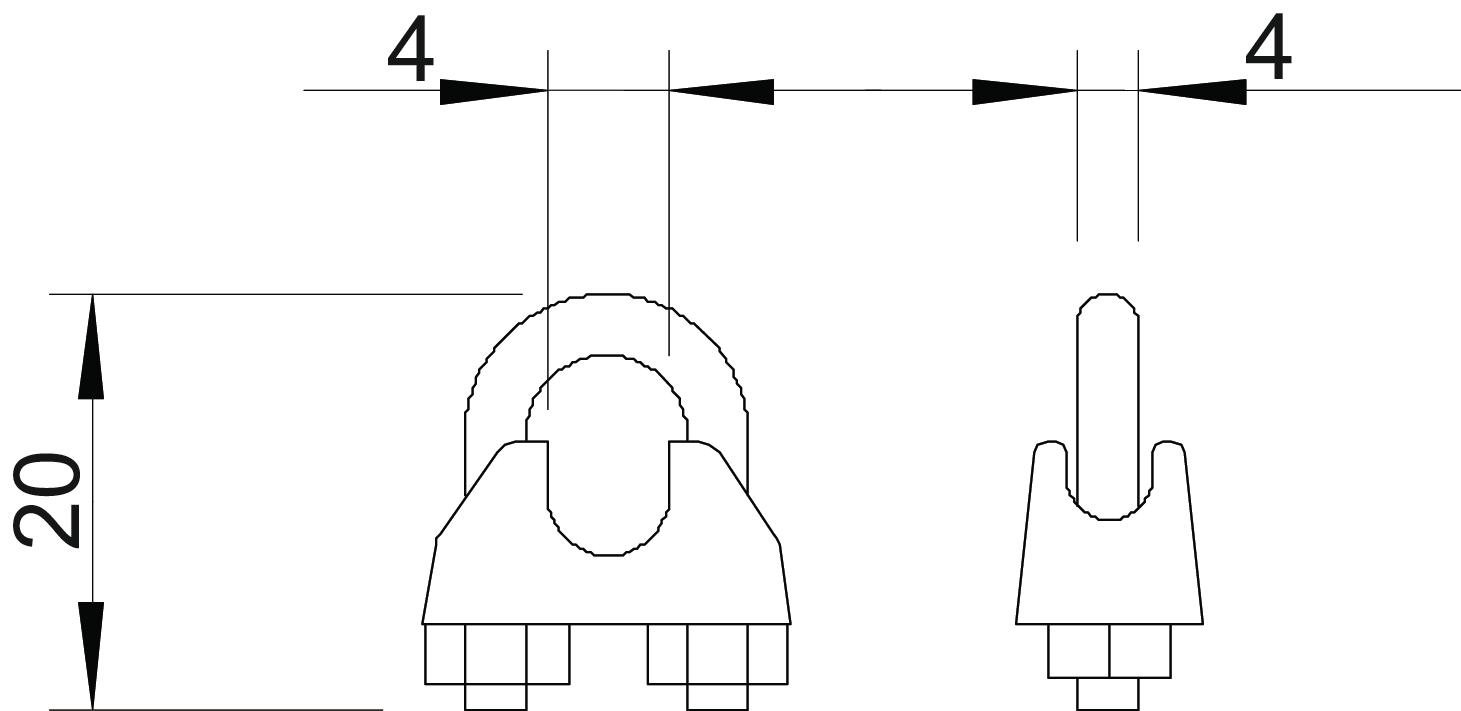

Scale drawing 947 3 G / 5302021, 35.98 kB, jpg

947 3 G / 5302021
