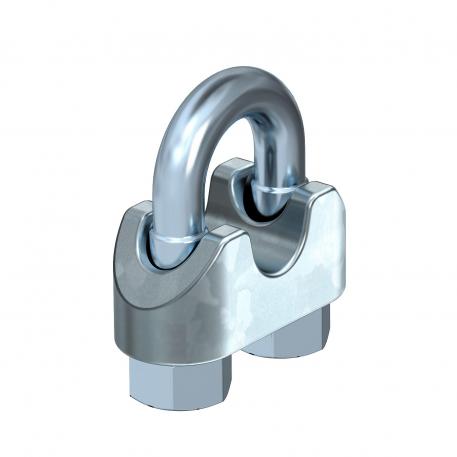

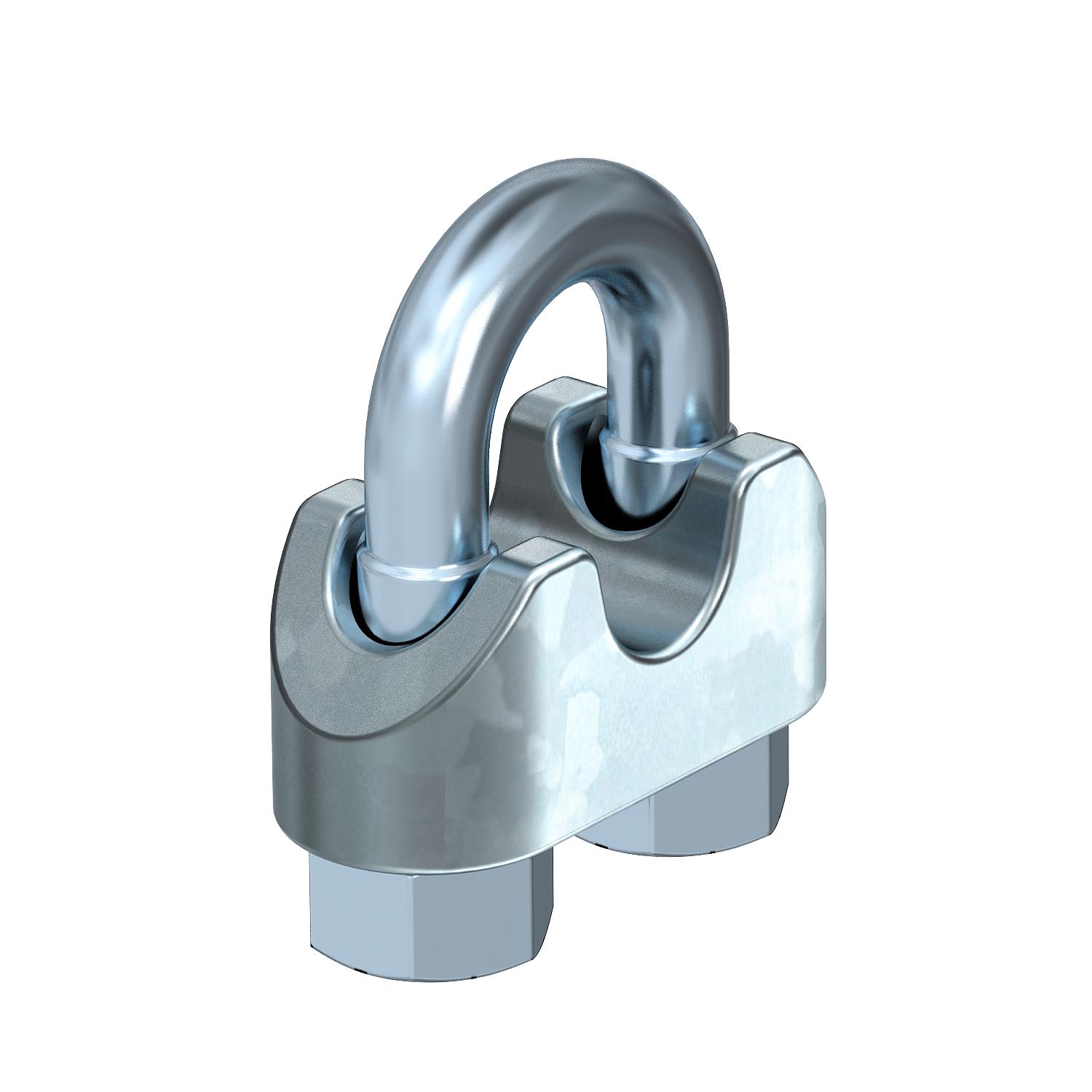

Wire cable clamp G

Item no. 5302056 | EAN 4012195414612

Item no. / Types

for cable diameter, min.

Product description

Product description

5 mm wire cable clamp

Technical data

Technical data

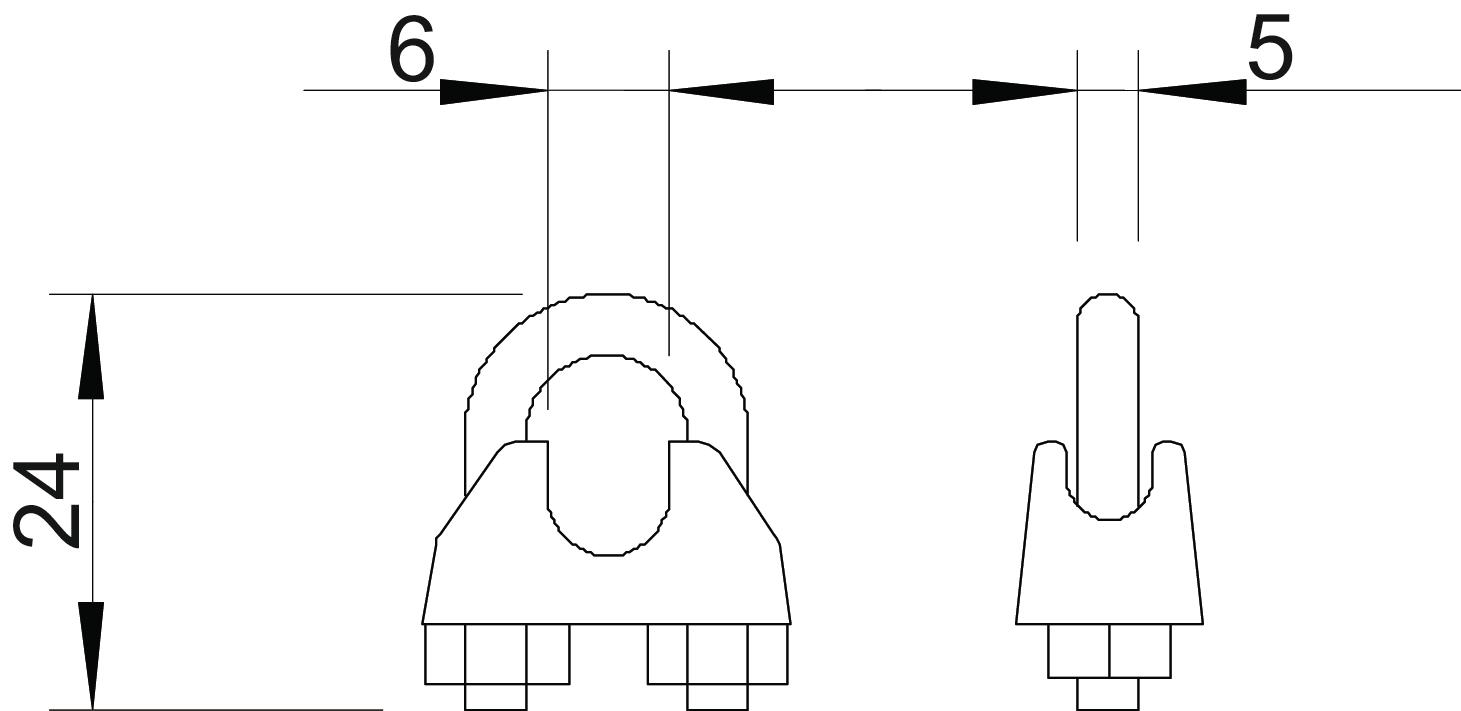

Dimension	5mm
Dimension A	24 mm
Dimension B	6 mm
Dimension C	5 mm

for cable diameter, min.	5 mm
Material	Steel
Surface	Electrogalvanized
Version for	Not insulated

All types

All types

Types	for cable diameter, min.	Item no.	Quantity	SSU
947 3 G	3 mm	5302021	piece	25 piece
947 5 G	5 mm	5302056	piece	25 piece
947 6 G	6 mm	5302064	piece	25 piece
947 8 G	8 mm	5302080	piece	10 piece
947 10 G	10 mm	5302102	piece	10 piece
