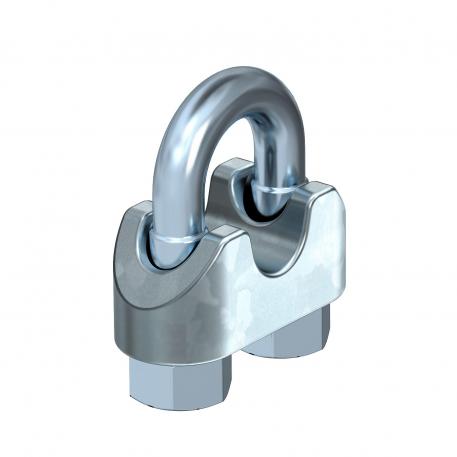

Wire cable clamp G 6 |

morepic-1

morepic-2

Wire cable clamp G

Item no. 5302064 | EAN 4012195414674

Item no. / Types

for cable diameter, min.

Product description

Product description

6 mm wire cable clamp

Technical data

Technical data

Dimension	6mm
Dimension A	28 mm
Dimension B	8 mm
Dimension C	5 mm

for cable diameter, min.	6 mm
Material	Steel
Surface	Electrogalvanized
Version for	Not insulated

All types

All types

Types	for cable diameter, min.	Item no.	Quantity	SSU
947 3 G	3 mm	5302021	piece	25 piece
947 5 G	5 mm	5302056	piece	25 piece
947 6 G	6 mm	5302064	piece	25 piece
947 8 G	8 mm	5302080	piece	10 piece
947 10 G	10 mm	5302102	piece	10 piece

Downloads

Data sheet 947 6 G / 5302064 , 0.17MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

EU declaration of conformity EU declaration of conformity ,

Download

EU declaration of conformity EU declaration of conformity ,

Download

REACH Declaration of conformity 947 6 G / 5302064 , 0.12MB , pdf

Download

RoHS Declaration of conformity 947 6 G / 5302064 , 0.12MB , pdf

Download

Product graphic 947 6 G / 5302064, 82.11 kB, jpg

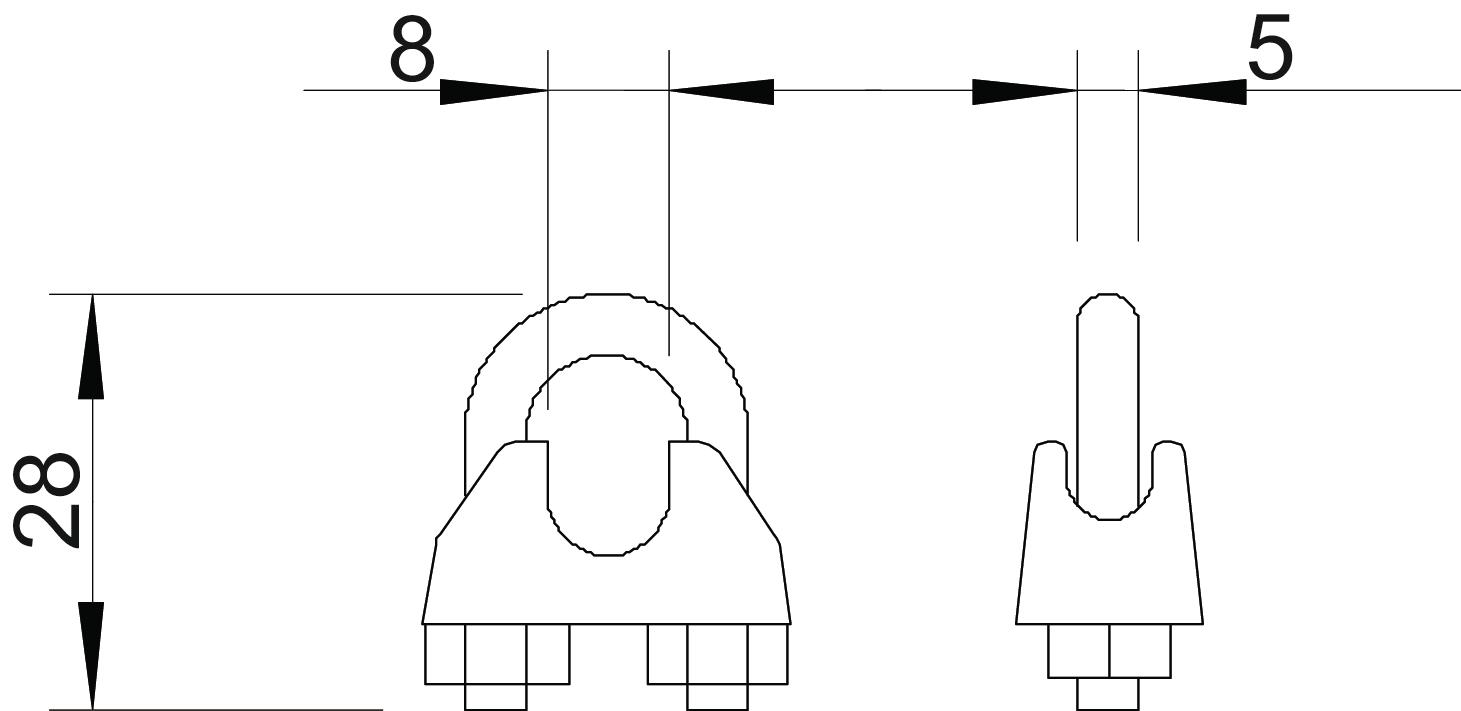

Scale drawing 947 6 G / 5302064, 36.90 kB, jpg

947 6 G / 5302064
