Wire end sleeve for aluminium cables 50 mm²

Item no. 5021740 | EAN 4012196792245

Product description
Product description
Wire end sleeve for secure fixing of the aluminium cable with a cross-section of 50 mm².



Technical data

Technical data

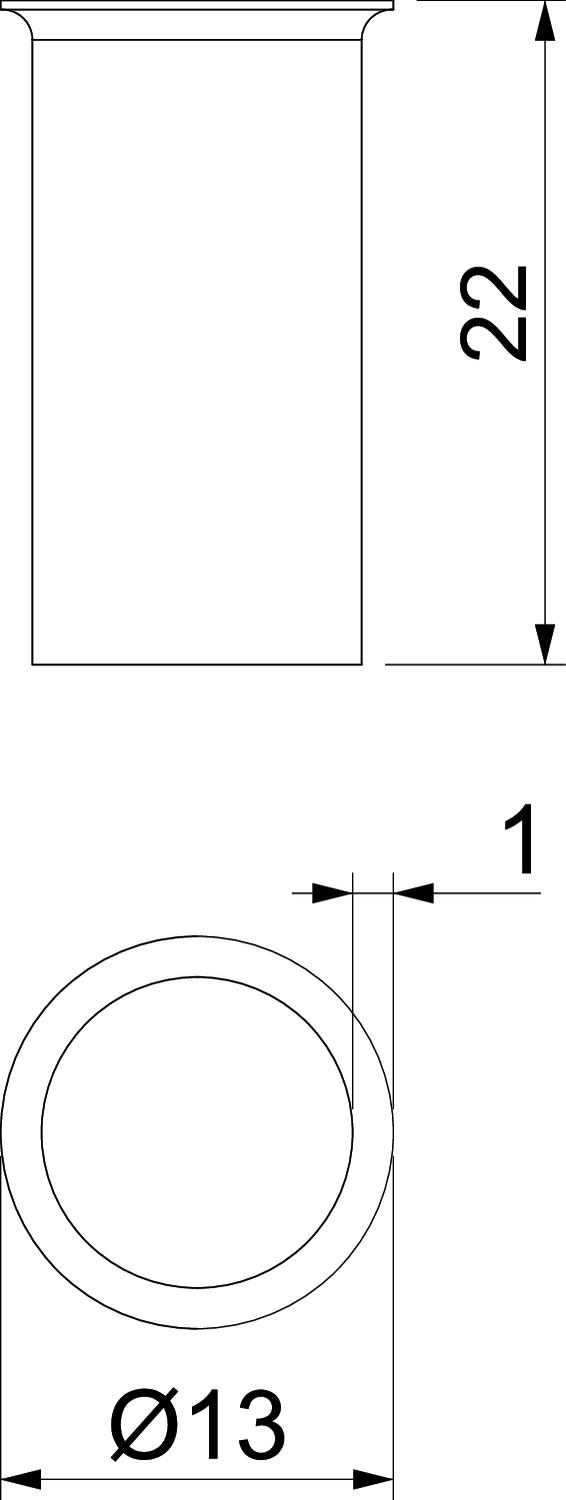

Dimension 10x22
Dimension L 22 mm
Fit 9 mm mm
for cable diameter, max. 9 mm
for cable diameter, min. 9 mm
Insulator no
Length 22 mm
Material Copper
Surface Tin-plated
Type wire end sleeve Standard
Usable cross-section 50 mm²
All types

All types

Types Item no. Quantity SSU
AEH S 9-AL 5021740
250 piece
