Wire retainer for type LKVH

Item no. 6178650 | EAN 4012196017829

6178650 / LKV H H
56 mm
25 mm
Product description

Product description

Wire retainer for halogen-free wiring trunking, type LKVH. The wire retainer prevents already inserted cables from falling out. These predetermined breaking points allow the length to be reduced for various trunking widths to 38, 28 and 23 mm.


  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Adjustable to duct width yes
Colour Light grey; RAL 7035

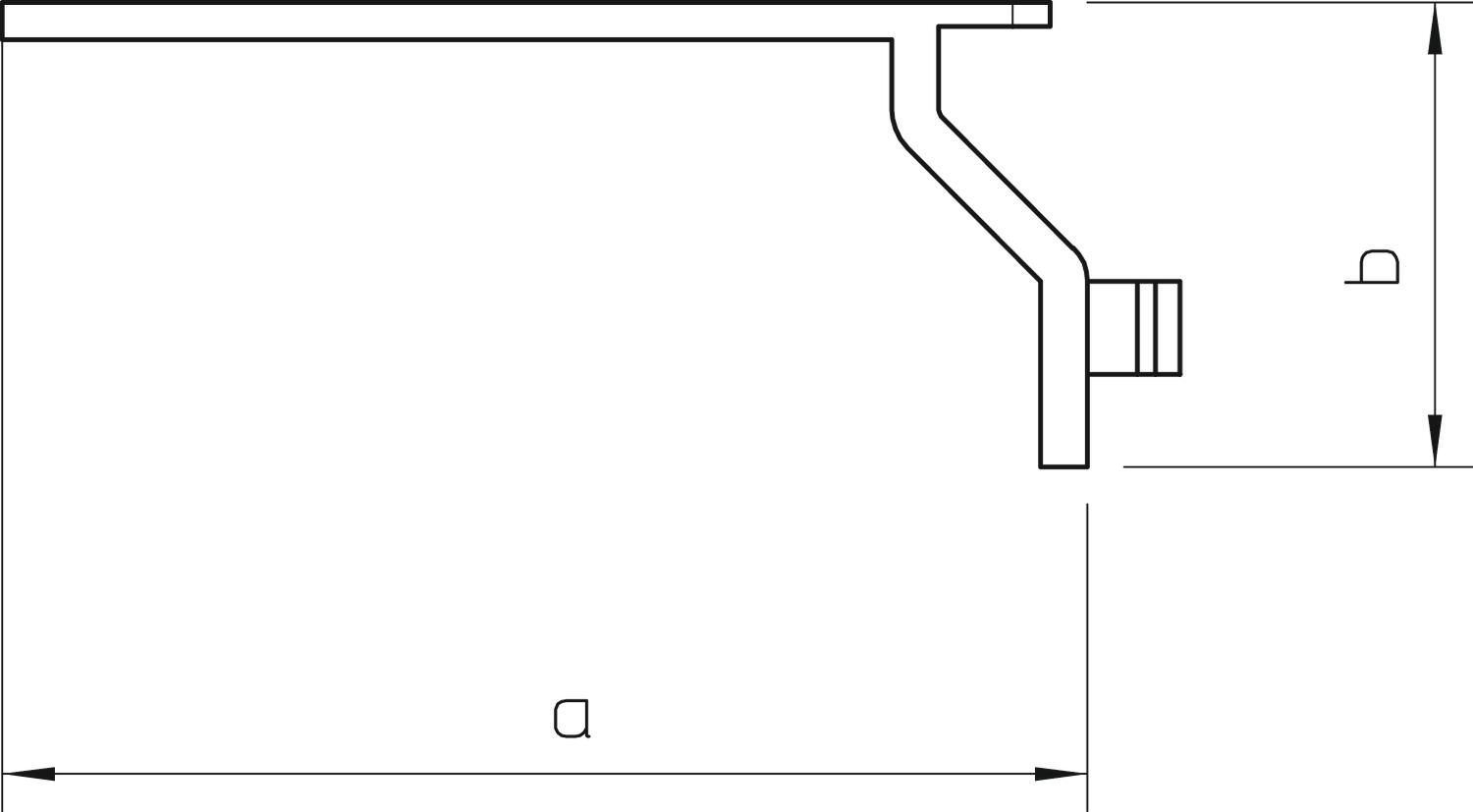

Dimension a 56 mm
Dimension b 25 mm
Halogen-free yes
Height 25 mm
Material Polystyrene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Width 56 mm
All types

All types

Types Dimension a Dimension b Item no. Quantity SSU
LKV H H 56 mm 25 mm 6178650
100 piece
