Wiring trunking, type LK4 60080 2000 | 80 | 60 | Base perforation | Stone grey; RAL 7030

Wiring trunking, type LK4 60080

Item no. 6178035 | EAN 4012196001613

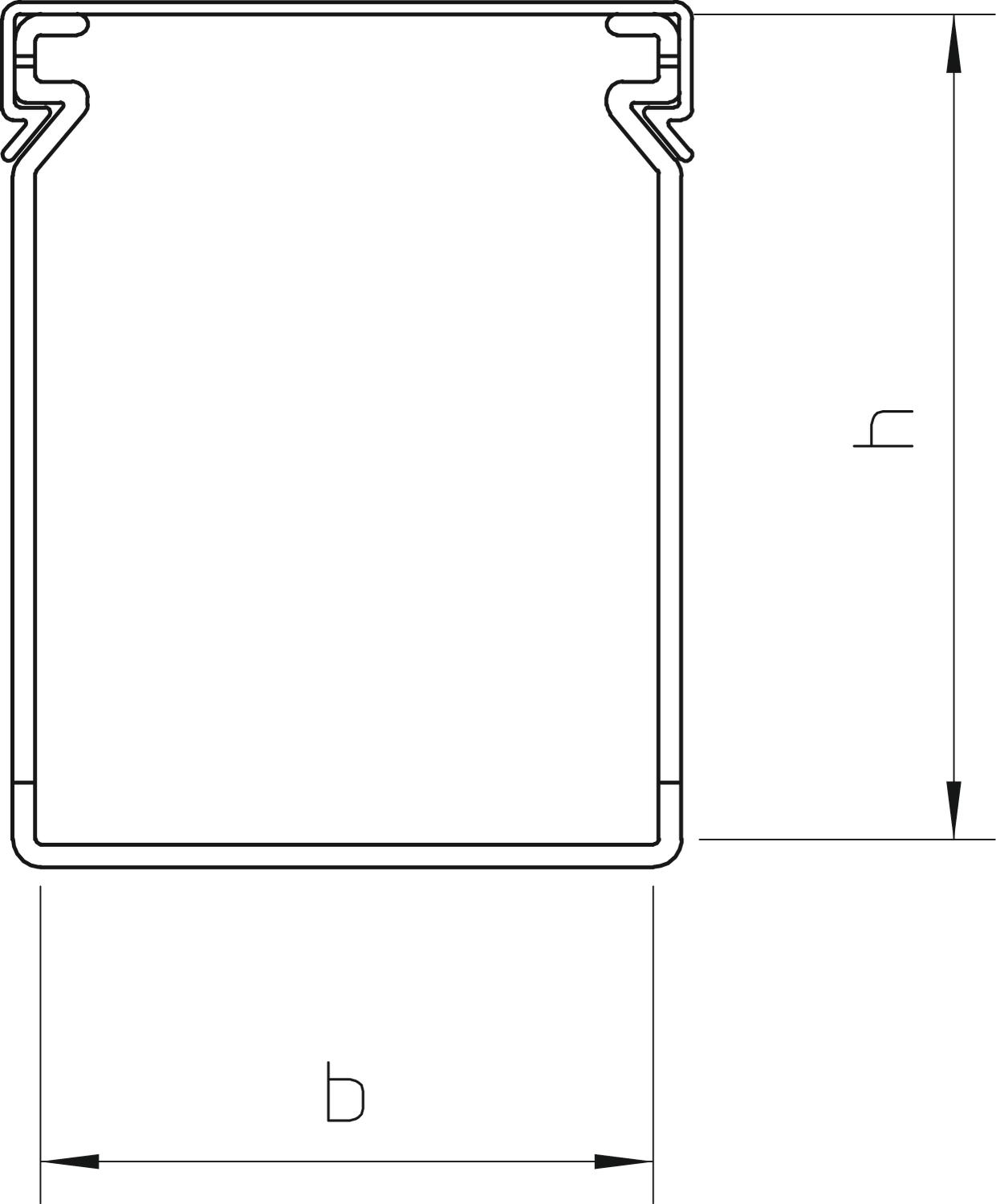

Item no. / Types	6178035 / LK4 60080

Length	2000 mm

Width	80 mm

Height	60 mm

Fastening type	Base perforation

Colour	Stone grey; RAL 7030

Product description

Product description

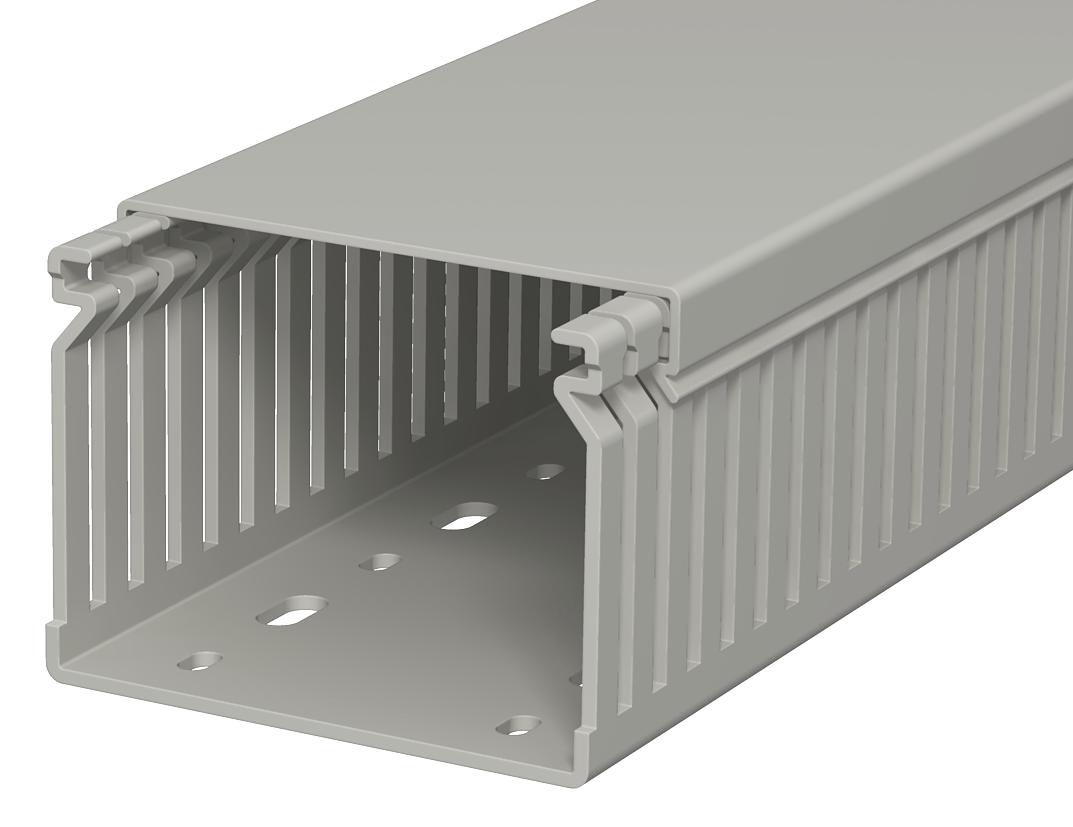

Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.

Technical data

Technical data

Colour	Stone grey; RAL 7030
Creepage current-resistant	yes
Dimension	60x80x2000
Fastening type	Base perforation
Flexible	no
Halogen-free	no
Height	60 mm
Length	2000 mm
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Self-extinguishing	yes
Side wall version	Slotted
Slot spacing	10 mm
Slot width	4 mm
Usable cross-section	46,13 cm²
Width	80 mm
With cover	yes

All types

All types

Types	Length	Width	Height	Fastening type	Colour	Item no.	Quantity	SSU
LK4 60080	2000 mm	80 mm	60 mm	Base perforation	Stone grey; RAL 7030	6178035	m	24 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Wire retainer for type LK4 and LK4 N	LK4 H	6178092	piece	100 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Spreading rivet, KSN 1	KSN1	6178520	piece	100 piece
Body-bound rivet, KSN 22	KSN22	6178525	piece	100 piece
Plastic rivet tool KNW1	KNW1	6178527	piece	1 piece
Plastic rivet tool KNW2	KNW2	6178529	piece	1 piece
Release pliers	AKZ2	6178533	piece	1 piece
Spacer	AH1	6178540	piece	100 piece
Spacer	AH2	6178542	piece	100 piece
