- Product description
-
Product description

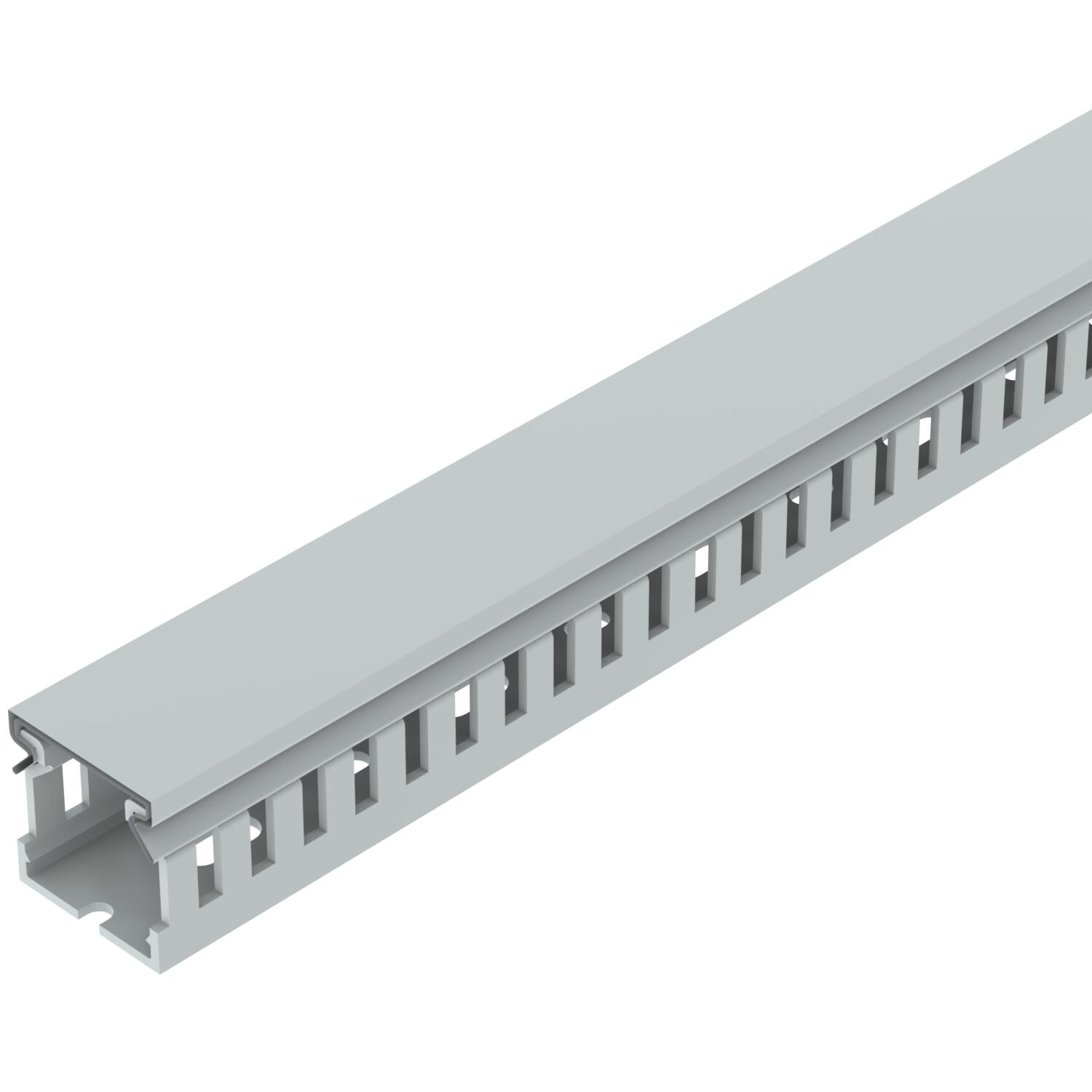

Halogen-free wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. With double-sided adhesive tape on the duct base as a mounting aid. Designed as a metric duct. Retainers are broken out without tools. Special lengths on request.
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Creepage current-resistant yes Fastening type Base perforation Flexible no Halogen-free yes Material Polycarbonate/Acrylnitrile-butadiene-styrene Permitted temperature range, max. 90 °C Permitted temperature range, min. -25 °C Self-extinguishing yes Side wall version Slotted Slot spacing 5,5 mm Slot width 4,5 mm Usable cross-section 6,31 cm² With cover yes Dimensions

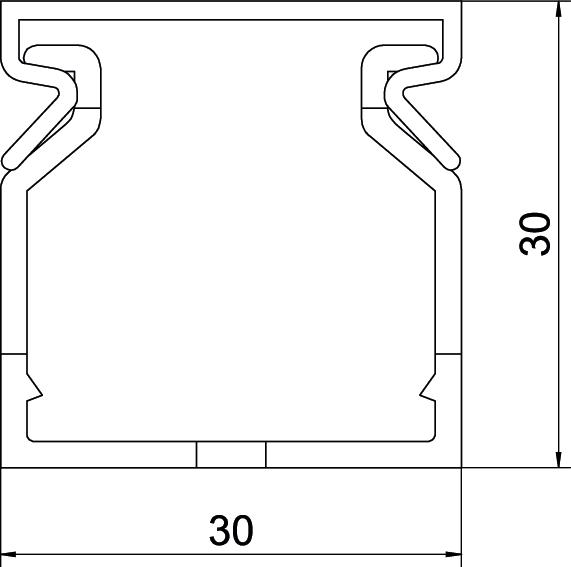

Height 30 mm Length 2000 mm Width 30 mm - All types
- Downloads
-
Data sheet LK4H 30030 / 6132540 , 0.22MB , pdfDeclaration of conformity LK4H 30030 / 6132540 , 0.17MB , pdfREACH Declaration of conformity LK4H 30030 / 6132540 , 0.09MB , pdfRoHS Declaration of conformity LK4H 30030 / 6132540 , 0.09MB , pdfMounting instructions Mounting instructions, LK4/LK4H/LKV/LKVH wiring duct , 5.49MB , pdf
