Wiring trunking, type LK4H 40025 2000 | 25 | 40 | Base perforation | Light grey; RAL 7035
morepic-1 morepic-2

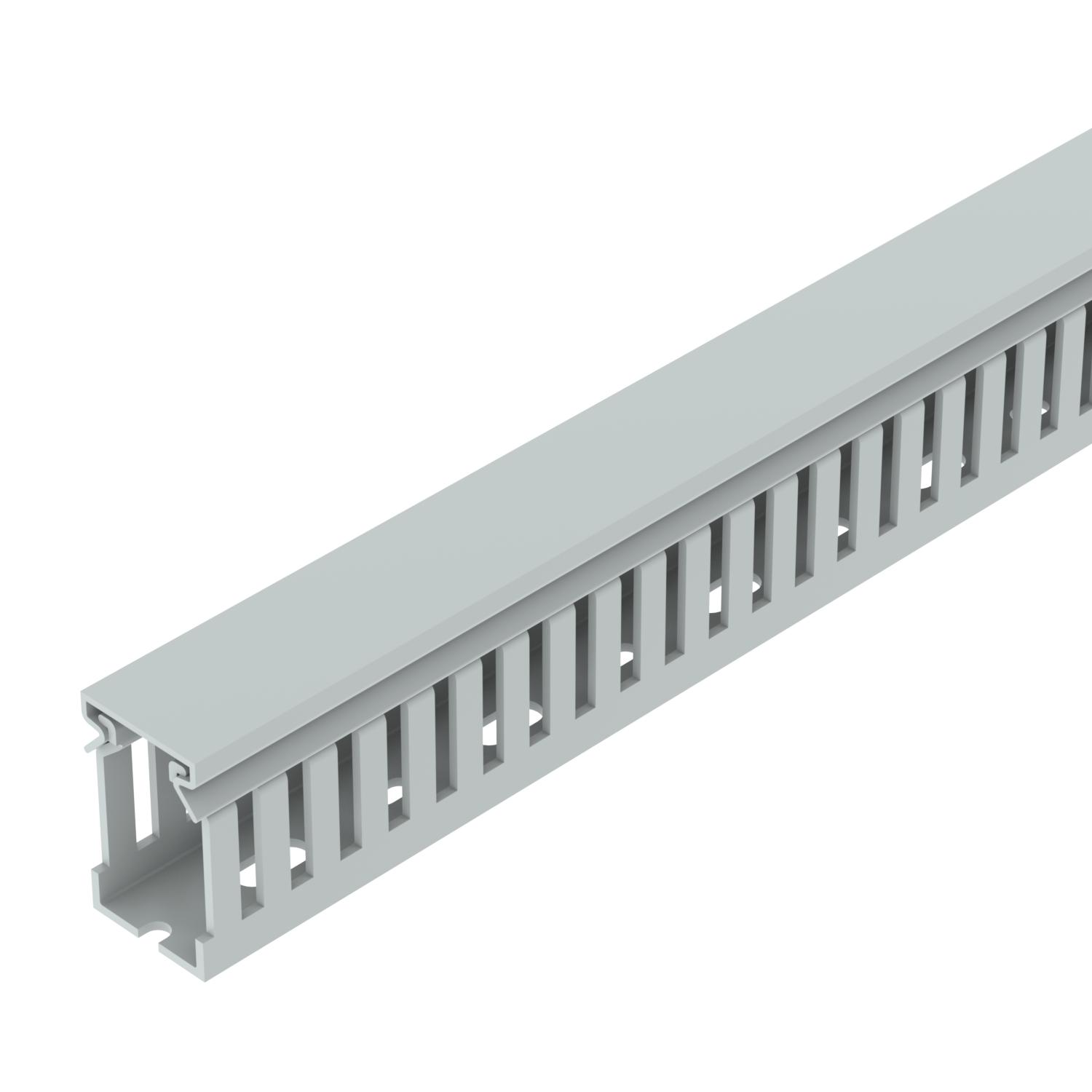

Wiring trunking, type LK4H 40025

Item no. 6132544 | EAN 4012196718863

6132544 / LK4H 40025
2000 mm
25 mm
40 mm
Base perforation
Light grey; RAL 7035
Product description

Product description

Halogen-free wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. With double-sided adhesive tape on the duct base as a mounting aid. Designed as a metric duct. Retainers are broken out without tools. Special lengths on request.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Light grey; RAL 7035
Creepage current-resistant yes
Fastening type Base perforation
Flexible no
Halogen-free yes

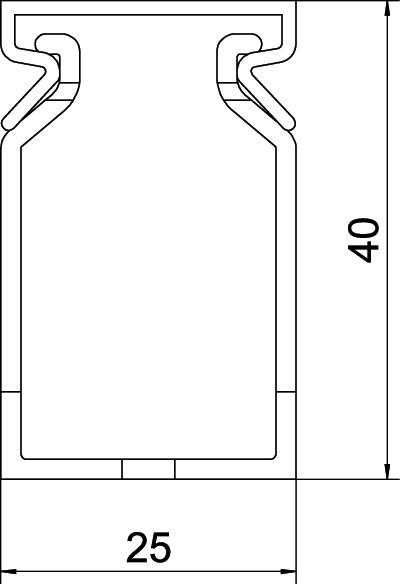

Height 40 mm
Length 2000 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -25 °C
Self-extinguishing yes
Side wall version Slotted
Slot spacing 5,5 mm
Slot width 4,5 mm
Usable cross-section 6,91 cm²
Width 25 mm
With cover yes
All types

All types

Types Length Width Height Fastening type Colour Item no. Quantity SSU
LK4H 40025 2000 mm 25 mm 40 mm Base perforation Light grey; RAL 7035 6132544
68 m
