Wiring trunking, type LK4H N 10040 2000 | 40 | 100 | Base perforation | Light grey; RAL 7035
morepic-1 morepic-2

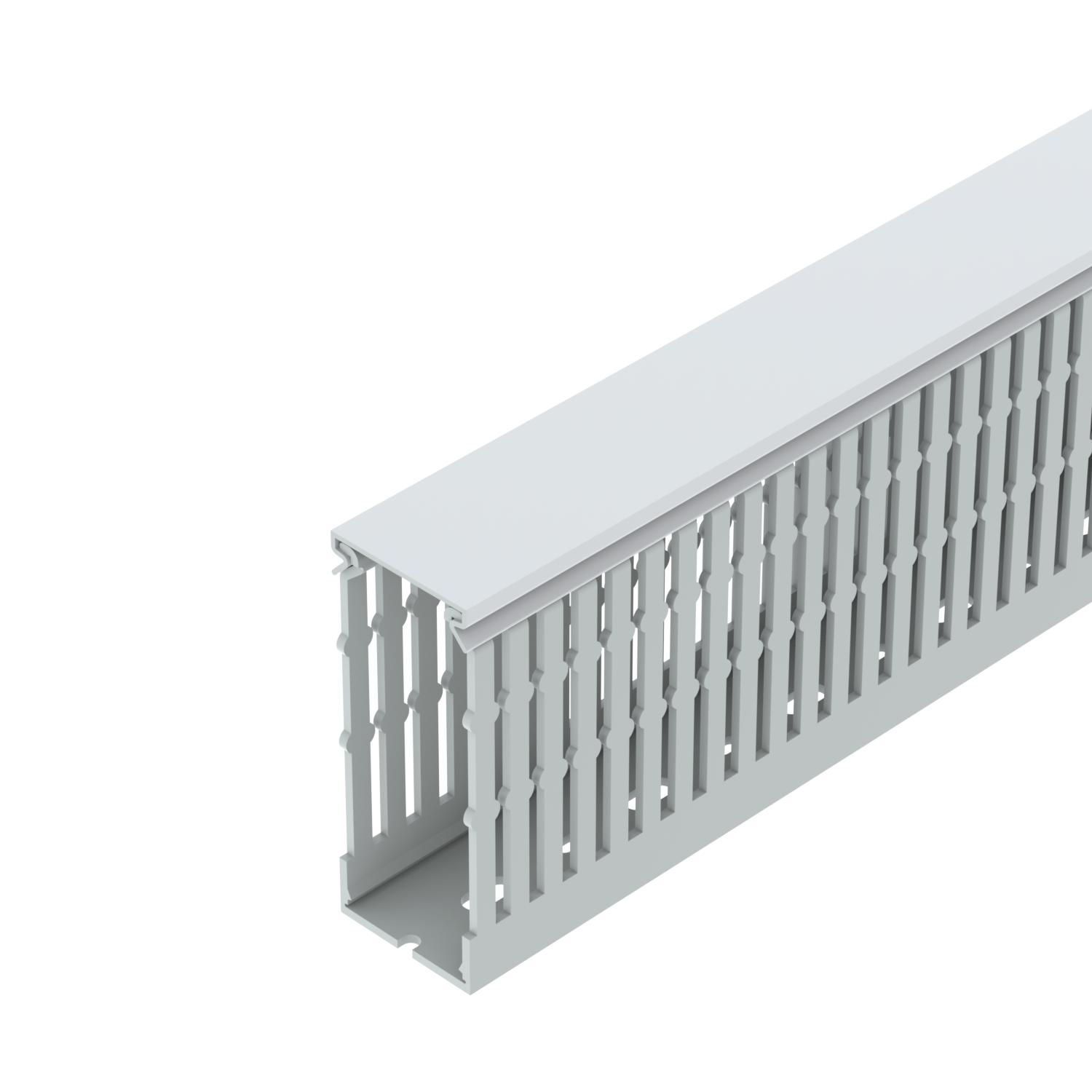

Wiring trunking, type LK4H N 10040

Item no. 6132570 | EAN 4012196719327

6132570 / LK4H N 10040
2000 mm
40 mm
100 mm
Base perforation
Light grey; RAL 7035
Product description

Product description

Halogen-free wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. With double-sided adhesive tape on the duct base as a mounting aid. Designed as a metric duct. Retainers are broken out without tools. Special lengths on request.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Light grey; RAL 7035
Creepage current-resistant yes
Fastening type Base perforation
Flexible no
Halogen-free yes

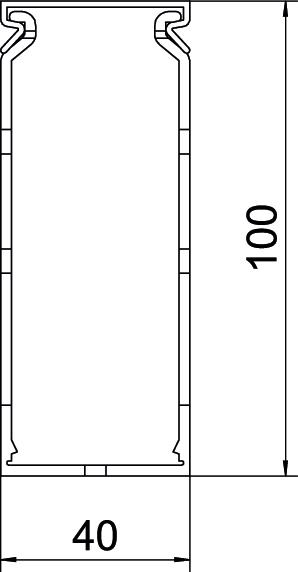

Height 100 mm
Length 2000 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -25 °C
Self-extinguishing yes
Side wall version Slotted
Slot spacing 5,5 mm
Slot width 4,5 mm
Usable cross-section 33,65 cm²
Width 40 mm
With cover yes
All types

All types

Types Length Width Height Fastening type Colour Item no. Quantity SSU
LK4H N 10040 2000 mm 40 mm 100 mm Base perforation Light grey; RAL 7035 6132570
24 m
