Wiring trunking, type LK4H N 80120 1000 | 120 | 80 | | Light grey; RAL 7035
morepic-1 morepic-2

Wiring trunking, type LK4H N 80120

Item no. 6132569 | EAN 4012196734078

6132569 / LK4H N 80120
1000 mm
120 mm
80 mm
Light grey; RAL 7035
Product description

Product description

Halogen-free wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. With double-sided adhesive tape on the duct base as a mounting aid. Designed as a metric duct. Retainers are broken out without tools. Special lengths on request.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Light grey; RAL 7035

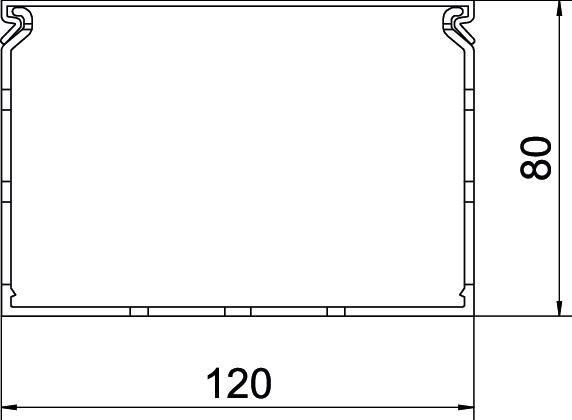

Dimension 2000x120x80
Height 80 mm
Length 1000 mm
Material Polycarbonate/Acrylnitrile-butadiene-styrene
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -25 °C
Usable cross-section 85,67 cm²
Width 120 mm
All types

All types

Types Length Width Height Colour Item no. Quantity SSU
LK4H N 80120 1000 mm 120 mm 80 mm Light grey; RAL 7035 6132569
16 m
