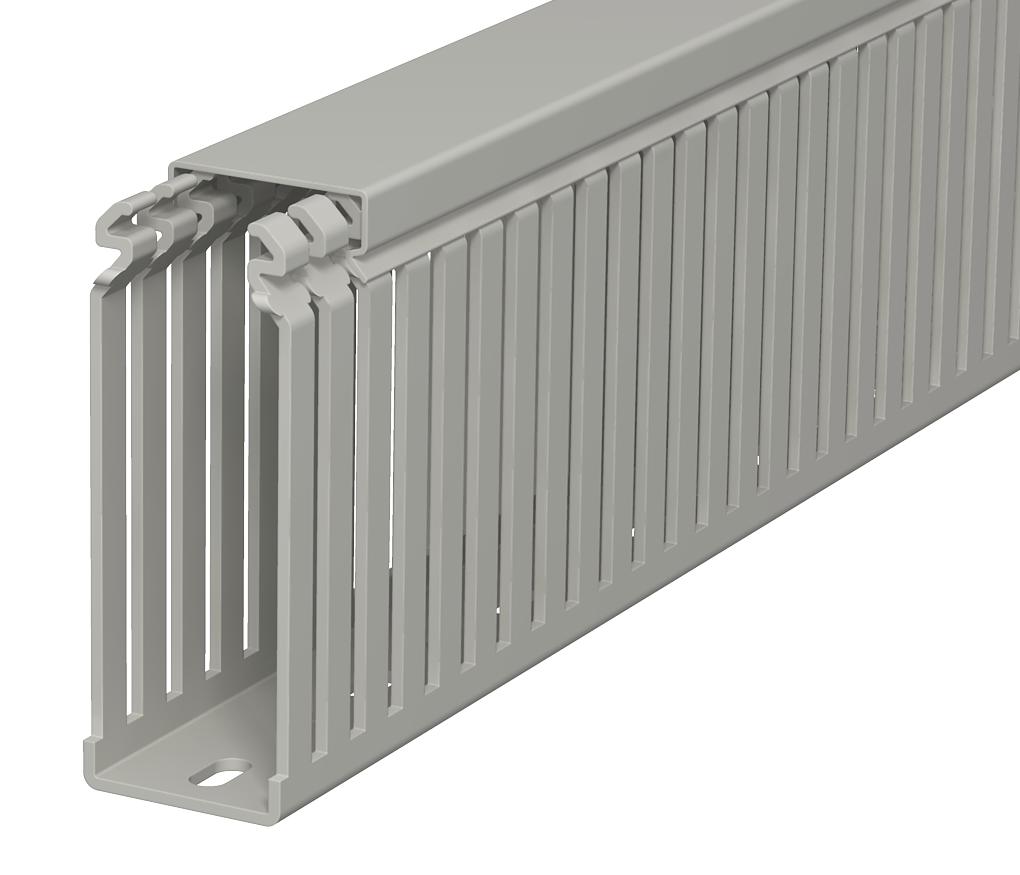

Wiring trunking, type LKV 10037 2000 | 37.5 | 100 | Base perforation | Stone grey; RAL 7030

Wiring trunking, type LKV 10037

Item no. 6178334 | EAN 4012196010806

Item no. / Types	6178334 / LKV 10037

Length	2000 mm

Width	37.5 mm

Height	100 mm

Fastening type	Base perforation

Colour	Stone grey; RAL 7030

Product description

Product description

Wiring duct according to DIN EN 50085-2-3, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a DIN duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.

Technical data

Technical data

Colour	Stone grey; RAL 7030
CO₂ Footprint (GWP) Cradle-to-Gate	1,5665 kg CO₂e / 1 Meter
Dimension	100x37x2000
Fastening type	Base perforation
Flexible	no
Halogen-free	no
Height	100 mm
Length	2000 mm
Material	Polyvinylchloride

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Self-extinguishing	yes
Side wall version	Slotted
Slot spacing	12,5 mm
Slot width	5 mm
Usable cross-section	29,91 cm²
Width	37,5 mm
With cover	yes

All types

All types

Types	Length	Width	Height	Fastening type	Colour	Item no.	Quantity	SSU
LKV 10037	2000 mm	37.5 mm	100 mm	Base perforation	Stone grey; RAL 7030	6178334	m	32 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Wire retainer for type LK4 and LK4 N	LK4 H	6178092	piece	100 piece
Wire retainer for type LKV and LKV N	LKV H	6178349	piece	100 piece
Cover LKV D 37	LKV D 37	6178506	m	24 m

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Spreading rivet, KSN 1	KSN1	6178520	piece	100 piece
Body-bound rivet, KSN 22	KSN22	6178525	piece	100 piece
Plastic rivet tool KNW1	KNW1	6178527	piece	1 piece
Plastic rivet tool KNW2	KNW2	6178529	piece	1 piece
Release pliers	AKZ2	6178533	piece	1 piece
Spacer	AH1	6178540	piece	100 piece
Spacer	AH2	6178542	piece	100 piece
