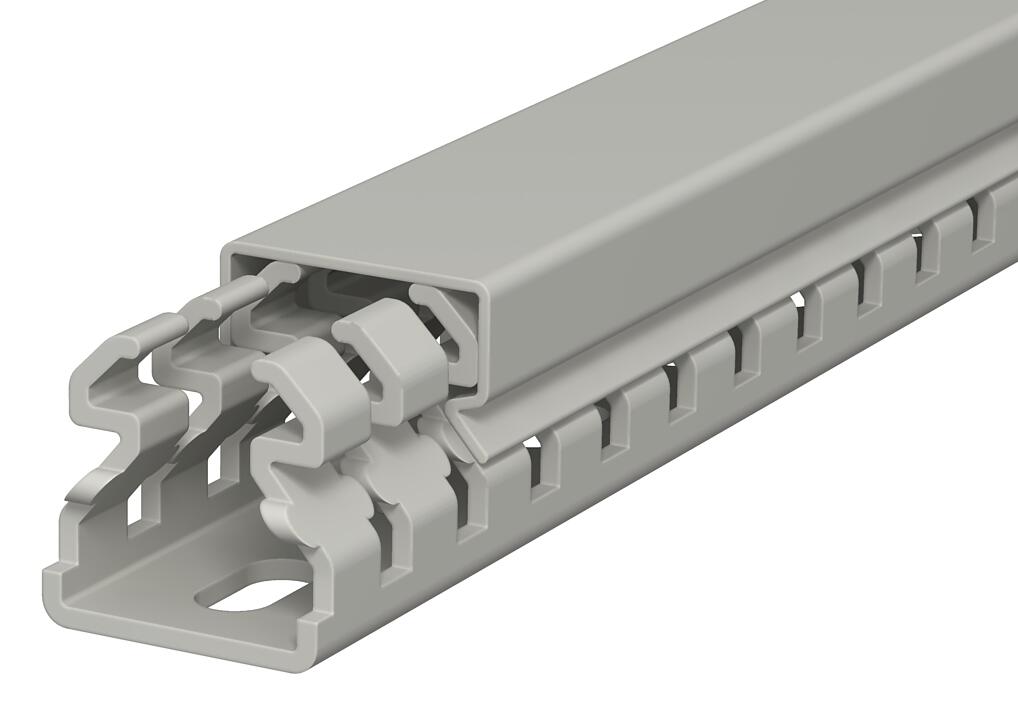

Wiring trunking, type LKV 25025

Item no. 6178302 | EAN 4012196009411

6178302 / LKV 25025
2000 mm
25 mm
25 mm
Base perforation
Stone grey; RAL 7030
Product description

Product description

Wiring duct according to DIN EN 50085-2-3, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a DIN duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Colour Stone grey; RAL 7030
Dimension 25x25x2000
Fastening type Base perforation
Flexible no
Halogen-free no
Material Polyvinylchloride
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Self-extinguishing yes
Side wall version Slotted
Slot spacing 12,5 mm
Slot width 5 mm
Usable cross-section 3,41 cm²
With cover yes

Dimensions

Height 25 mm
Length 2000 mm
Width 25 mm
All types

All types

Types Length Width Height Fastening type Colour Item no. Quantity SSU
LKV 25025 2000 mm 25 mm 25 mm Base perforation Stone grey; RAL 7030 6178302
32 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Wire retainer for type LKV and LKV N Wire retainer for type LKV and LKV N LKV H 6178349
100 piece

Mounting accessories

Products Types Item no. Quantity SSU
Spreading rivet, KSN 1 Spreading rivet, KSN 1 KSN1 6178520
100 piece
Body-bound rivet, KSN 22 Body-bound rivet, KSN 22 KSN22 6178525
100 piece
Plastic rivet tool KNW1 Plastic rivet tool KNW1 KNW1 6178527
1 piece
Plastic rivet tool KNW2 Plastic rivet tool KNW2 KNW2 6178529
1 piece
Release pliers Release pliers AKZ2 6178533
1 piece
Spacer Spacer AH1 6178540
100 piece
Spacer Spacer AH2 6178542
100 piece
