Wiring trunking, type LKVH 50037 2000 | 37.5 | 50 | Base perforation | Light grey; RAL 7035

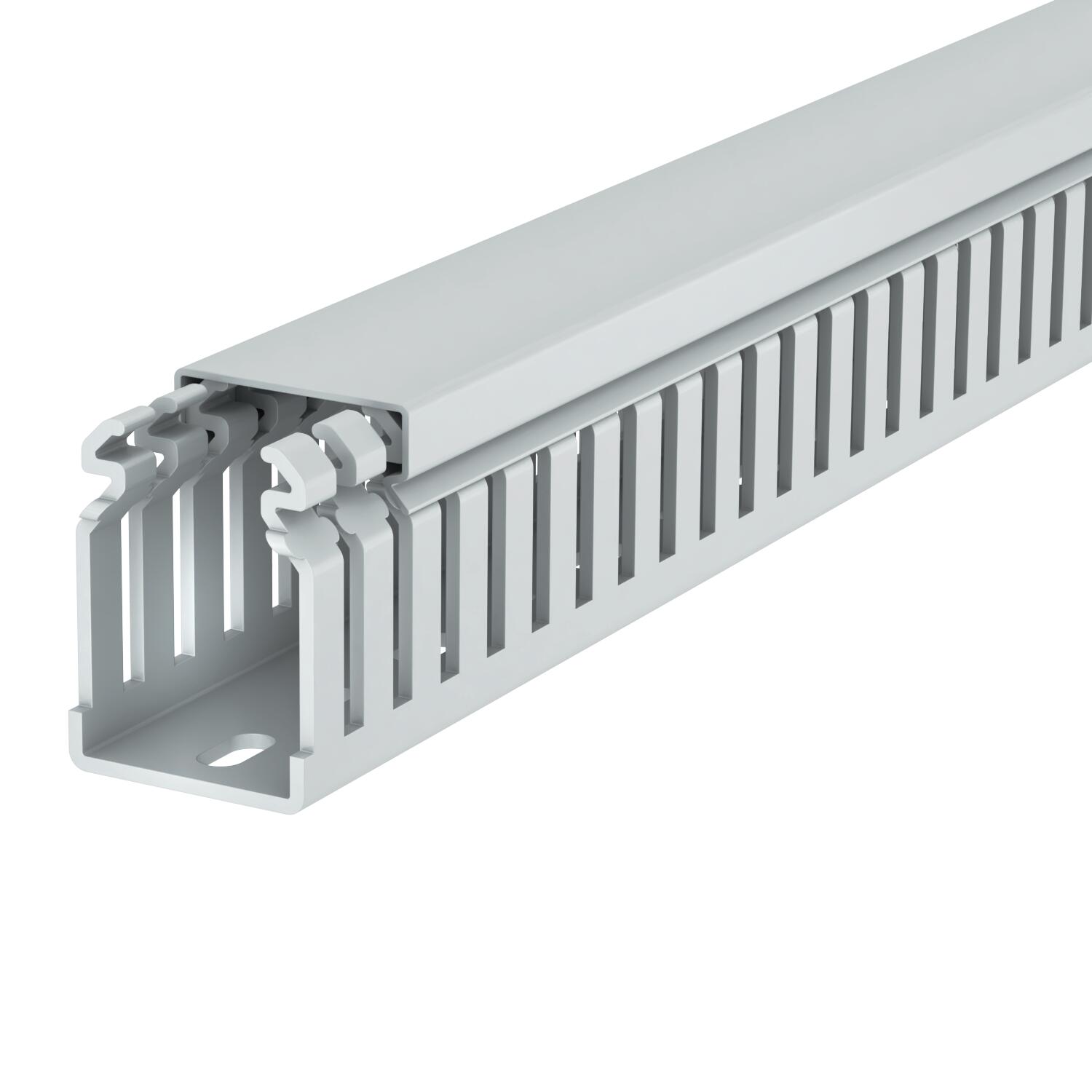

Wiring trunking, type LKVH 50037

Item no. 6178582 | EAN 4012195803744

Item no. / Types	6178582 / LKVH 50037

Length	2000 mm

Width	37.5 mm

Height	50 mm

Fastening type	Base perforation

Colour	Light grey; RAL 7035

Product description

Product description

Halogen-free wiring duct according to DIN EN 50085-2-3, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a DIN duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tested to DIN EN 50085-2-3. Special lengths on request.

Technical data

Technical data

Colour	Light grey; RAL 7035
CO₂ Footprint (GWP) Cradle-to-Gate	2,546 kg CO₂e / 1 Meter
Creepage current-resistant	yes
Dimension	50x37,5x2000
Fastening type	Base perforation
Flexible	no
Halogen-free	yes
Height	50 mm
Length	2000 mm
Material	Polycarbonate/Acrylnitrile-butadiene-styrene

Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-25 °C
Self-extinguishing	yes
Side wall version	Slotted
Slot spacing	12,5 mm
Slot width	5 mm
Usable cross-section	14,24 cm²
Width	37,5 mm
With cover	yes

All types

All types

Types	Length	Width	Height	Fastening type	Colour	Item no.	Quantity	SSU
LKVH 50037	2000 mm	37.5 mm	50 mm	Base perforation	Light grey; RAL 7035	6178582	m	48 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Wire retainer for type LKV and LKV N	LKV H	6178349	piece	100 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Spreading rivet, KSN 1	KSN1	6178520	piece	100 piece
Body-bound rivet, KSN 22	KSN22	6178525	piece	100 piece
Plastic rivet tool KNW1	KNW1	6178527	piece	1 piece
Plastic rivet tool KNW2	KNW2	6178529	piece	1 piece
