Wiring trunking, type LKVH N 75050 2000 | 50 | 75 | Base perforation | Light grey; RAL 7035

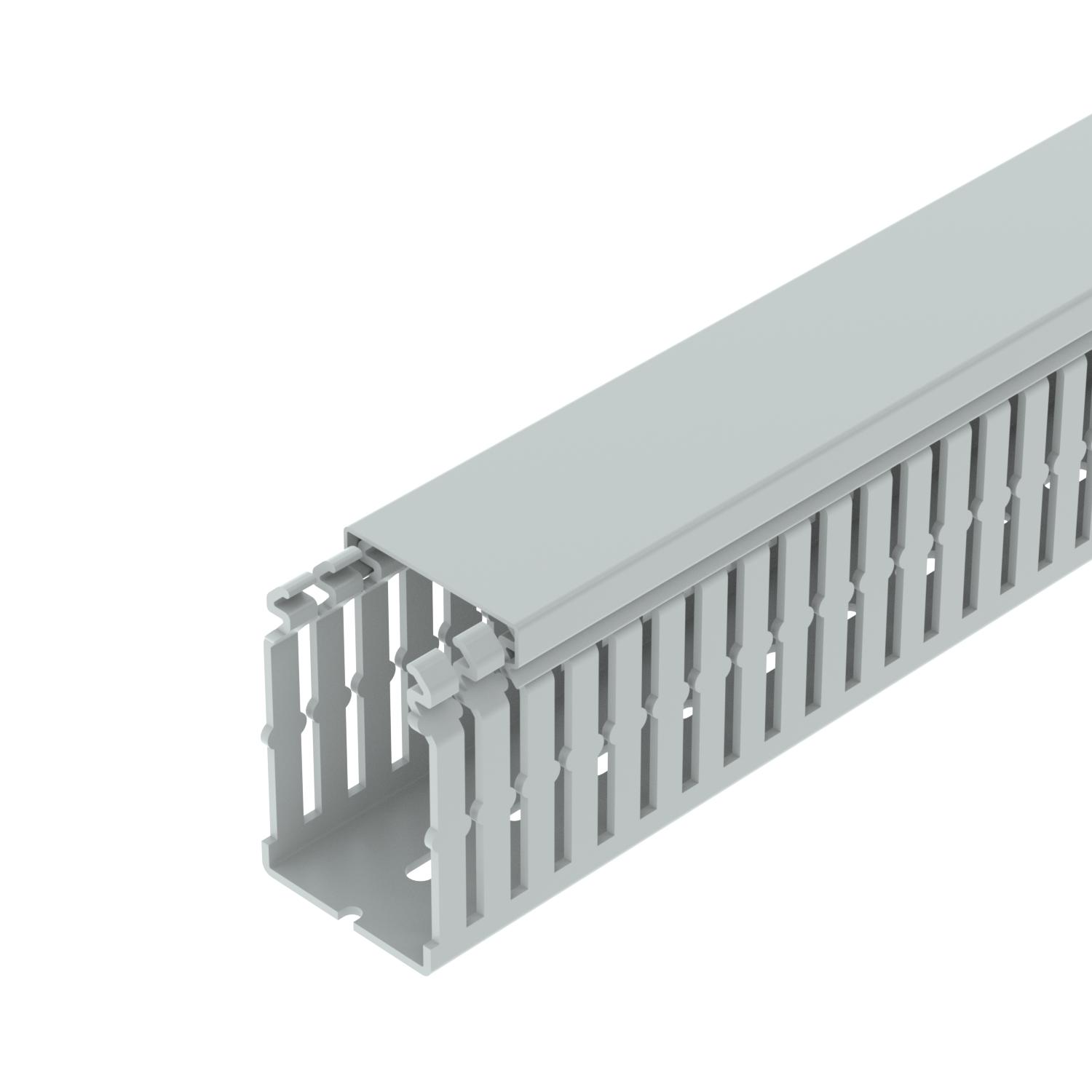

Wiring trunking, type LKVH N 75050

Item no. 6178556 | EAN 4012195803768

Item no. / Types	6178556 / LKVH N 75050

Length	2000 mm

Width	50 mm

Height	75 mm

Fastening type	Base perforation

Colour	Light grey; RAL 7035

Product description

Product description

Halogen-free wiring duct according to DIN EN 50085-2-3, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a DIN duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tapering in the side slots prevents the cables from falling out. Tested to DIN EN 50085-2-3. Special lengths on request.

Technical data

Technical data

Colour	Light grey; RAL 7035
CO₂ Footprint (GWP) Cradle-to-Gate	3,993 kg CO₂e / 1 Meter
Creepage current-resistant	yes

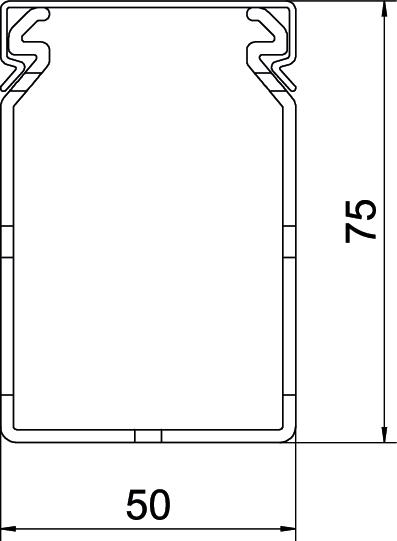

Dimension	75x50x2000
Fastening type	Base perforation
Flexible	no
Halogen-free	yes
Height	75 mm
Length	2000 mm
Material	Polycarbonate/Acrylnitrile-butadiene-styrene

Permitted temperature range, max.	90 °C
Permitted temperature range, min.	-25 °C
Self-extinguishing	yes
Side wall version	Slotted
Slot spacing	12,5 mm
Slot width	5 mm
Usable cross-section	30,45 cm²
Width	50 mm
With cover	yes

All types

All types

Types	Length	Width	Height	Fastening type	Colour	Item no.	Quantity	SSU
LKVH N 75050	2000 mm	50 mm	75 mm	Base perforation	Light grey; RAL 7035	6178556	m	24 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Wire retainer for type LKV and LKV N	LKV H	6178349	piece	100 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Spreading rivet, KSN 1	KSN1	6178520	piece	100 piece
Body-bound rivet, KSN 22	KSN22	6178525	piece	100 piece
Plastic rivet tool KNW1	KNW1	6178527	piece	1 piece
Plastic rivet tool KNW2	KNW2	6178529	piece	1 piece
