Wiring trunking VF 10, flexible 500 | 11 | 14 | Base perforation | Pure white; RAL 9010
morepic-1 morepic-2

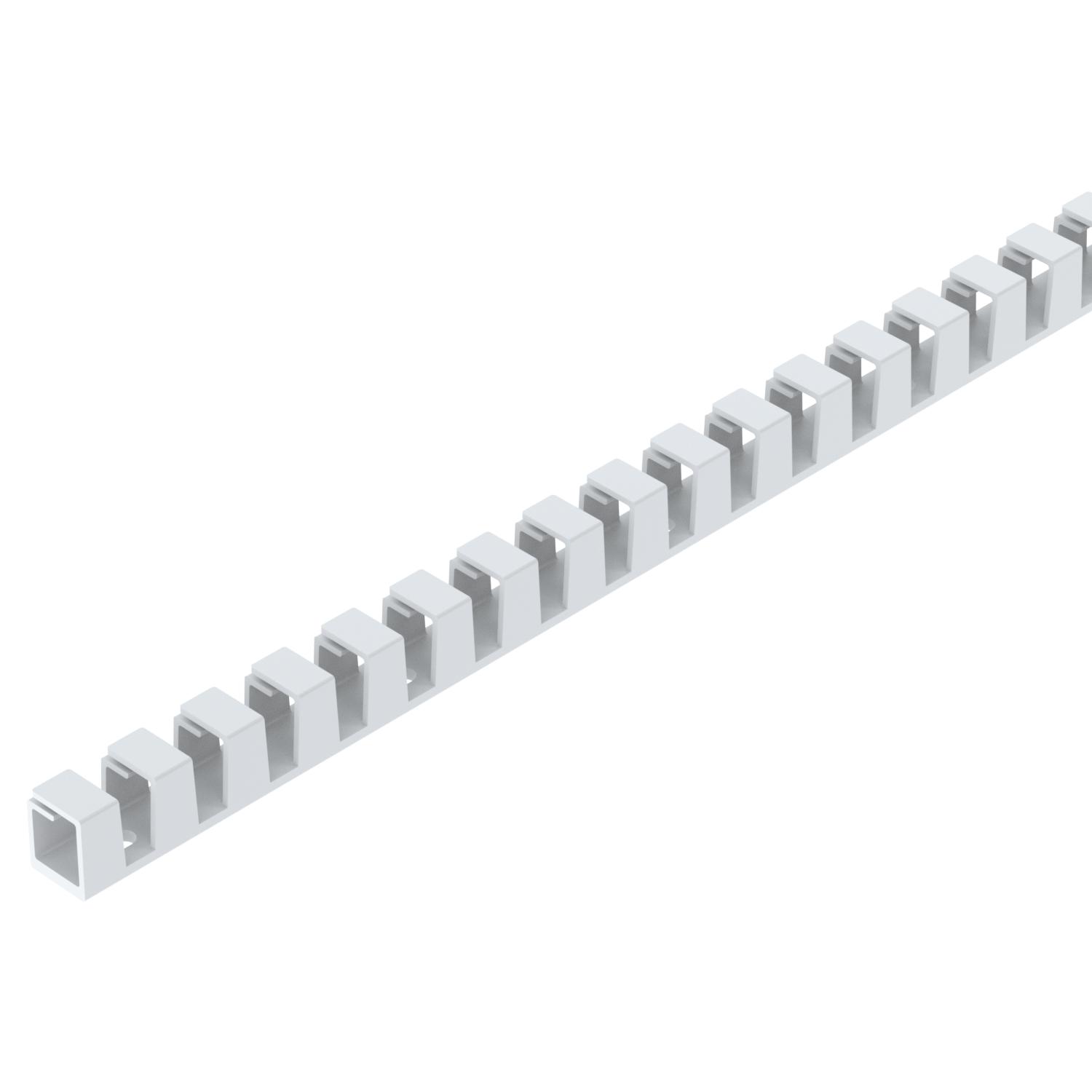

Wiring trunking VF 10, flexible

Item no. 6132600 | EAN 4012196727698

500 mm
11 mm
14 mm
Pure white; RAL 9010
Product description
Product description
Flexible wiring trunking for horizontal and vertical routing in the switchgear cabinet.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010
Creepage current-resistant yes
Diameter 10 mm
Fastening type Base perforation
Flexible yes
Halogen-free yes
Height 14 mm
Length 500 mm
Material Polypropylene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Self-extinguishing yes
Side wall version Slotted
Slot spacing 13 mm
Slot width 8 mm
Usable cross-section 0,73 cm²
Width 11 mm
With cover no
All types

All types

Types Length Width Height Fastening type Colour Item no. Quantity SSU
VF 10 rws 500 mm 11 mm 14 mm Base perforation Pure white; RAL 9010 6132600
100 piece
VF 10KB rws 500 mm 11 mm 14 mm Self-adhesive and base perforation Pure white; RAL 9010 6132601
100 piece
Downloads

Download

REACH Declaration of conformity VF 10 rws / 6132600 , 0.12MB , pdf
Download
RoHS Declaration of conformity VF 10 rws / 6132600 , 0.12MB , pdf
Download

No invitation to tender text is available for this product.
