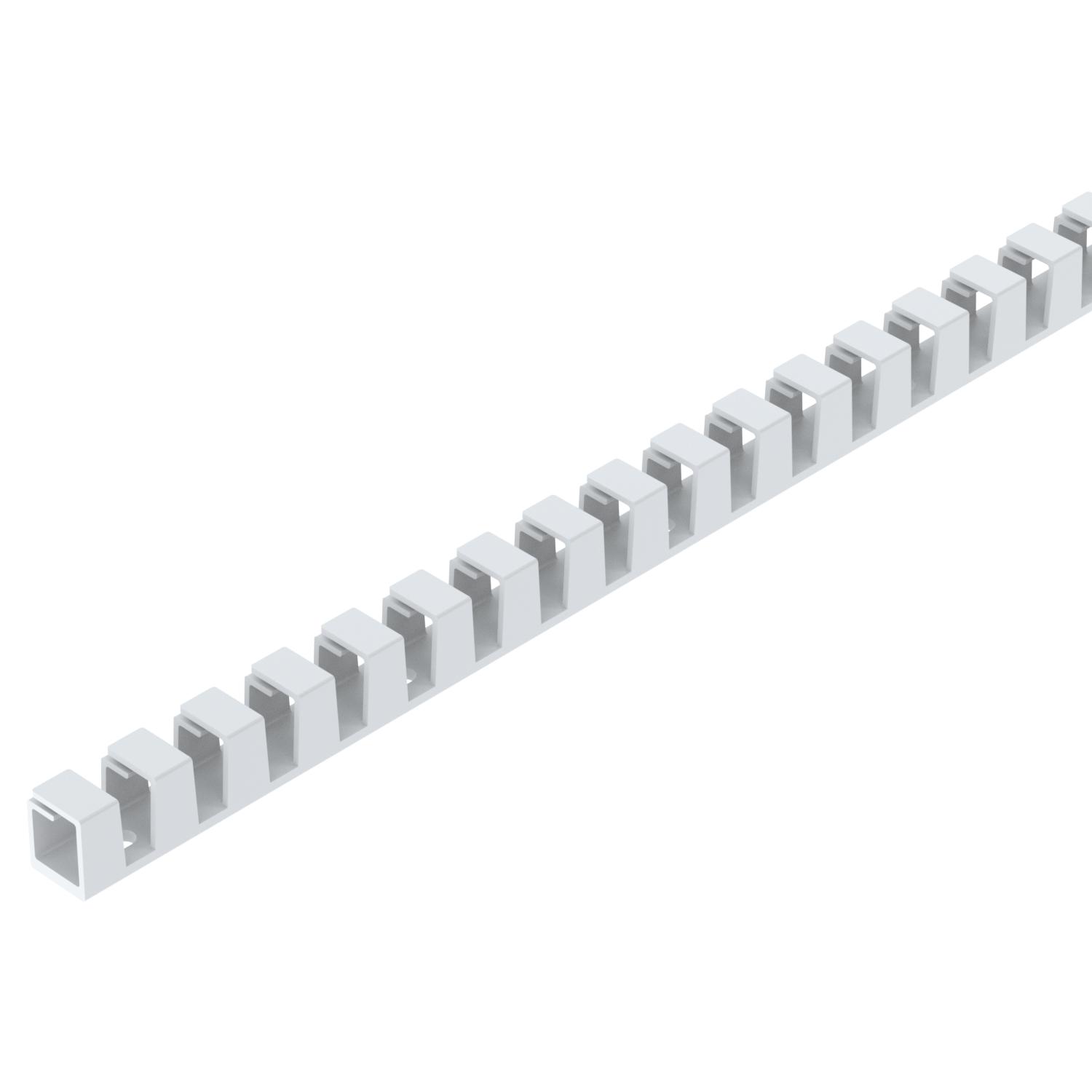

Wiring trunking VF 10, flexible

Item no. / Types

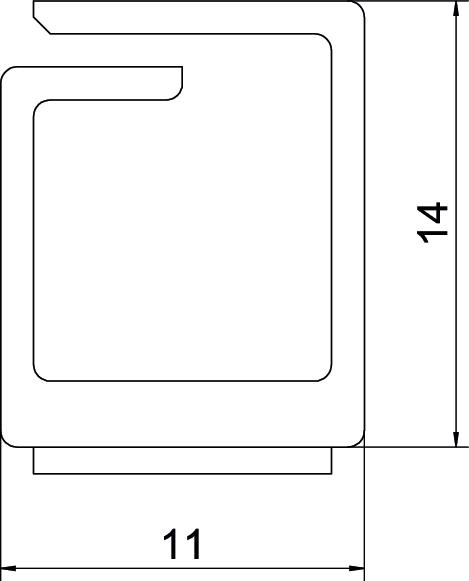

Length	500 mm

Width	11 mm

Height	14 mm

Fastening type

Colour	Pure white; RAL 9010

Product description

Product description

Flexible wiring trunking for horizontal and vertical routing in the switchgear cabinet.

Technical data

Colour	Pure white; RAL 9010
Creepage current-resistant	yes
Diameter	10 mm
Fastening type	Self-adhesive and base perforation
Flexible	yes
Halogen-free	yes
Material	Polypropylene
Permitted temperature range, max.	60 °C

Permitted temperature range, min.	-5 °C
Self-extinguishing	yes
Side wall version	Slotted
Slot spacing	13 mm
Slot width	8 mm
Usable cross-section	0,73 cm²
With cover	no

Height	14 mm
Length	500 mm

Width	11 mm

All types

Types	Length	Width	Height	Fastening type	Colour	Item no.	Quantity	SSU
VF 10 rws	500 mm	11 mm	14 mm	Base perforation	Pure white; RAL 9010	6132600	piece	1 piece
VF 10KB rws	500 mm	11 mm	14 mm	Self-adhesive and base perforation	Pure white; RAL 9010	6132601	piece	1 piece
