Wiring trunking VF 20, flexible 500 | 24 | 24 | Base perforation | Pure white; RAL 9010
morepic-1 morepic-2

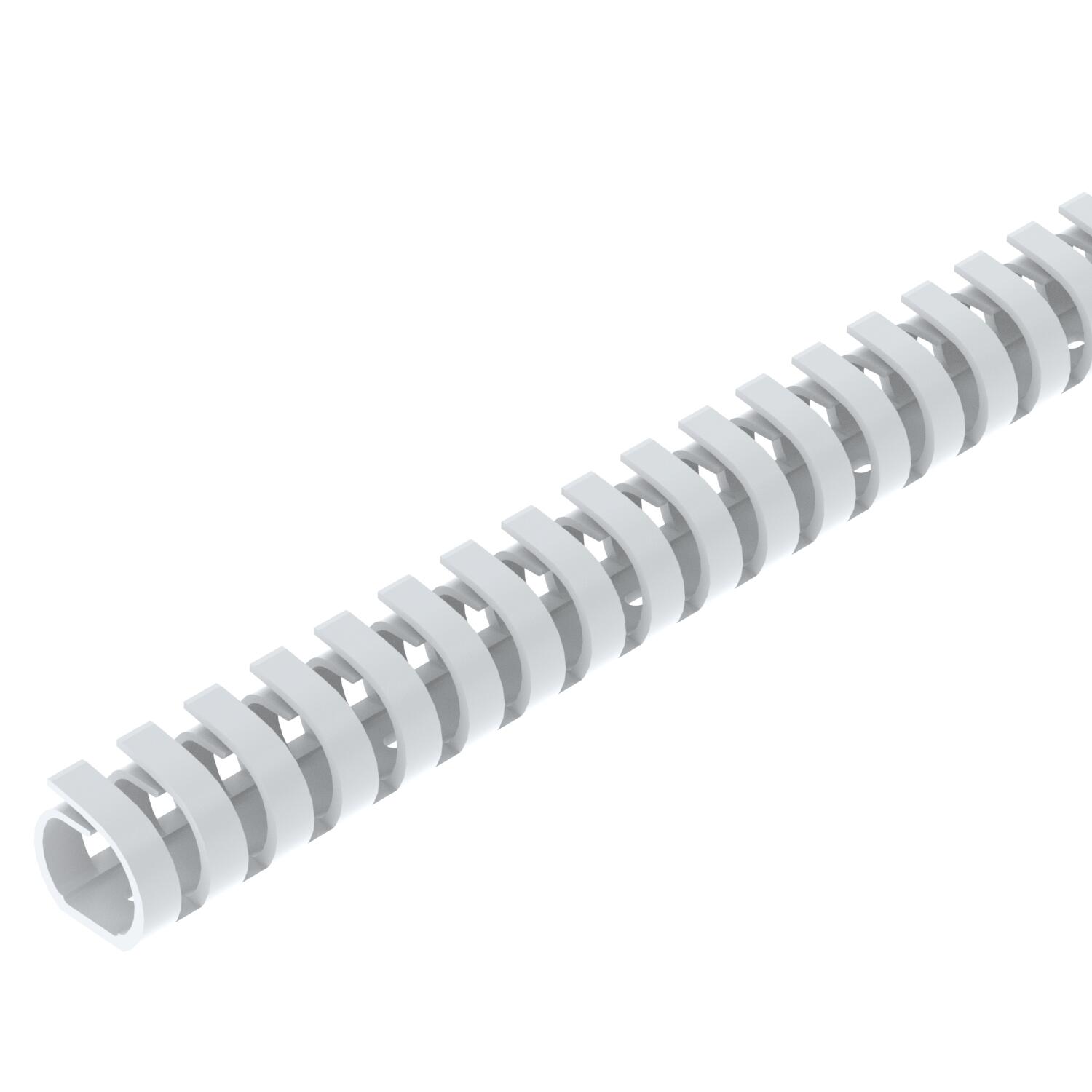

Wiring trunking VF 20, flexible

Item no. 6132603 | EAN 4012196727711

500 mm
24 mm
24 mm
Pure white; RAL 9010
Product description

Product description

Flexible wiring duct for horizontal and vertical routing in the switchgear cabinet.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA Konformitätserklärung
Technical data

Technical data

Colour Pure white; RAL 9010
Creepage current-resistant yes
Fastening type Base perforation
Flexible yes
Halogen-free yes
Material Polypropylene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Self-extinguishing yes
Side wall version Slotted
Slot spacing 13 mm
Slot width 8 mm
Usable cross-section 3,6 cm²
With cover no

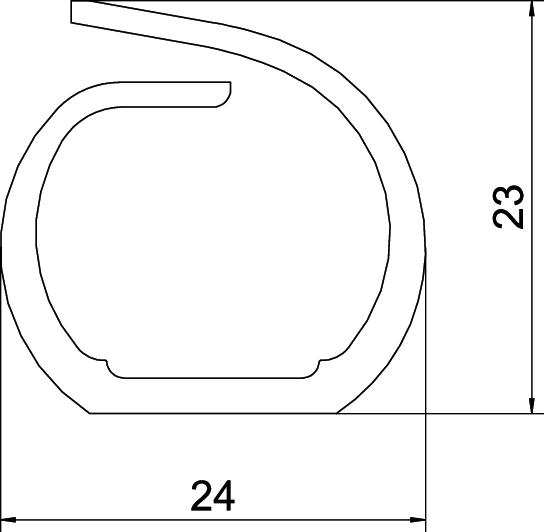

Dimensions

Height 24 mm
Length 500 mm
Width 24 mm
All types

All types

Types Length Width Height Fastening type Colour Item no. Quantity SSU
VF 20 rws 500 mm 24 mm 24 mm Base perforation Pure white; RAL 9010 6132603
1 piece
VF 20KB rws 500 mm 24 mm 24 mm Self-adhesive and base perforation Pure white; RAL 9010 6132604
1 piece
Downloads

Download

Declaration of conformity VF 20 rws / 6132603 , 0.13MB , pdf
Download
UK Declaration of Conformity VF 20 rws / 6132603 , 0.14MB , pdf
Download
REACH Declaration of conformity VF 20 rws / 6132603 , 0.12MB , pdf
Download
RoHS Declaration of conformity VF 20 rws / 6132603 , 0.12MB , pdf
Download

No invitation to tender text is available for this product.
