Wiring trunking VF 20, flexible

Item no. / Types

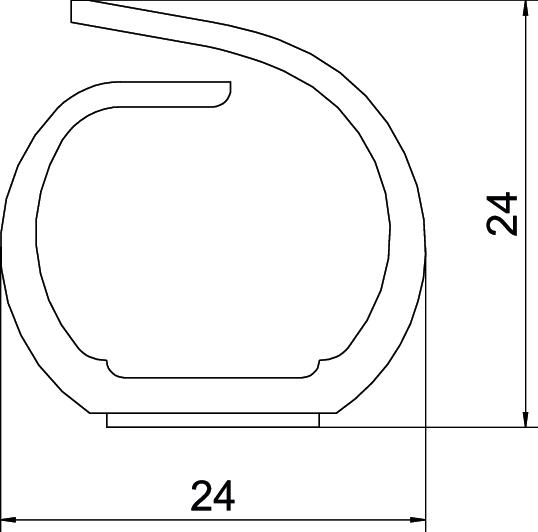

Length	500 mm

Width	24 mm

Height	24 mm

Fastening type

Colour	Pure white; RAL 9010

Product description

Product description

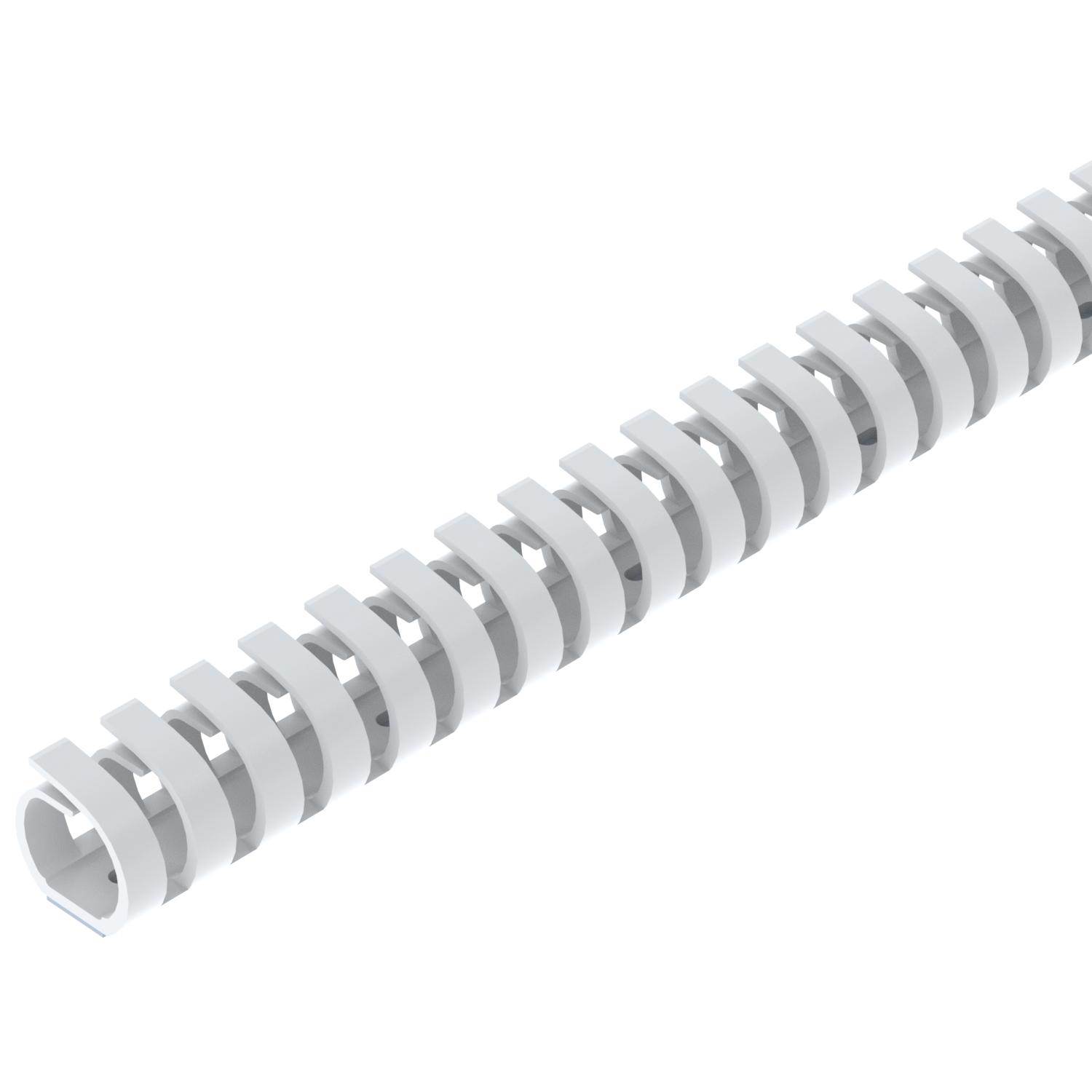

Flexible wiring duct with double-sided adhesive tape as mounting aid for mounting in the switchgear cabinet.

Technical data

Colour	Pure white; RAL 9010
Creepage current-resistant	yes
Diameter	20 mm
Fastening type	Self-adhesive and base perforation
Flexible	yes
Halogen-free	yes
Height	24 mm
Length	500 mm
Material	Polypropylene

Permitted temperature range, max.	60 °C
Permitted temperature range, min.	-5 °C
Self-extinguishing	yes
Side wall version	Slotted
Slot spacing	13 mm
Slot width	8 mm
Usable cross-section	3,6 cm²
Width	24 mm
With cover	no

All types

All types

Types	Length	Width	Height	Fastening type	Colour	Item no.	Quantity	SSU
VF 20 rws	500 mm	24 mm	24 mm	Base perforation	Pure white; RAL 9010	6132603	piece	70 piece
VF 20KB rws	500 mm	24 mm	24 mm	Self-adhesive and base perforation	Pure white; RAL 9010	6132604	piece	70 piece
