- Product description
-
Product description

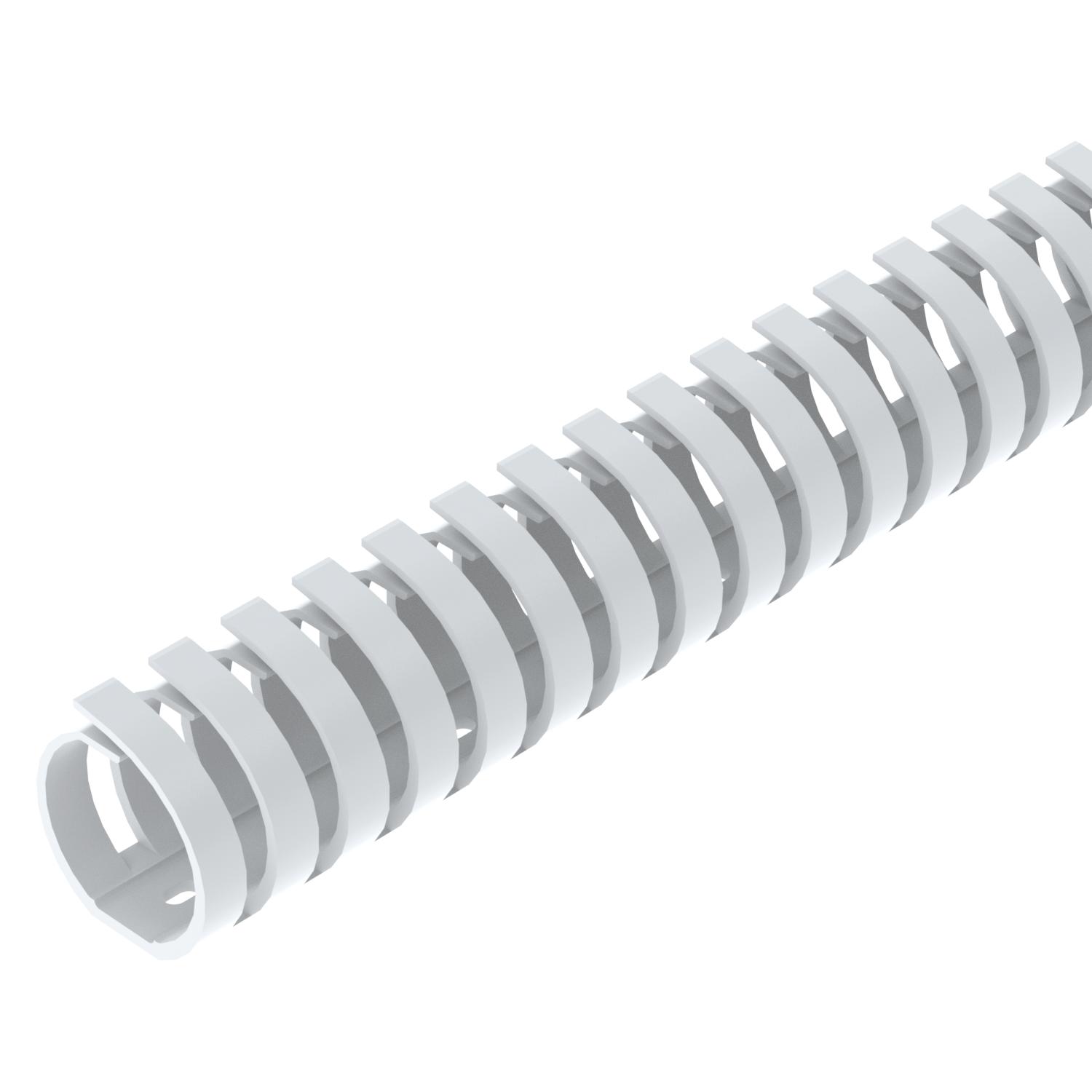

Flexible wiring trunking for horizontal and vertical routing in the switchgear cabinet.
-
- Technical data
-
Technical data
Colour Pure white; RAL 9010 Creepage current-resistant yes Diameter 30 mm Fastening type Base perforation Flexible yes Halogen-free yes Material Polypropylene Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Self-extinguishing yes Side wall version Slotted Slot spacing 13 mm Slot width 8 mm Usable cross-section 8,1 cm² With cover no Dimensions

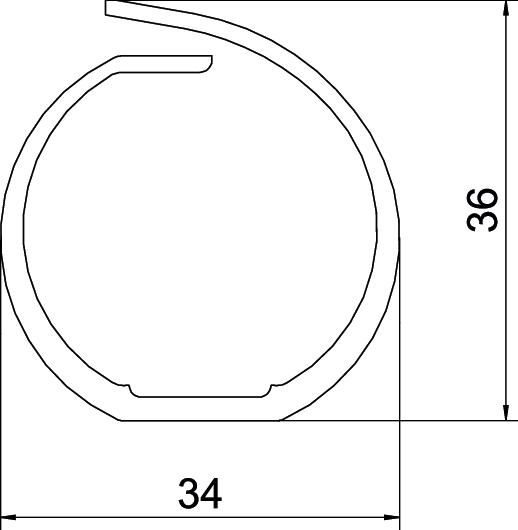

Height 36 mm Length 500 mm Width 34 mm - All types
- Downloads
-
Data sheet VF 30 rws / 6132606 , 0.21MB , pdfDeclaration of conformity VF 30 rws / 6132606 , 0.16MB , pdfREACH Declaration of conformity VF 30 rws / 6132606 , 0.12MB , pdfRoHS Declaration of conformity VF 30 rws / 6132606 , 0.12MB , pdf
