Wiring trunking VF 40, flexible 500 | 45 | 48 | Self-adhesive and base perforation | Pure white; RAL 9010
morepic-1 morepic-2

Wiring trunking VF 40, flexible

Item no. 6132610 | EAN 4012196727766

500 mm
45 mm
48 mm
Pure white; RAL 9010
Product description

Product description

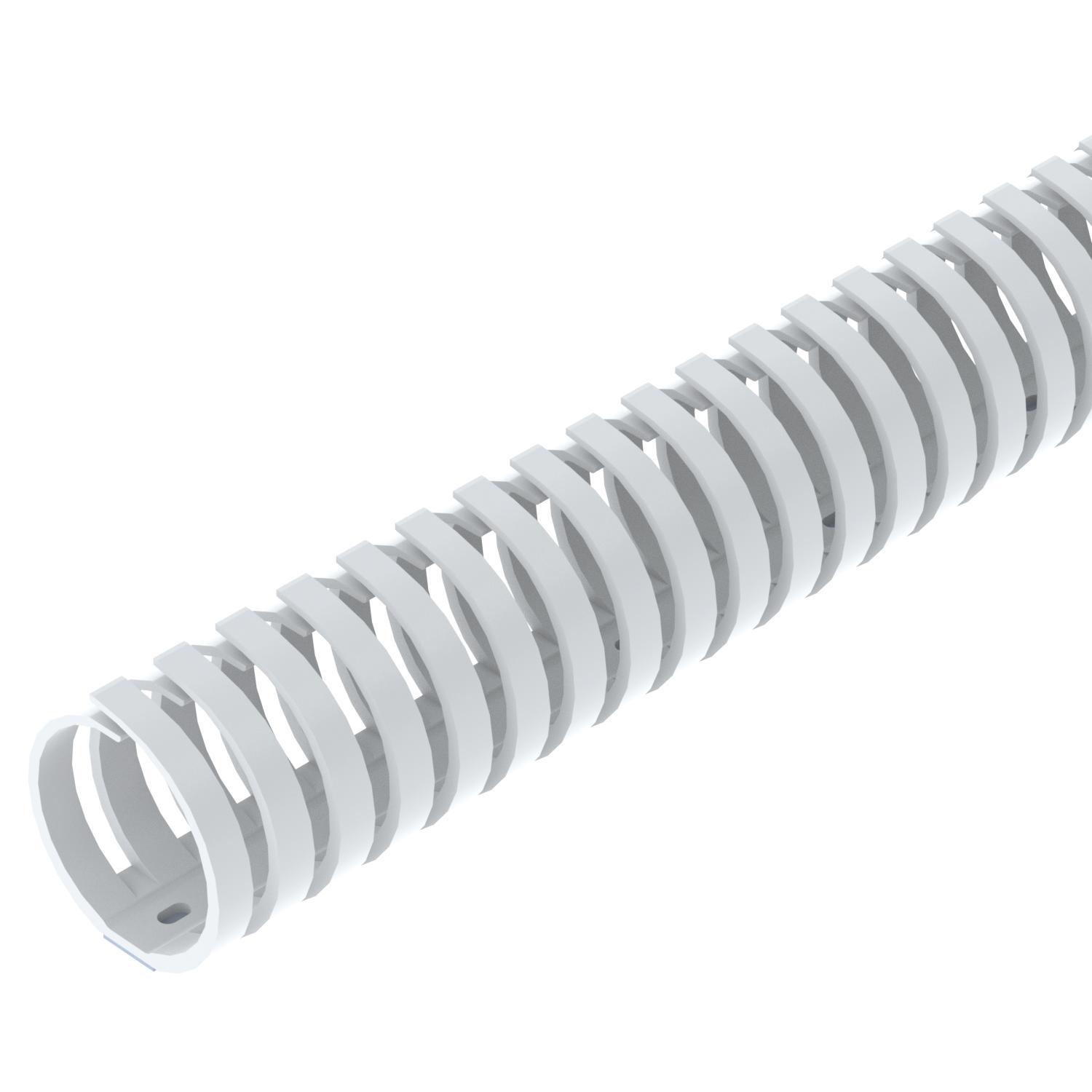

Flexible wiring trunking for horizontal and vertical routing in the switchgear cabinet.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Pure white; RAL 9010
Creepage current-resistant yes
Diameter 40 mm
Fastening type Self-adhesive and base perforation
Flexible yes
Halogen-free yes
Material Polypropylene
Permitted temperature range, max. 60 °C
Permitted temperature range, min. -5 °C
Self-extinguishing yes
Side wall version Slotted
Slot spacing 13 mm
Slot width 8 mm
Usable cross-section 14,4 cm²
With cover no

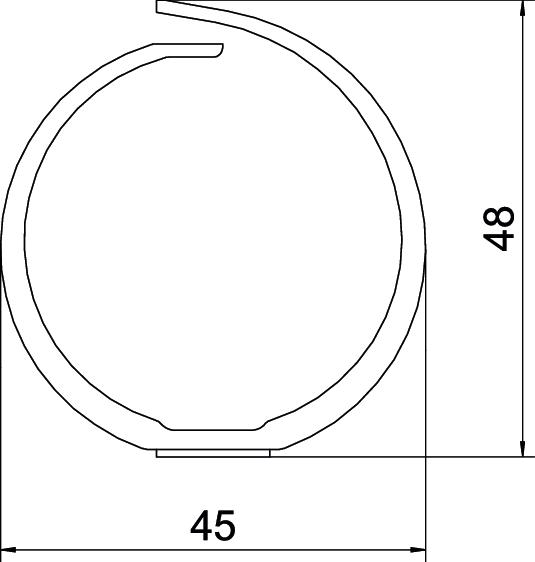

Dimensions

Height 48 mm
Length 500 mm
Width 45 mm
All types

All types

Types Length Width Height Fastening type Colour Item no. Quantity SSU
VF 40 rws 500 mm 45 mm 48 mm Base perforation Pure white; RAL 9010 6132609
1 piece
VF 40KB rws 500 mm 45 mm 48 mm Self-adhesive and base perforation Pure white; RAL 9010 6132610
1 piece
Downloads

Download

REACH Declaration of conformity VF 40KB rws / 6132610 , 0.12MB , pdf
Download
RoHS Declaration of conformity VF 40KB rws / 6132610 , 0.12MB , pdf
